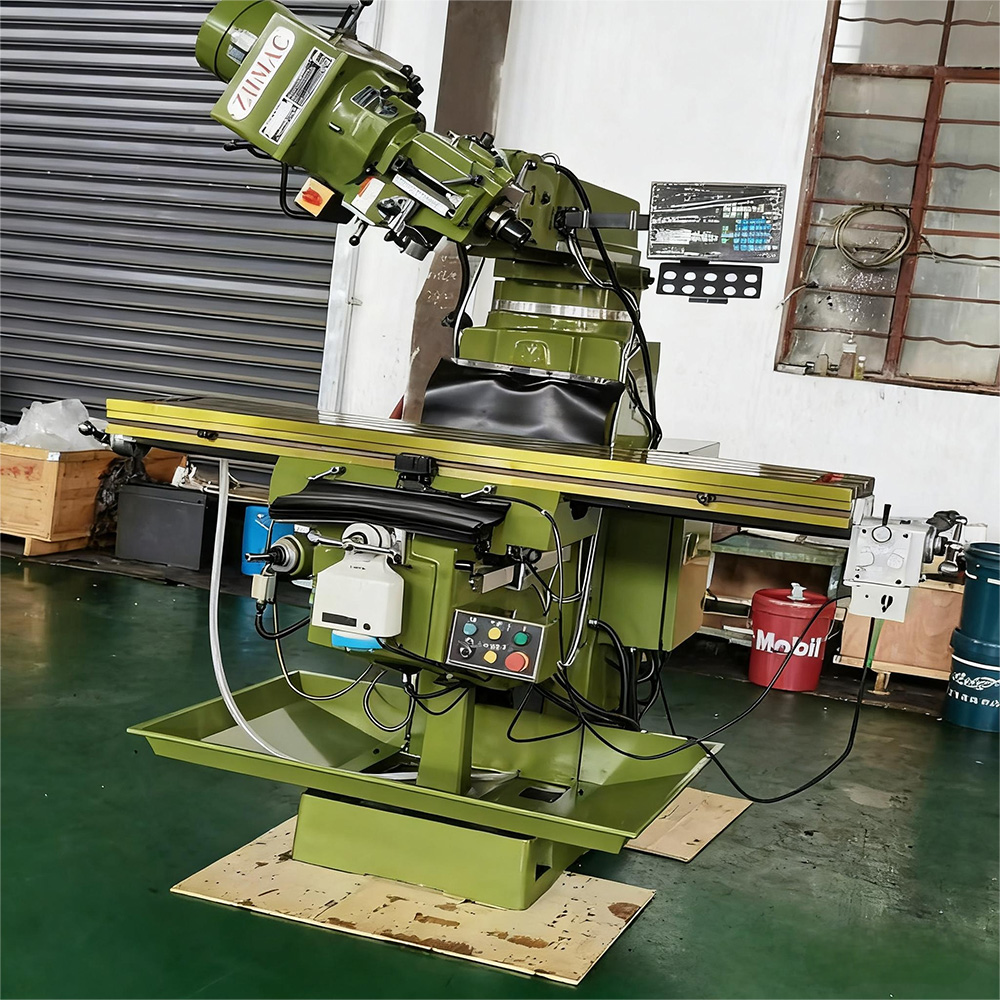

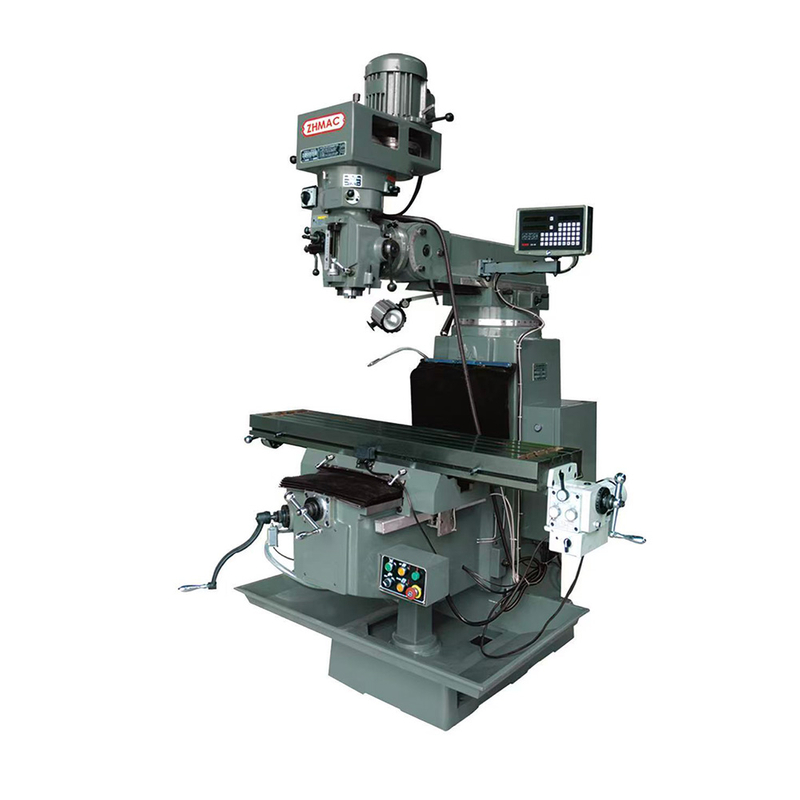

The X6325T MIilling Machine is a highly efficient piece of metal-working equipment designed for complex industrial applications. It is engineered to process various horizontal and vertical planes, grooves, and complex curved surfaces with outstanding accuracy. Engineered with robust materials, our horizontal mill ensures excellent stability even during heavy-duty cutting operations. This machine significantly enhances processing efficiency while maintaining strict tolerances, making it a reliable choice for modern industrial upgrading. By integrating advanced engineering techniques, it provides a solid foundation for continuous, high-volume manufacturing environments.
Project | Unit | X6325T | X6330 | X6330A | X6332 |
X-axis stroke | mm | 800(900) | 900 | 900 | 1100 |
Y-axis stroke | mm | 400 | 400 | 425 | 425 |
Z-axis stroke | mm | 405 | 450 | 450 | 450 |
Table area | mm | 254 × 1270 | 305 × 1370 | 305 × 1370 | 320 × 1670 |
Spindle lifting sleeve travel | mm | 127 | 127 | 127 | 127 |
Spindle taper | mm | R8∕NT30 | NT40 | ||
Spindle motor | HP | 3HP∕2.2KW | 5HP ∕3.7KW | ||
Spindle center to column | mm | 190-685 | 170-720 | 170-720 | 170-760 |
Distance from nose end of main shaft to workbench | mm | 0-428 | 0-530 | 0-530 | 0-580 |
Front and back rotation angle of head | Degree | ±450 | ±450 | ±450 | ±45 |
Left and right rotation angle of head | Degree | ±90° | ±90° | ±90° | ±90° |
Extend arm travel | mm | 500 | 510 | 550 | 500 |
Spindle speed | rpm | 50HZ 65-4500 60HZ 80-5440 | 80-2850 (10段) | ||
(XYZ) Guide rail Shape | ▲ ■▲ | ▲ ■■ | ▲ ■■ | ▲ ■■ | |
Fast lifting motor | kw | - | 1.1 | 1.1 | 1.5 |
IUbriCation system | Manual oiling | Manual/Automatic oiling | |||
Mechanical weight | kg | 1200 | 1450 | 1600 | 1700 |
Appearance dimension (L x W x H) | mm | 1700x1680x2100 | 1800x1680x2200 | 1800×1900×2400 | 2100×1900×2720 |

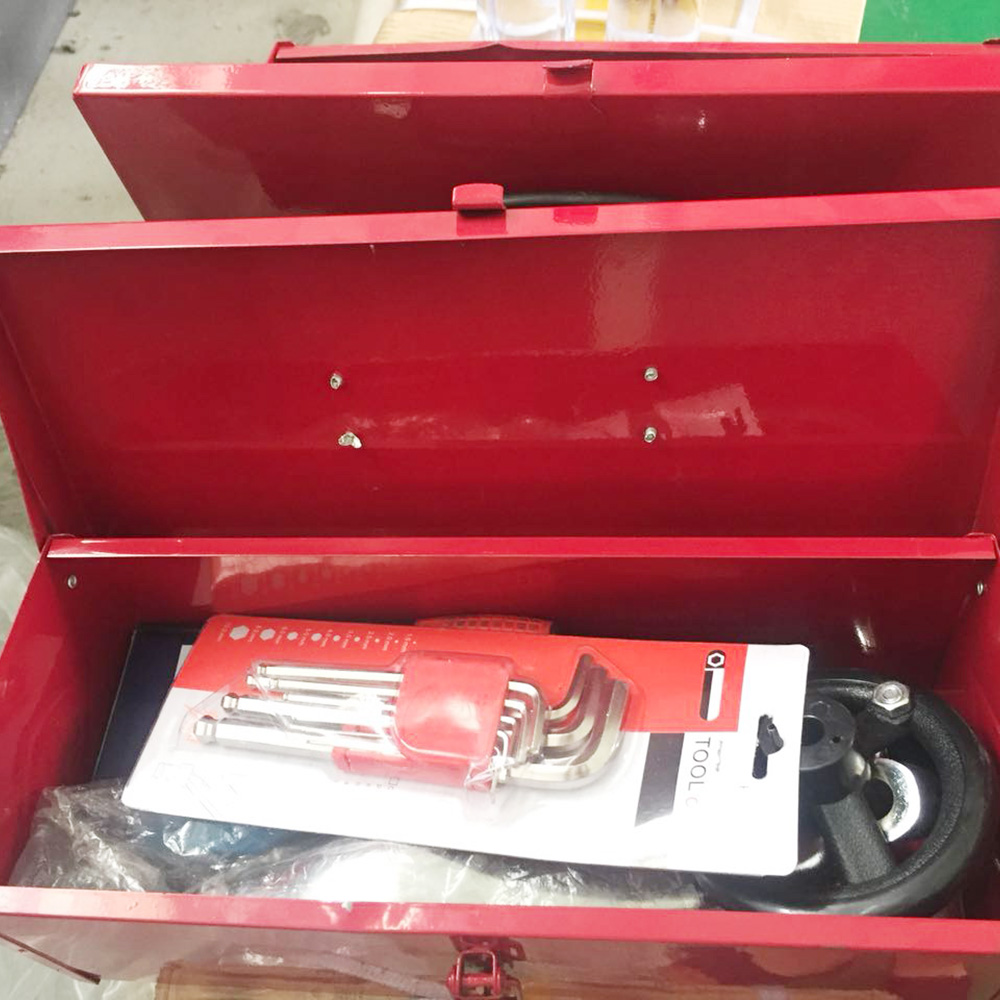

Attached accessories: quartz lamp, toolbox, screwdriver, wrench, oil pot, pull rod, instruction, protective glue, lifting handle | |||||

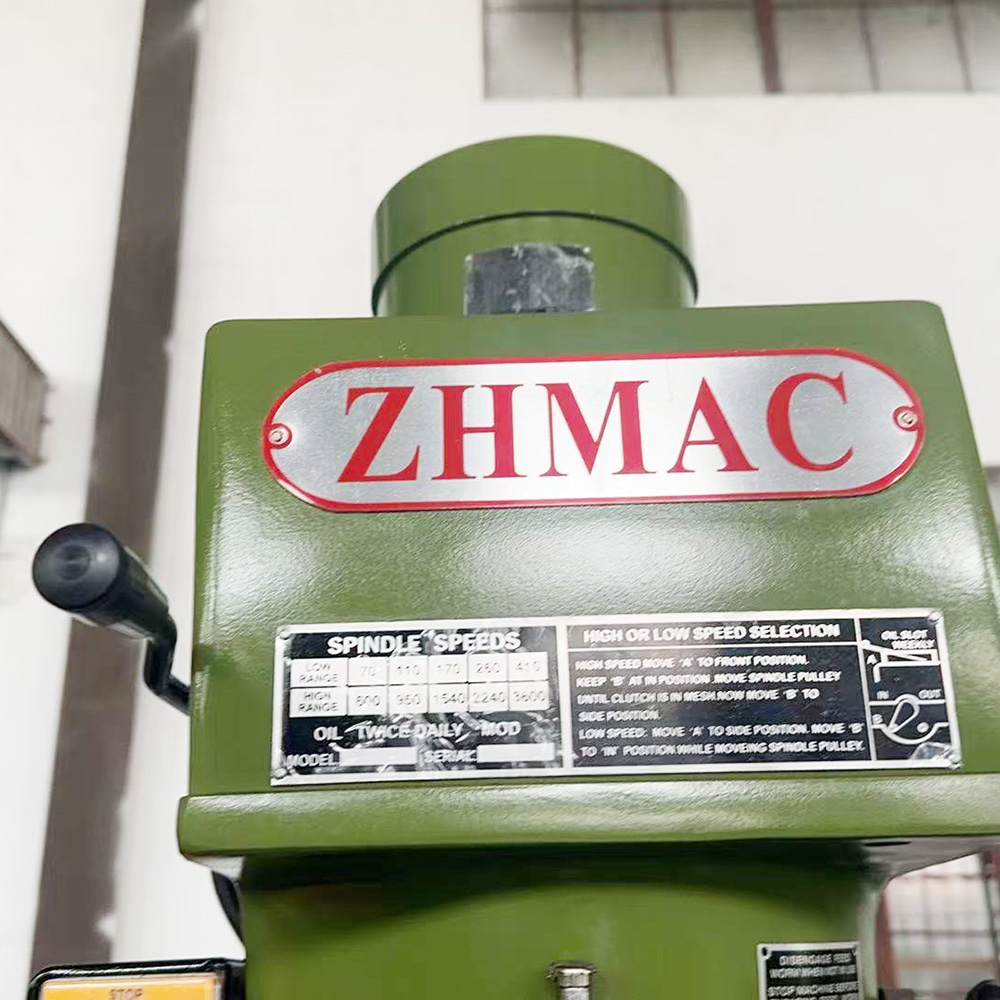

Our machine features an advanced 16 spindle speed configuration, reaching the highest 5440 rpm (R8). This wide range of speed adjustments allows operators to select the optimal cutting velocity for different material hardness levels. By utilizing this broad speed spectrum, the MIilling Machine handles both rapid material removal and fine finishing tasks effortlessly. The flexible spindle system guarantees consistent operational smoothness across various complex machining projects. It adapts seamlessly to changing production requirements, ensuring maximum output with minimal tool wear over extended periods.
This equipment incorporates high quality plastic coated rails and grinding rails with hardened treatments. This specialized manufacturing process ensures that the small X/Y axis has good abrasion resistance over long periods of intensive usage. By reducing friction and wear, these precision guide rails maintain superior positioning accuracy and extend the overall lifespan of the horizontal milling center. Such durable components minimize maintenance frequency and keep your production lines running smoothly. The enhanced surface hardness also prevents deformation under heavy loads, ensuring consistent performance.
We have integrated boom screws loaded knife ways to increase rigidity throughout the entire cutting process. This robust mechanical design effectively absorbs vibrations and withstands significant cutting forces during heavy-duty operations. Enhanced structural stiffness prevents deflection, ensuring that the precision metal milling equipment delivers flawless surface finishes and exact dimensional tolerances. This reliable stability is particularly beneficial when machining tough alloys or executing deep slotting procedures. You can confidently tackle demanding projects knowing the structural integrity will support continuous, high-precision metal removal without compromise.
The thoughtfully designed open structure makes this machine incredibly easy to operate and monitor. Operators gain clear visibility of the working area, which simplifies the setup of large workpieces and the adjustment of cutting tools. This accessible layout also facilitates quicker maintenance checks and smoother chip evacuation during continuous operations. Ultimately, the user-friendly configuration of our industrial horizontal mill reduces setup times and boosts overall workplace productivity. It creates a safer and more ergonomic environment for your technical staff, allowing for focused and efficient workflow management.
The advanced capabilities of this milling equipment make it highly suitable for machining critical automotive components. It easily processes engine blocks, transmission housings, and complex brackets requiring tight tolerances. The robust cutting performance ensures that each part meets strict industry standards for safety and reliability. By utilizing our equipment, automotive manufacturers can achieve consistent quality across large production batches, reducing the rate of defective parts and improving the overall assembly process for modern vehicles.
Mold makers frequently rely on our heavy-duty CNC mill to craft intricate cavities and core profiles. The superior rigidity and precise spindle control allow for the creation of smooth surface finishes on hardened steel materials. This accuracy significantly reduces the need for manual polishing and shortens the mold production cycle. Manufacturers can efficiently produce complex geometry tooling, enabling faster product development and giving your business a distinct competitive edge in the fast-paced injection molding and casting markets.
Every machine undergoes rigorous inspection and testing protocols before leaving our facility to ensure flawless performance. We utilize advanced measuring instruments to verify geometric accuracy and operational stability under simulated production conditions. Our commitment to quality guarantees that you receive dependable equipment ready for immediate industrial deployment. We prioritize structural integrity and precision at every manufacturing stage, ensuring your investment yields long-term operational value.
We provide comprehensive technical assistance to help you maximize the productivity of your milling operations. Our experienced engineering team is readily available to offer guidance on machine setup, tooling selection, and preventative maintenance. We strive to ensure your manufacturing processes remain efficient and profitable through continuous expert backing. From initial installation to long-term operational troubleshooting, our dedicated support network ensures your production runs without unnecessary interruptions.
It efficiently machines a wide variety of metals including steel, cast iron, aluminum alloys, and brass. The versatile spindle speed options allow it to handle both soft and hard materials with ease.
We recommend a solid, level concrete foundation to support the machine's weight and absorb operational vibrations. Proper leveling is crucial for maintaining long-term machining accuracy and structural integrity.
Regular lubrication and keeping the rails clean from metal chips are essential for preventing premature wear. Following the recommended maintenance schedule will preserve the abrasion resistance of the plastic coated rails.
