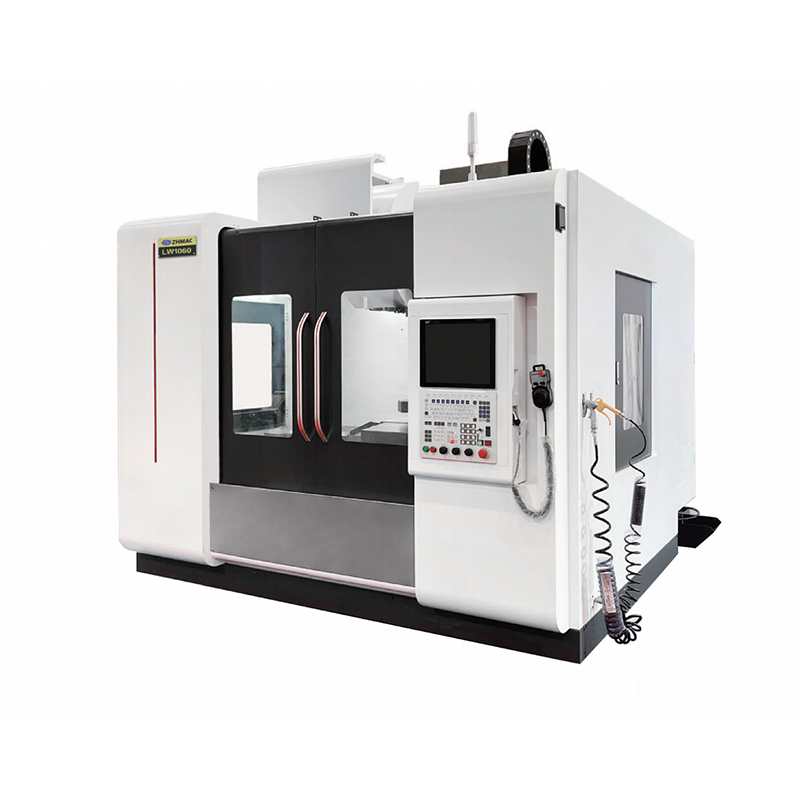

The LW1060 Horizontal Five-axis Machining Center is a cutting-edge industrial solution designed for exceptional precision and efficiency. Featuring an advanced structural design, it handles complex geometries with remarkable accuracy, reducing the need for multiple setups and streamlining the manufacturing process. By delivering reliable peak performance, our 5-Axis CNC Machine ensures operators maintain high productivity levels while minimizing downtime, making it a trusted choice for modern metalworking facilities demanding superior quality and output stability.
The machine adopts fixed column type,cross sliding table moving structure. This advanced architectural foundation ensures optimal rigidity during complex operational cycles, significantly enhancing overall dimensional accuracy. By integrating this robust configuration, our Horizontal Five-axis Machining Center delivers consistent output even under demanding industrial conditions. Operators benefit from reduced vibration and superior dynamic performance, which translates to a longer operational lifespan and exceptional precision across various heavy-duty milling applications.
The fuselage uses a large stable base, with high rigidity, high stability, and high reliability, high-speed cutting is not easy to shock and deformation. Built to withstand extreme mechanical stress, this reinforced foundation acts as a critical anchor for all dynamic components. Our advanced Industrial Metal Milling Machine utilizes this superior structural integrity to maintain tight tolerances, ensuring that every custom manufactured part meets rigorous quality standards without compromising production speed.
Three axes adopt C3 high precision ball screw pair, with pre-tensile structure, screw self-lubrication,prolong bearing life. This sophisticated motion control mechanism guarantees rapid, smooth, and highly accurate positioning during multi-axis operations. By utilizing these premium components, the equipment ensures seamless transitions and minimal thermal expansion, which is essential for continuous high-speed production environments. The self-lubricating system also drastically cuts down on routine factory maintenance efforts, providing operators with a reliable experience.
Tool store adopts disc-type ATC tool store (24 BT40 tools), cutter head nearby tool selection in the process of tool change spindle loose,broach structure using mechanical linkage device, tool exchange fast, reliable,pollution-free, and easy to maintain. This highly efficient automatic tool changer significantly reduces idle time between processes, thereby elevating overall factory throughput. The seamless integration ensures smooth workflow transitions, empowering facilities to tackle complex multi-tool projects with enhanced speed and uncompromising consistency.
The machine is equipped with high-speed sealed guide rail inner protective cover, which effectively protects the guide rail and the moving parts of the lead screw and extends its service life. This essential protective barrier prevents metal chips, coolant, and industrial debris from compromising the internal mechanical components. As a result, our High Precision Machining Center operates with superior cleanliness and uninterrupted efficiency, lowering long-term maintenance costs and safeguarding your crucial operational investments.
| Project | Unit | LW1060 | ||
| Processing range | Principal axis direction | The main shaft is vertical. | Spindle is horizontal. | |
| X–stroke | mm | 1060 | 1060 | |
| Y–stroke | mm | 970 | 970 | |
| Z–stroke | mm | 600 | 600 | |
| Distance from spindle end face to table | mm | 60~660 | – | |
| Distance from spindle center to column guide rail surface | mm | 663 | – | |
| Distance from spindle center to table | mm | ?270~700 | 60~660 | |
| Distance from spindle nose to table center | mm | – | ?270~700 | |
| Fast moving speed | X/Y/Z | m/min | 36/36/36 | |
| Spindle | Spindle form | Electric spindle-BT40 | ||
| Spindle diameter | mm | Φ190 | ||
| Torque | N.M | 43/90 | ||
| Rotational speed | rpm/min | 4000/12000 | ||
| Power | KW | 18 | ||
| Line rail | Roller line gauge X/Y/Z | 45Four sliders/45Four sliders/45Six sliders | ||
| Lead screw | Ball screw size X/Y/Z | 4012/4012/4012 | ||
| Turntable | Transmission mode | DD Direct drive | ||
| Table size | mm | 630*630 | ||
| Table T–slot dimensions | mm | 5~18H7 | ||
| Rotation range | N*360 | |||
| Power | KW | 18/24 | ||
| Torque | Nm | 1720/2860 | ||
| Rotational speed | rpm | 100/160 | ||
| Positioning accuracy | sec | ±5 | ||
| Repeated positioning accuracy | sec | ±3 | ||
| Allowable load | kg | 1000 | ||
| Brake torque | kg*m | 3500 | ||
| Rocking head | Transmission mode | DD Direct drive | ||
| Swing range | ° | ?5~185 | ||
| Positioning accuracy | sec | ±5 | ||
| Repeated positioning accuracy | sec | ±3 | ||
| Power | KW | 8.37/9.1 | ||
| Torque | Nm | 800/1200 | ||
| Rotational speed | rpm | 100/300 | ||
| Brake torque | kg*m | 1500 | ||
| Tool magazine | Shank specification and quantity | 24 handle-BT40 | ||
| Maximum tool length | mm | 300 | ||
| Maximum tool diameter | mm | Φ80/Φ160 | ||
| Maximum tool weight | kg | 8 | ||
| Knife change time（about） | s | 2 | ||
| Precision | X/Y/Z positioning accuracy | mm | ≤0.008 | |
| X/Y/Z repeated positioning accuracy | mm | ≤0.006 | ||
| Numerical control system | Numerical control system | HNC/KNDLYNUC | ||
| Machine tool | Machine weight（ about） | T | 10.5 | |
Our Heavy Duty CNC Milling Machine is an indispensable asset for industries requiring complex part geometries, such as aerospace and automotive manufacturing. It handles intricate aluminum structures, engine components, and specialized transmission parts with ease. By allowing operators to machine multiple faces in a single setup, it drastically cuts down cycle times and reduces cumulative errors. The high torque capabilities and superior rigidity ensure that even the toughest alloys are shaped flawlessly, meeting rigorous standards.
Nantong Zongheng Machinery Technology Co., Ltd. is located in Nantong, Jiangsu, and is a large-scale machine tool manufacturing enterprise in East China. We strictly control our production processes with advanced casting technology and comprehensive testing systems, including three-coordinate measuring instruments. Our established manufacturing expertise enables us to provide fast technical support and custom machinery solutions tailored to specific industry needs. The CE and ISO 9001:2015 certifications we hold further reflect an unwavering dedication to technological innovation globally.
The machine features an Electric spindle-BT40 with a rotational speed range of 4000/12000 rpm/min and a maximum torque of 43/90 N.M, ensuring high-speed processing capabilities for various industrial tasks.
It is equipped with a 24-handle BT40 tool magazine, allowing a maximum tool diameter of Φ80/Φ160 mm, a maximum tool weight of 8 kg, and a fast knife change time of approximately 2 seconds.
Yes, the robust turntable has an allowable load of 1000 kg and the system incorporates a dependable DD Direct drive transmission to accommodate heavy-duty custom processing requirements securely.
The equipment delivers exceptional precision, featuring an X/Y/Z positioning accuracy of ≤0.008 mm and a repeated positioning accuracy of ≤0.006 mm for consistent, reliable performance.
The equipment is manufactured under strict factory quality control, proudly holding a CE certification alongside GB/T 19001-2015 / ISO 9001:2015 Quality Management System certificates.
