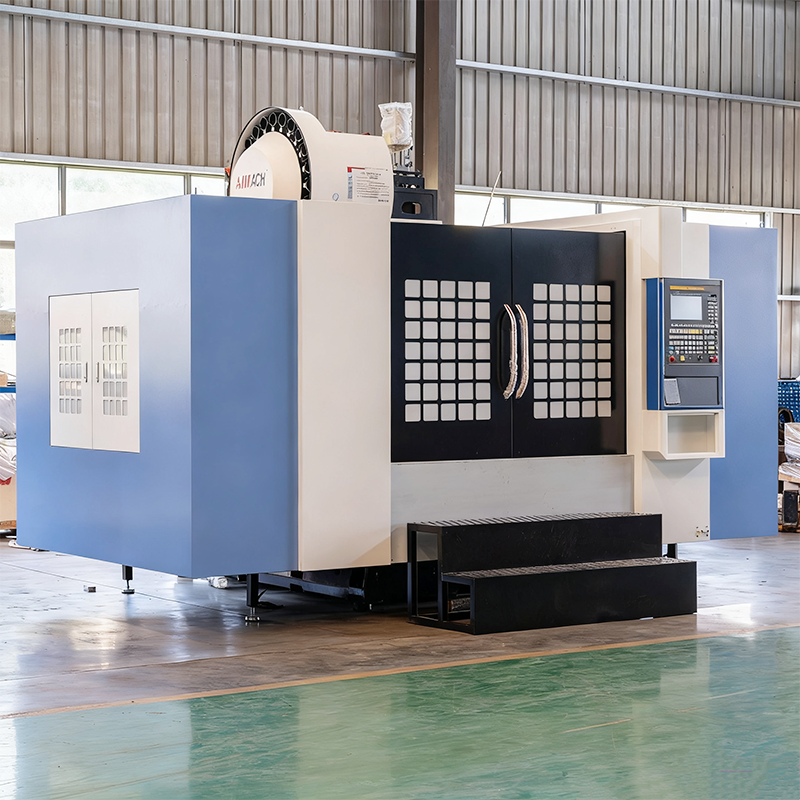

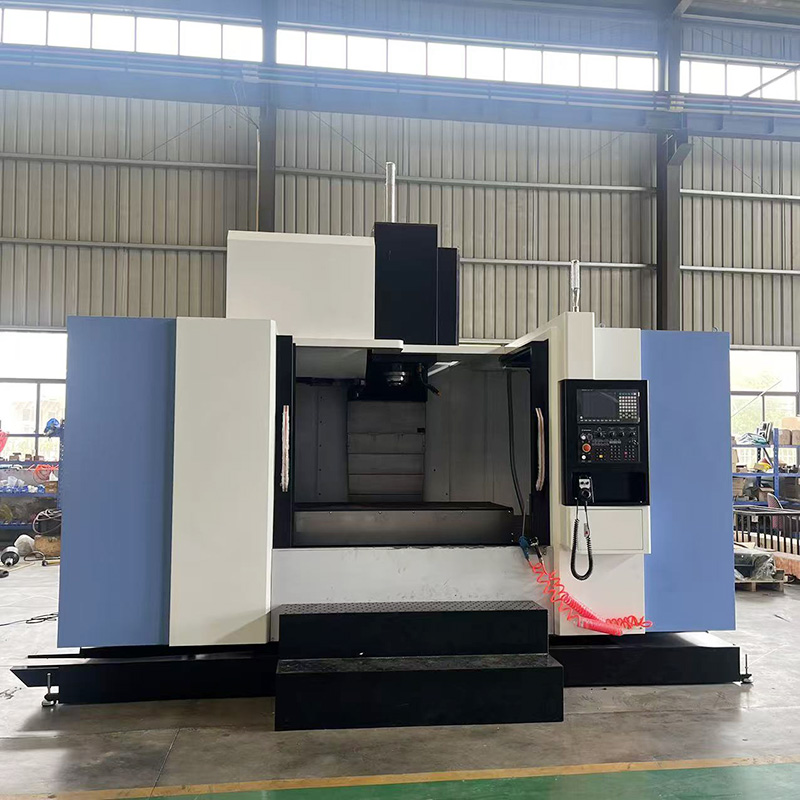

The Vertical Machining Center models VMC-1370, 1580, 1680, and 1890 represent our advanced industrial solutions for robust and precise metalworking. Designed for high rigidity and stability, our VMC machine series handles demanding cutting tasks with ease. Utilizing a heavy-duty bed structure and premium electrical components, this equipment delivers exceptional surface finish and dimensional accuracy. It serves as a reliable cornerstone for factories focused on complex part processing and mass production requirements.
| Machine Tool Data | Unit | VMC-1370 | VMC-1580 | VMC-1680 | VMC-1890 |
| X axis stroke | mm | 1300 | 1500 | 1600 | 1800 |
| Y axis stroke | mm | 700 | 800 | 800 | 900 |
| Z axis stroke | mm | 650 | 700 | 730 | 800 |
| Distance from spindle end face to worktable | mm | 110-810 | 150-850 | 95-825 | 150-850 |
| Distance from spindle center to column protection surface | mm | 757 | 855 | 860 | 965 |
| Table size | mm | 1400×700 | 1600×800 | 1700×800 | 2000×900 |
| Max capacity | kg | 1000 | 1500 | 1500 | 1800 |
| Table T-groove | mm | 5-18/110 | 5-22/135 | 5-22/145 | 5-22/165 |
| Spindle taper | BT50 | BT50 | BT50 | BT50 | |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 |
| Spindle motor | kw | 46341 | 15/18.5 | 15/18.5 | 15/18.5 |
| (X/Y/Z) Three axis motor | kw | 37683 | 37684 | 37684 | 38081 |
| Control system (optional) | MISUBISHI / FANUC / SIEMENS | ||||
| X,Y,Z axis rapid moving speed | m/min | 24/24/24 | 24/24/24 | 24/24/24 | 24/24/24 |
| Positioning accuracy | mm | JIS±0.005/300 | JIS±0.005/300 | JIS±0.005/300 | JIS±0.005/300 |
| Repeated positioning accuracy | mm | JIS±0.003/300 | JIS±0.003/300 | JIS±0.003/300 | JIS±0.003/300 |
| Pressure | kg/cm2 | ≥6 | ≥6 | ≥6 | ≥6 |
| Tool magazine capacity | handle | 24 | 24 | 24 | 24 |
| Machine weight | T | 9.5 | 12 | 12 | 14 |
| Machine size (L×W×H) | mm | 3900×3200×3000 | 4300×3320×2970 | 4650×3350×3250 | 4900×3470×3400 |

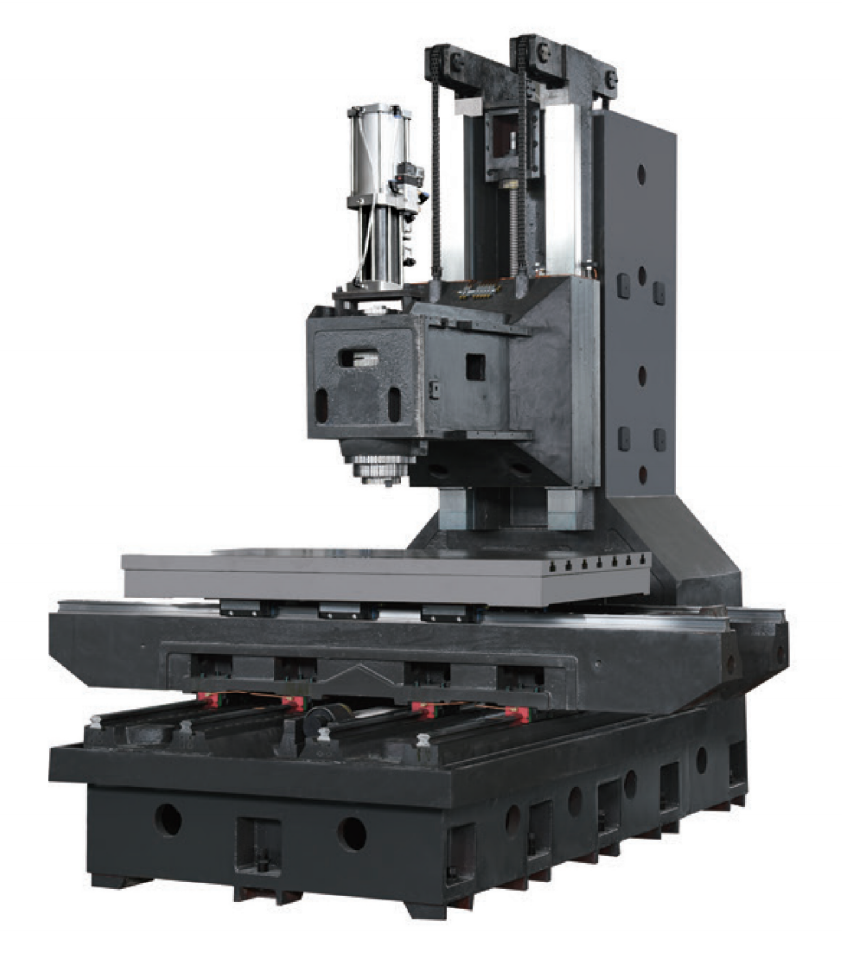

The wide sliding track of the base adopts the four track design. This robust structural foundation significantly enhances the load-bearing capacity and overall rigidity of our Heavy Duty VMC. By distributing the weight and cutting forces across four distinct pathways, the machine minimizes vibration during aggressive milling operations. Operators can maintain tight tolerances even when processing heavy workpieces, ensuring consistent output quality across various manufacturing batches.
All the slide rails are subject to high cycle heat treatment and precision grinding. This meticulous manufacturing process hardens the surfaces to withstand continuous industrial use without premature wear. Our production facility ensures that every guideway meets strict dimensional standards, resulting in unparalleled geometric accuracy. This attention to detail guarantees that the tool path remains perfectly aligned, contributing to the exceptional longevity and reliability of our CNC Milling Machine.
With the help of fluoride resin with wear resistance low resistance and low friction coefficient, they slide smoothly with each other to ensure the accuracy of the machine. This specialized coating practically eliminates the stick-slip phenomenon common in heavy machinery. Consequently, the axes respond instantly to servo commands, allowing for flawless contouring and micro-positioning. This advanced sliding technology is crucial for achieving superior surface finishes on complex mold cavities.
Five ball screw special bearings are used to pre pull the support seats at both ends of each shaft to ensure the precision during thermal expansion. By applying this pre-tensioning technique, the mechanical structure compensates for heat generated during extended operational shifts. This dynamic stability prevents thermal deformation from compromising the workpiece dimensions. Such an engineering approach ensures that our BT50 Spindle VMC delivers uniform results from a cold start to full-shift operation.
Adopt high-density coupling to drive directly to reduce transmission clearance. This direct connection between the servo motors and the ball screws eliminates backlash and enhances the dynamic responsiveness of the feed system. It allows for rapid acceleration and deceleration without sacrificing positional integrity. Our design choice maximizes the efficiency of the power transfer, resulting in smoother interpolations and significantly shorter cycle times for intricate machining programs.

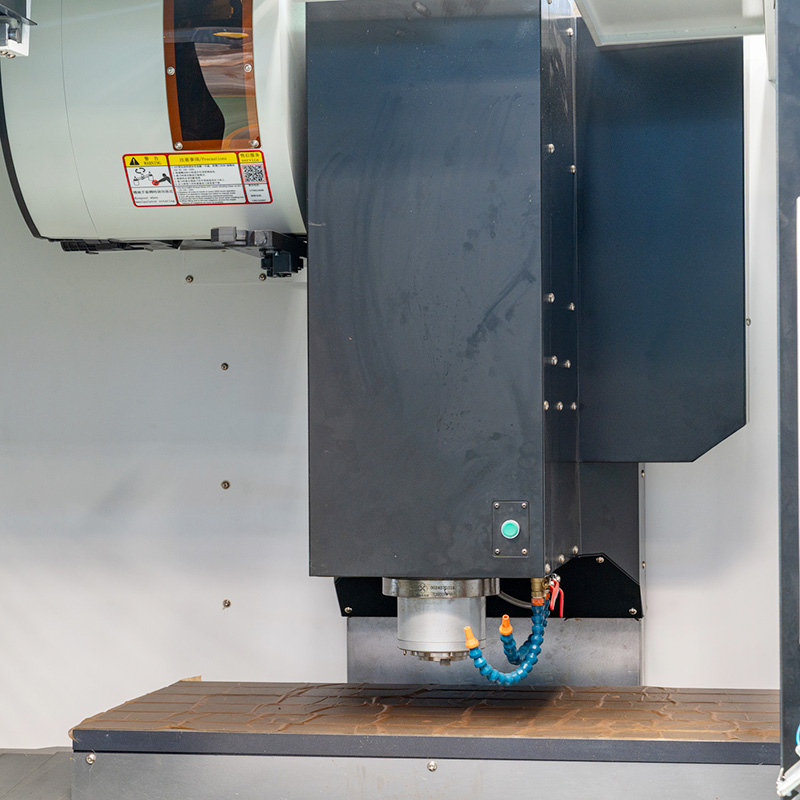

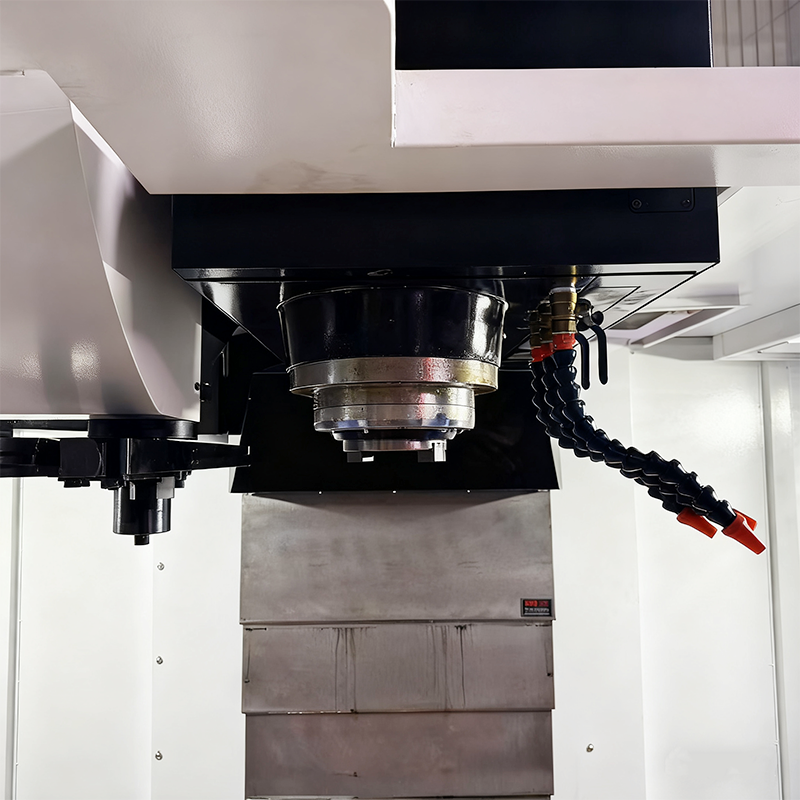

The three-axis direction adopts fully closed mountain shaped expansion cover, with excellent sealing and chip removal performance. This comprehensive shielding protects the critical guideways and ball screws from metal shavings and coolant fluid. The efficient management of debris maintains a clean internal working environment, reducing maintenance downtime. Such durable covers extend the lifespan of the internal mechanical components, ensuring continuous and safe operation for any demanding High Precision Machining Center.
Our vertical machining equipment excels in the high-volume production of automotive components, such as engine blocks and transmission housings. The superior rigidity and cutting power effortlessly manage the tough alloys commonly used in the automotive sector. Facilities benefit from reduced cycle times and elevated dimensional consistency across large batches. The equipment's versatility accommodates quick tooling changes for various vehicular parts.
The precision and surface finishing capabilities make this machine ideal for creating complex industrial molds and dies. It smoothly processes hardened tool steels, capturing intricate geometric details required for plastic injection or die-casting molds. The stable thermal management ensures that lengthy finishing passes complete without deviations. Mold shops rely on this consistent accuracy to minimize manual polishing and final fitting.
For aerospace and energy sectors, structural integrity and exact tolerances are strictly mandatory. Our machine effectively shapes high-strength materials and specialized alloys used in turbine components or structural brackets. The heavy load capacity accommodates massive workpiece blocks securely on the worktable. This dependable performance supports the stringent quality standards demanded by these advanced technology industries.
We leverage advanced casting technology and a strict testing system to ensure every unit meets peak performance criteria. Our facilities conduct rigorous positioning accuracy and cutting accuracy inspections before any equipment is cleared for dispatch. This commitment to manufacturing excellence guarantees that industrial clients receive highly durable and reliable machinery. Our comprehensive quality control protocols minimize operational risks and extend the service life of our products.
We provide customized machine tool solutions tailored to the special needs of specific industries. Our global footprint extends across Southeast Asia, the Middle East, the Americas, and Europe, backed by a comprehensive service network. Our dedicated after-sales service team resolves technical inquiries swiftly to maximize your operational uptime. Choosing our brand means securing an industrial partnership dedicated to continuous technical support and process optimization.
The models feature a standard BT50 spindle taper, providing the necessary clamping force and rigidity for heavy cutting and large diameter tooling.

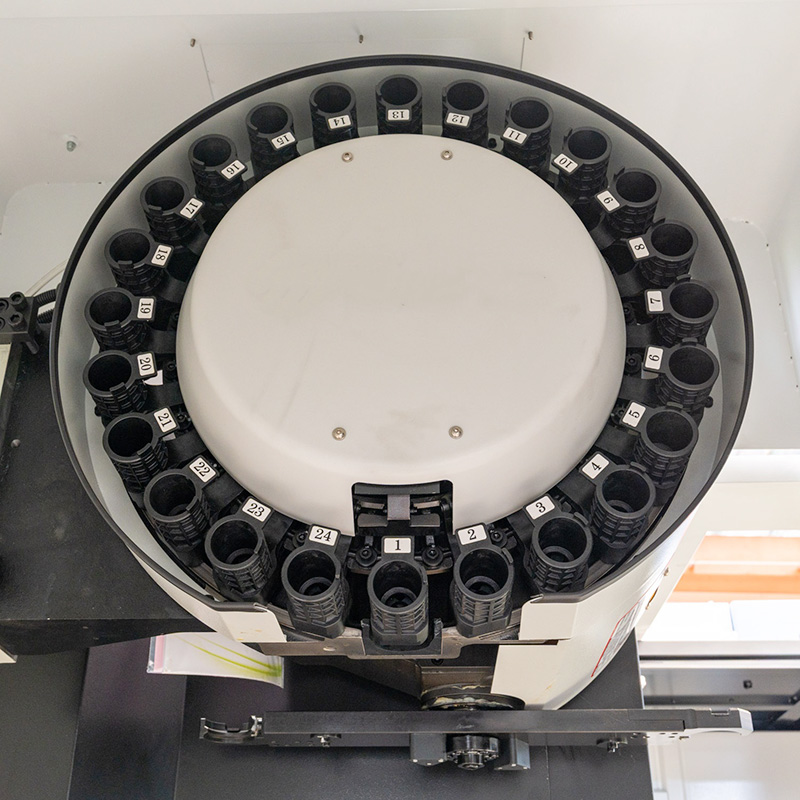

The standard configuration includes a tool magazine capacity of 24 handles, allowing for diverse machining operations without manual tool changes.
Yes, we offer multiple industry-standard control systems including Mitsubishi, Fanuc, and Siemens to integrate seamlessly with your existing production workflows.
It is highly capable of machining cast iron, various grades of steel, aluminum alloys, and specialized materials used in aerospace and automotive applications.
