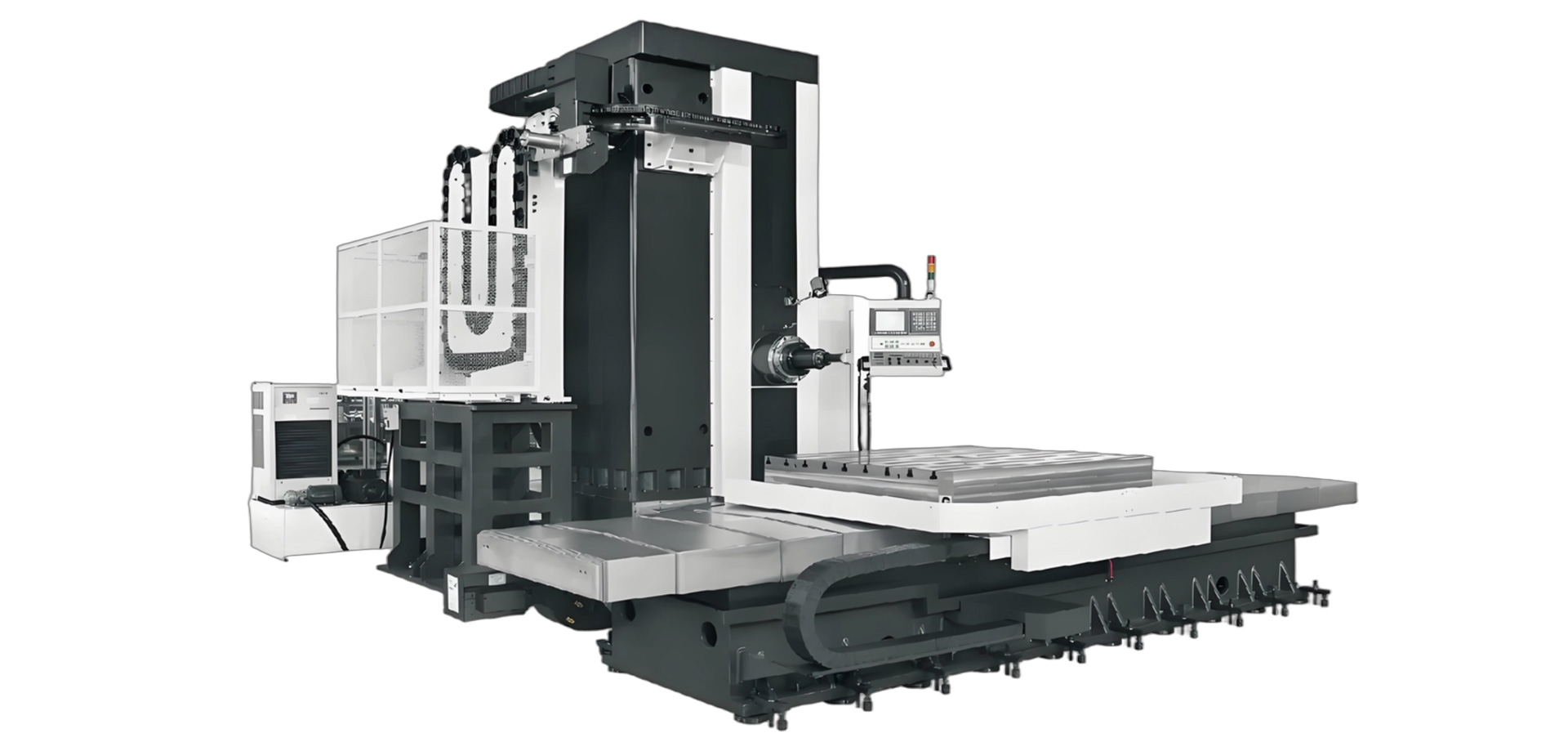

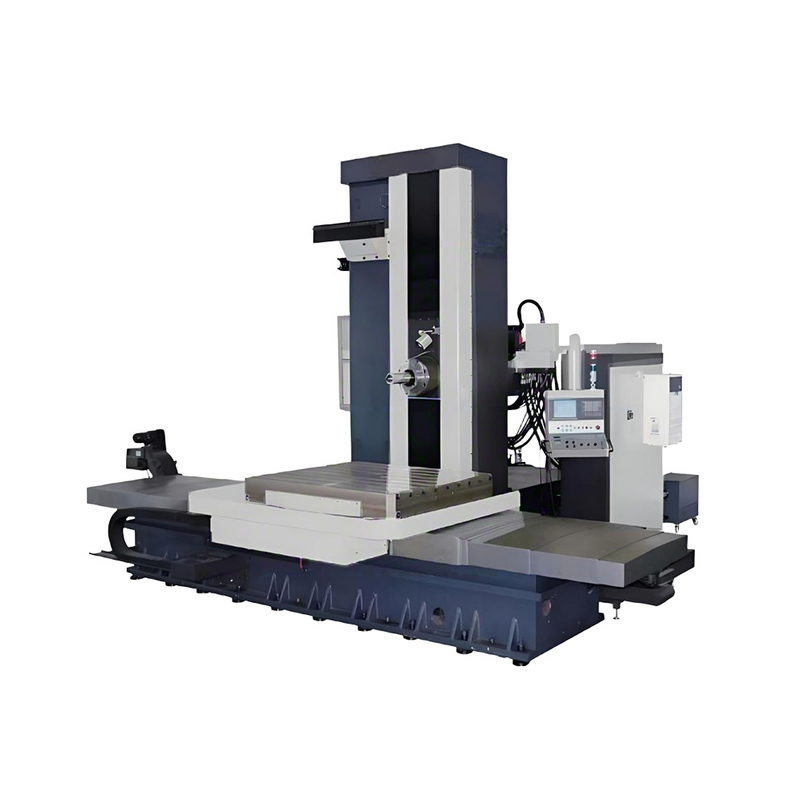

CNC Horizontal Boring And Milling Machining Center

Product Overview Of CNC Horizontal Boring And Milling Machining Center

Robust And Reliable Equipment

The CNC horizontal boring and milling machining center represents a pinnacle of industrial engineering designed for complex metal-cutting applications. Our equipment provides unparalleled stability and efficiency when handling large-scale components. We utilize an advanced closed-loop control system to ensure consistent operation across rigorous industrial tasks. This robust machine tool is tailored to meet the demanding requirements of high-end manufacturing. By choosing our CNC horizontal boring mill, operators gain a highly reliable solution that seamlessly tackles heavy-duty cutting operations with exceptional structural integrity.

Product Parameters Of CNC Horizontal Boring And Milling Machining Center

Basic Info

Specification

Product Key Features Of CNC Horizontal Boring And Milling Machining Center

High Torque

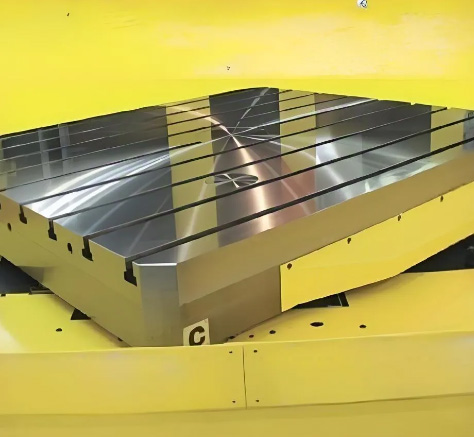

Maximum spindle torque output reaches 2838 N-m, the highest among products of the same category. The nose-type spindle head enables close proximity to workpieces during machining, ideal for heavy-duty cutting. The rotary worktable comes standard with a load capacity of 8000 kg, with optional load capacities ranging from 10,000 kg to 25,000 kg. The Z-axis can continuously withstand an axial load of 2000 kgf, ensuring high torque and high rotational speed deliver exceptional cutting force. Our horizontal boring and milling machine handles massive payloads with ease.

High Precision

The spindle bearings adopt circulating oil cooling, combined with an oil pipe sheath cooling design around the spindle to prevent thermal displacement. The spindle motor flange is equipped with an oil pipe sheath cooling system. The spindle undergoes special nitriding treatment, ensuring no wear even after long-term operation. The X/Y-axis ball screws are directly coupled to the motors for drive transmission. These thermal management strategies allow our heavy-duty CNC machining center to maintain ultra-precise positioning accuracy during extended operational shifts.

High Rigidity

The cast structure is made of high-grade cast iron with excellent stability and vibration resistance, featuring an arch-shaped high rigidity design. The column's bending and torsion resistance has been increased by 1.7 times, enabling stable machining even at the top end of the Y-axis travel. The combination of the spindle (subjected to nitriding and cryogenic treatment at -190°C) and high-precision, high-rigidity spindle bearings ensures the machine maintains optimal performance over the long term. This solid foundation makes our metal-cutting CNC machine tools highly durable.

Product Uses Of CNC Horizontal Boring And Milling Machining Center

Applications In Advanced Manufacturing

This equipment is widely used in mold manufacturing, automotive parts, wind and nuclear power, marine vessels, military aerospace, university teaching, and other fields. Its ability to handle large workpieces with intricate geometries makes it indispensable for these critical sectors. The integrated rotary capabilities provide the necessary accuracy for specialized industries requiring tight dimensional tolerances. Operators worldwide rely on our large-part machining equipment to consistently produce superior parts, ensuring safety and peak performance in highly demanding environments.

Why Choose Us For CNC Horizontal Boring And Milling Machining Center

Manufacturing Excellence And Global Reach

We adhere to the corporate spirit of manufacturing excellence and pursuing excellence, always insisting on technological innovation. With an advanced casting process and a strict testing system covering positioning accuracy and cutting inspections, we are fully equipped to deliver customized machine tool solutions. Our equipment not only sells well domestically but is exported to Southeast Asia, the Middle East, Brazil, India, Africa, Europe, and America. We have established a comprehensive service system to provide fast technical support globally.

FAQ Of CNC Horizontal Boring And Milling Machining Center

What is the load capacity of the rotary table?

The rotary worktable comes standard with a load capacity of 8000 kg. We also provide optional load capacities ranging from 10,000 kg to 25,000 kg depending on specific custom needs.

How does the spindle resist thermal displacement?

The spindle bearings utilize a circulating oil cooling system, and the spindle motor flange features an oil pipe sheath cooling design to effectively prevent thermal displacement.

What certifications ensure the quality of this equipment?

Our equipment is manufactured under strict quality management systems and holds CE, ISO 9001 (GB/T 19001-2015), and SGS certifications, ensuring consistent reliability for all industrial operations.
