The VMC series Vertical Machining Center uses finite element analysis software (Ansys) to optimize the design, which makes the machine structure design more reasonable, and the machine rigidity,accuracy retention, and reliability are approaching perfection. The machine bed, table, column, milling head, etc.are all made of high-strength cast iron. After secondary tempering and aging treatment, the structure of the reinforcement is optimized to make the machine performance more consistent with the requirements of processing characteristics and stability.

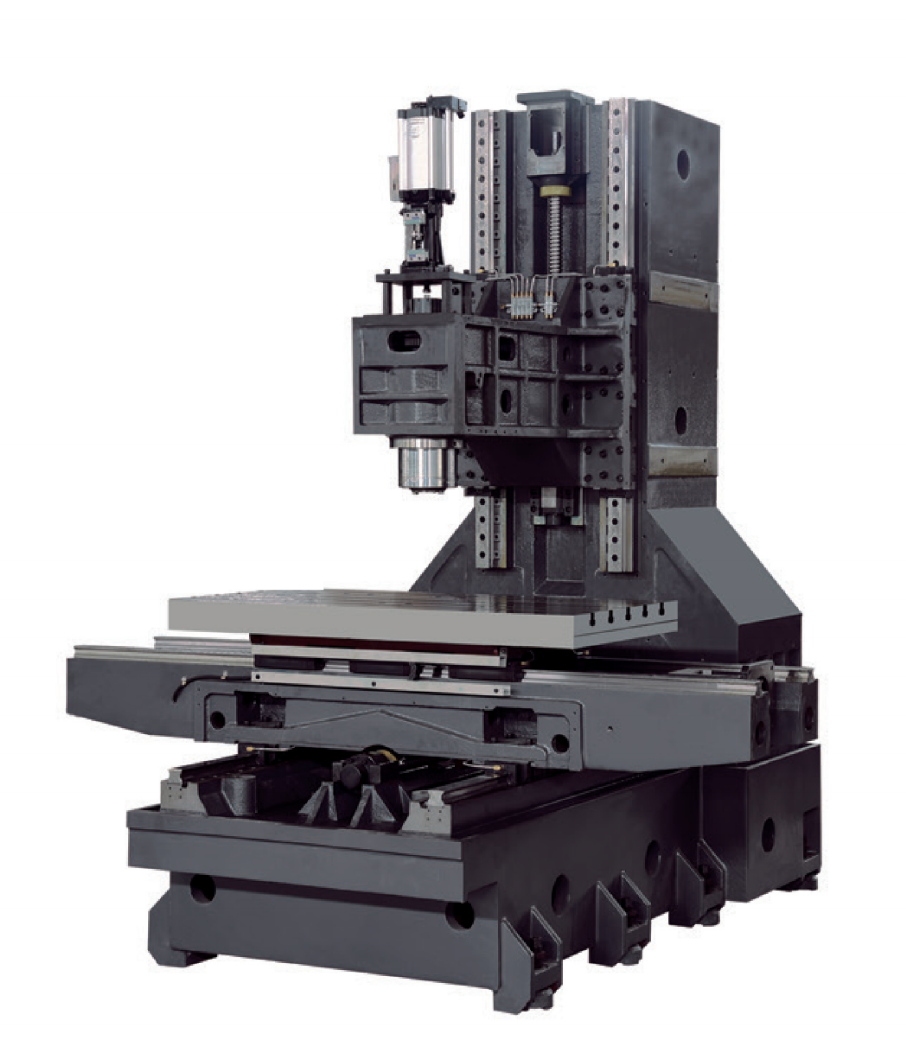

The bed rail is designed with large span size, and the column is designed with A-shaped structure, so that the machine has excellent strength, rigidity and thermal stability. This advanced foundational design allows our equipment to effectively handle heavy cutting forces without compromising precision. By dispersing the operational stress evenly across the framework, the structural integrity is maintained over long periods. Our factory ensures that every unit delivers the unwavering stability required for highly demanding industrial environments.

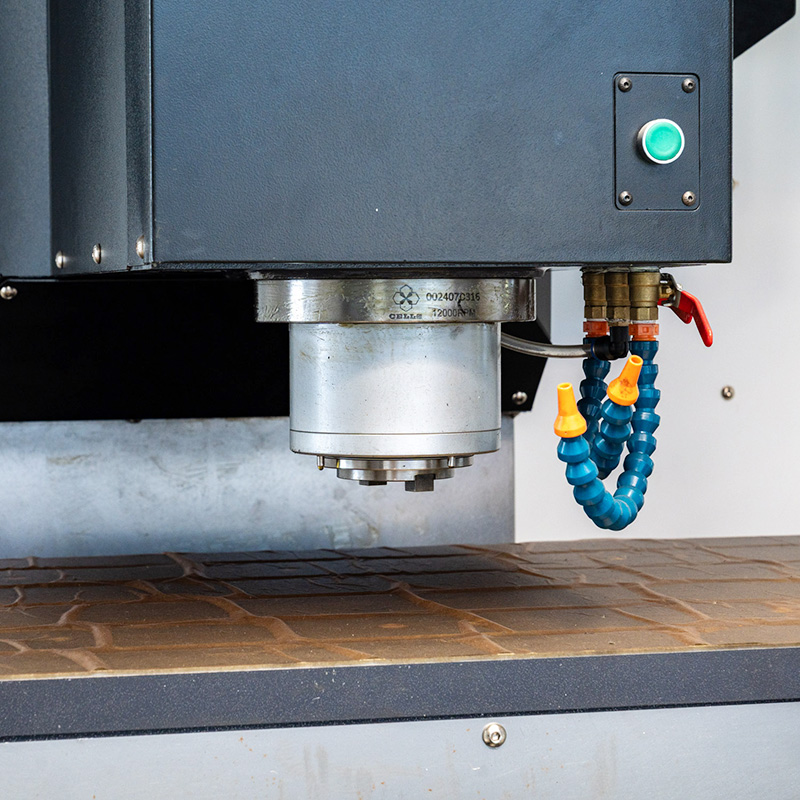

High-performance spindle unit imported from Taiwan at 10000rpm, which can be equipped with spindle oil-cooling device to control spindle temperature rise and improve cutting accuracy. This rapid rotation capability allows for exceptionally smooth finishes on a wide variety of metallic workpieces. By effectively managing thermal variations during extended operations, the equipment minimizes wear and maintains tight tolerances. We prioritize selecting premium components so that your production lines experience fewer interruptions and superior output quality.
The three feed shafts are supported by imported linear roller guides imported from Taiwan to ensure three-axis positioning accuracy. These premium guidance systems drastically reduce friction during rapid movements, enabling seamless transitions and exact positioning. Whether dealing with intricate geometries or bulk material removal, the feed mechanism responds with absolute precision. Our commitment to utilizing top-tier linear components translates directly into enhanced repeatability and reduced mechanical wear for your daily milling tasks.
Both ends of the ball screw are pre-stretched, which increases the transmission rigidity and eliminates the thermal deformation generated during rapid movement in advance. This crucial engineering detail ensures that the axis drives remain taut and accurate, even when subjected to the intense heat of continuous production cycles. By proactively countering material expansion, the system guarantees that your intricate cuts stay true to the programmed dimensions, reflecting our dedication to dependable mechanical solutions.

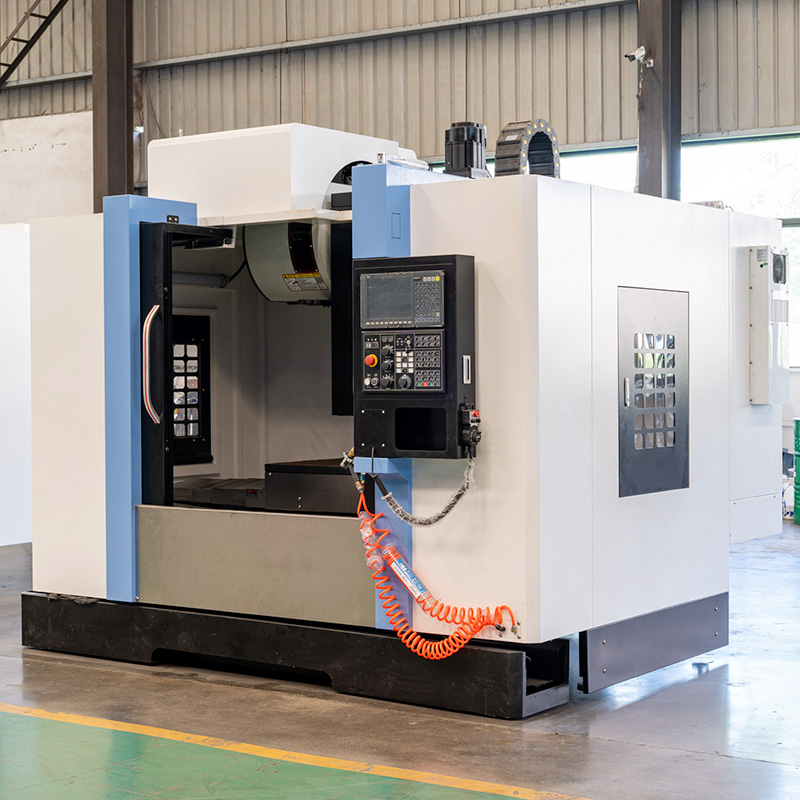

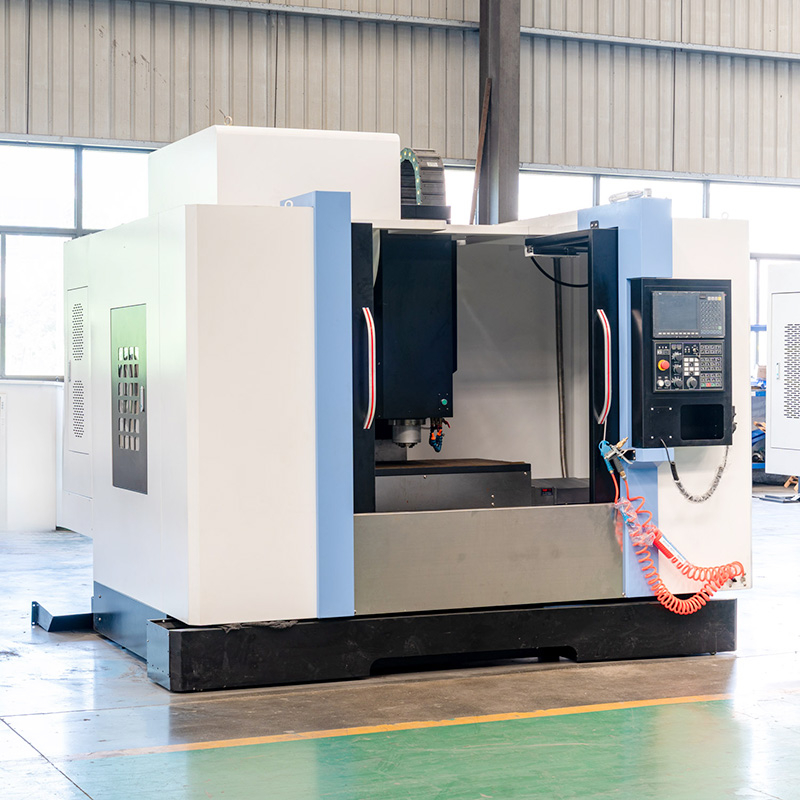

The machine adopts full protection design of splash-proof sheet metal, beautiful and generous to ensure the personal safety of the operator. Beyond its sleek industrial appearance, this robust enclosure effectively contains flying chips, coolant fluids, and potential hazards associated with high-speed metal cutting. The thoughtful exterior architecture also simplifies routine cleaning and maintenance procedures on the shop floor. Our supplier standards dictate that operational security must always match the high performance of the internal machinery.
Our equipment is widely utilized in precision-demanding fields such as mold manufacturing, automotive parts, wind power, nuclear power, and marine vessels. These robust machines efficiently shape complex metallic cavities, engine blocks, and critical structural components with tight tolerances. We configure these units to adapt to various heavy-duty tasks, ensuring consistent quality for intricate shapes. Whether for military aerospace applications or university teaching, this machinery provides the reliable foundation necessary for advanced manufacturing processes.

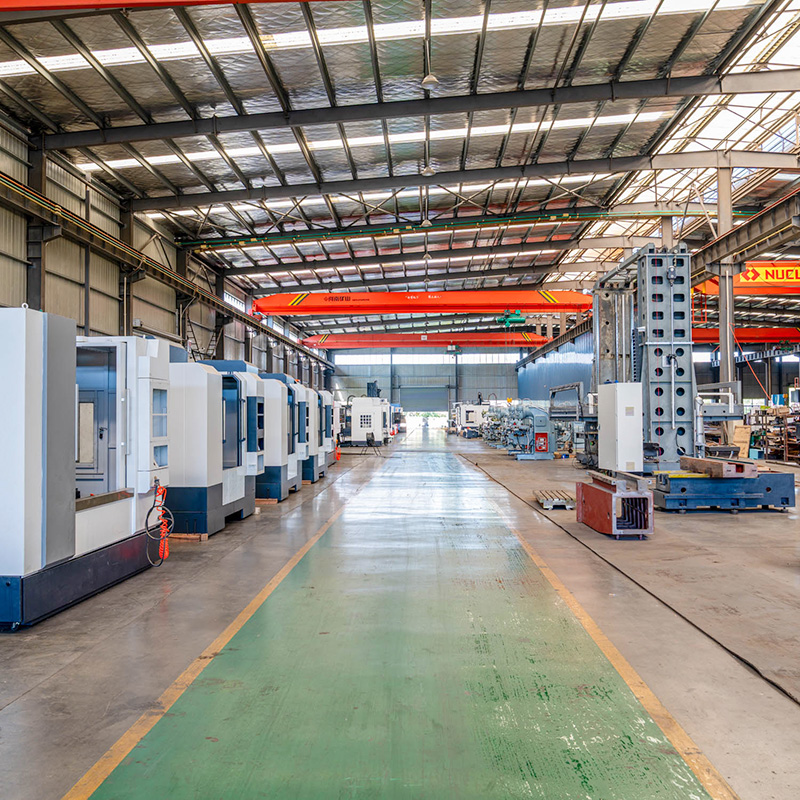

Our enterprise boasts leading R&D capabilities and a strict quality testing system to deliver exceptional machine tool solutions. We employ advanced casting technology alongside precise positioning and cutting accuracy inspections to guarantee long-lasting performance. As a globally competitive supplier, our products reach markets across Southeast Asia, Europe, and the Americas. You can rely on our comprehensive pre-sales and after-sales service teams for fast, customized technical support tailored to the specific needs of your industrial sector.
The machine features a high-performance spindle operating at 10000 rpm, which can be paired with an optional oil-cooling device to maintain precision.

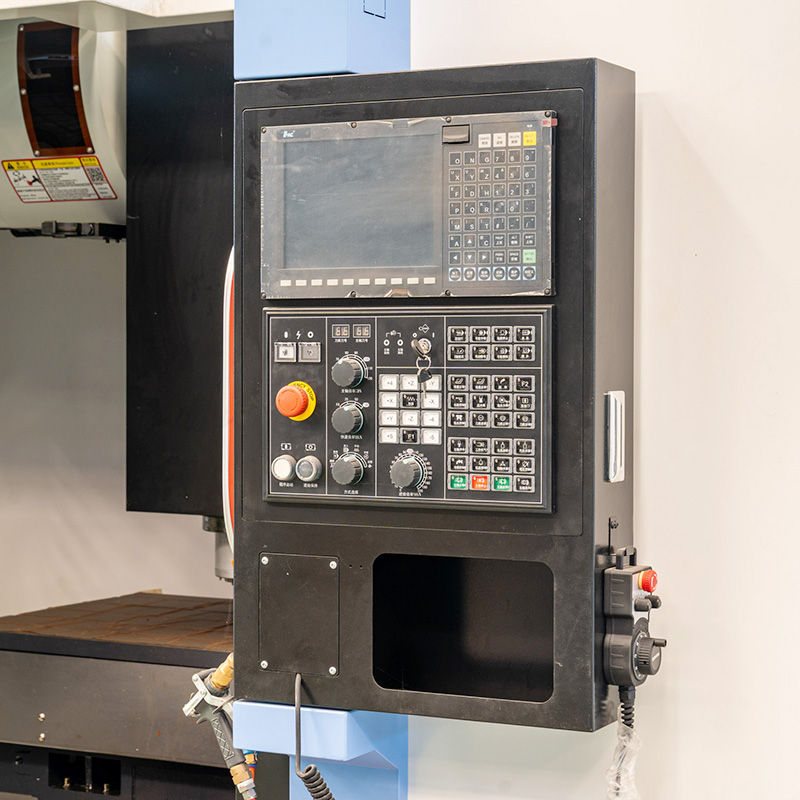

It comes standard with the FANUC CNC system, while SIEMENS, GSK, and SYNTEC are also available as optional configurations based on your needs.
Both ends of the ball screws are pre-stretched to increase transmission rigidity and eliminate the thermal deformation typically generated during rapid mechanical movements.

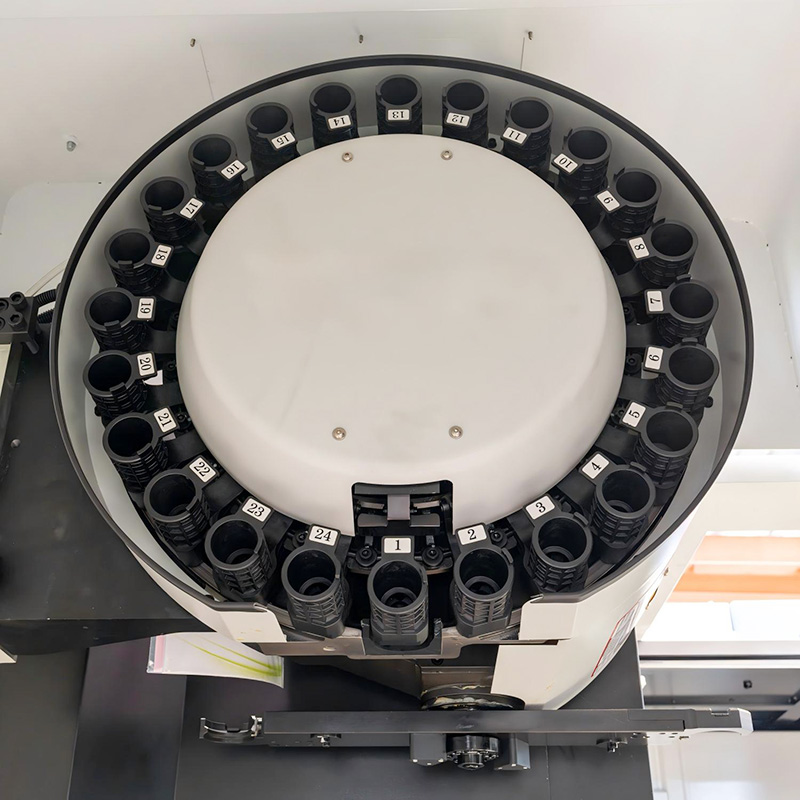

The automatic tool changer accommodates up to 24 tools, ensuring seamless transitions and high efficiency during complex milling operations.
| Project | Unit | VMC850 | VMC855 | VMC1160 | VMC1270 |
| Processing Range | |||||
| X axis | mm | 800 | 850 | 1100 | 1200 |
| Y axis | mm | 500 | 550 | 600 | 700 |
| Z axis | mm | 500 | 550 | 600 | 700 |
| Distance from spindle center to column guide | mm | 560 | 630 | 655 | 757 |
| Distance from spindle end to worktable surface | mm | 120–620 | 120–670 | 120–720 | 80–780 |
| Working Table | |||||
| Working table size | mm | 500×1000 | 550×1000 | 600×1200 | 700×1300 |
| Max load capacity | kg | 600 | 600 | 800 | 1000 |
| T–slot | |||||
| T–slot (slot number × slot width × pitch) | mm | 5×18×90 | 5×18×90 | 5×18×100 | 5×18×110 |
| T–slot of working table | 5–18 | 5–18 | 5–18 | 5–18 | |
| Spindle | |||||
| Spindle taper (model / installation size) | BT40/Φ150 | BT40/Φ150 | BT40/Φ150 BT50/Φ190(optional) | BT40/Φ150 BT50/Φ190(optional) | |
| Spindle speed | rpm | 10000 | 10000 | 10000 8000（BT50 optional） | 10000 8000（BT50 optional） |
| 刀库 Automatic tool changer | |||||
| Number of tools | Pcs | 24 | 24 | 24 | 24 |
| Tool change time (T–T) | s | 2.5 | 2.5 | 2.5 | 2.5 |
| Three–axis Feed | |||||
| X/Y/Z axis rapid displacement | m/min | 36/36/36 | 36/36/36 | 36/36/36 | 24/24/24 |
| Cutting feed rate | m/min | 12 | 12 | 10 | 10 |
| Machine accuracy | |||||
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeat positioning accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Motor | |||||
| （FANUC）Main motor power | KW | 7.5/11 | 7.5/11 | 46341 | 46341 |
| Three–way motor | KW | 37290 | 37290 | 37683 | 37683 |
| CNC system | FANUC（optional SIEMENS、GSK 、SYNTEC） | ||||
| Other | |||||
| Machine weight | T | 5 | 5.5 | 6.5 | 7 |
| Dimensions | mm | 2700×2300×2300 | 2700×2350×2400 | 3400×2600×2500 | 3650×2750×2850 |
