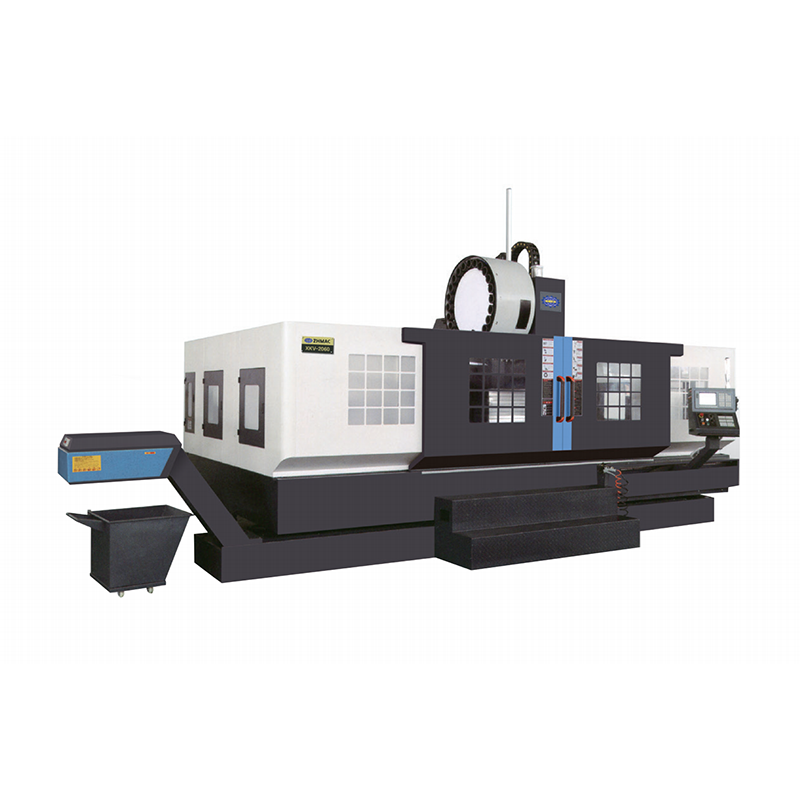

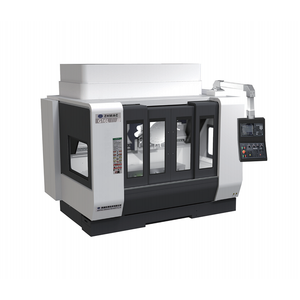

XKV series Planer bar machining center is our company's leading technology of high-end CNC machines based on research and development at home and abroad, for the plate, shaft processing precision parts, especially for mold processing can be continuously performed to achieve a clamping milling, drilling.expanding,reaming, tapping, and the two- dimensional accurate three-dimensional surface, the inclined surface.
This series of products adopts ultra-long X-axis stroke design, which is suitable for efficient processing of long workpieces and shaft workpieces. By extending the operational range, our machinery allows facilities to handle oversized materials without constant repositioning. This capability significantly reduces setup times and minimizes potential alignment errors during complex operations. Utilizing this planer bar machining center ensures consistent output quality across extended operational cycles, empowering modern factories to meet stringent production demands.
The bed and other castings are made of high-quality Mihana castings After finite element analysis, the reasonable reinforcement rib distribution makes the machine more stable. This robust structural foundation is critical for absorbing vibrations during heavy cutting tasks. Our high-end CNC machines leverage these premium castings to deliver exceptional rigidity and long-term durability. By preventing structural deformation over time, the equipment guarantees reliable performance even in continuous, high-intensity manufacturing environments to secure superior surface finishes.
The three-axis adopts heavy-duty roller guides, with longer sliders, high processing accuracy and large bearing capacity. These specialized linear guides minimize friction and wear while supporting substantial operational loads during continuous metalworking. Our carefully engineered system ensures smooth and precise movements across all axes, which is essential for detailed shaping tasks. Integrating heavy-duty roller guides allows the equipment to maintain tight tolerances, reducing scrap rates and maximizing overall production efficiency for demanding milling sequences.
Optional CNC turntable can be used to realize the turning process of shaft parts and other parts to improve the processing efficiency. This versatile addition transforms the core machine into a multi-functional powerhouse for diverse industrial applications. By facilitating multi-sided machining in a single setup, it drastically cuts down on manual handling and fixture changes. Our advanced mold manufacturing equipment becomes even more adaptable with this feature, accommodating complex geometries with ease to consolidate factory workflows.
| Project | Unit | XKV–2060 | XKV–3060 | XKV–4060 | XKV–5060 | XKV–6060 | XKV–8060 |
| Working table | |||||||
| Working table size | mm | 2000×600 | 3000×600 | 4000×600 | 5000×600 | 6000×600 | 8000×600 |
| Load capacity | kg | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 |
| Distance from table to spindle end face | mm | 100–700 | 100–700 | 100–700 | 100–700 | 100–700 | 100–700 |
| Processing range | |||||||
| X travel | mm | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 |
| Y travel | mm | 600 | 600 | 600 | 600 | 600 | 600 |
| Z travel | mm | 600 | 600 | 600 | 600 | 600 | 600 |
| Feed drive | |||||||
| Feed rate | m/min | 5 | 5 | 5 | 5 | 5 | 5 |
| Fast moving speed | m/min | 16/16/10 | 16/16/10 | 16/16/10 | 16/16/10 | 16/16/10 | 16/16/10 |
| Spindle | |||||||
| Spindle taper | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 | |
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Spindle motor | kw | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 |
| Accuracy | |||||||
| Positioning accuracy | mm | ± 0.006/500 | ± 0.006/500 | ± 0.006/500 | ± 0.006/500 | ± 0.006/500 | ± 0.006/500 |
| Repeat positioning accuracy | mm | ± 0.004/500 | ± 0.004/500 | ± 0.004/500 | ± 0.004/500 | ± 0.004/500 | ± 0.004/500 |
| Automatic tool changer | |||||||
| Robot tool magazine | pce | 24 | 24 | 24 | 24 | 24 | 24 |
| Tool change time (tool-to-tool) | sec | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Tool length | mm | 300 | 300 | 300 | 300 | 300 | 300 |
| ool length (full tool) | mm | Φ112 | Φ112 | Φ112 | Φ112 | Φ112 | Φ112 |
| Tool diameter | mm | Φ200 | Φ200 | Φ200 | Φ200 | Φ200 | Φ200 |
| Tool weight | kg | 18 | 18 | 18 | 18 | 18 | 18 |
| Other | |||||||
| Machine weight | T | 8 | 12 | 15 | 18 | 21 | 24 |
| Electricity demand | KVA | 25 | 25 | 25 | 25 | 25 | 25 |
| Air pressure requirements | Kgf/cm2 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimensions | mm | 5800×3500×2800 | 6800×3500×2800 | 7800×3500×2800 | 8800×3500×2800 | 9800×3500×2800 | 10800×3500×2800 |
Our equipment excels in producing intricate molds and high-precision components required by strict modern sectors. The robust design handles heavy cutting forces while maintaining the exact specifications needed for mold bases and core plates. Factories utilize this machinery to achieve superior surface finishes and tight tolerances on complex multidimensional geometries. By ensuring high repeatability, it consistently supports large-scale production runs without compromising on individual part quality.
The extensive processing capabilities make it highly ideal for crafting specialized automotive parts and complex aerospace components. From engine blocks to structural fuselage elements, the machine delivers the reliability demanded by these rigorous sectors. Our advanced long workpiece machining capabilities allow for the continuous milling of extended structural parts seamlessly. It provides industrial suppliers with the necessary tools to meet strict international standards and safety regulations efficiently.
Operating from our extensive facility in Nantong, Jiangsu, we specialize in delivering robust industrial equipment to global markets. Our production process integrates rigorous testing systems and advanced casting technologies to ensure every unit meets high standards. We pride ourselves on offering strong custom production capabilities tailored to specific sectors like aerospace and wind power. By maintaining strict quality control and holding ISO 9001 and CE certifications, we provide reliable machinery that enhances your operational workflows.
We have established a robust global service network covering regions across Southeast Asia, the Middle East, Europe, and the Americas. Our dedicated after-sales service team provides fast technical support to resolve any operational challenges promptly and professionally. With a focus on fast delivery and strong cost control, we help you optimize your supply chain and reduce unwanted downtime. Partnering with a reliable industrial equipment supplier ensures you receive continuous technical backing throughout the entire machinery lifecycle.
It is widely used in mold manufacturing, automotive parts, wind and nuclear power, marine vessels, and military aerospace sectors.
Yes, we provide customized machine tool solutions tailored to the special operational needs of specific heavy industries.
Our manufacturing processes are officially certified with ISO 9001:2015 and comply strictly with CE low voltage directives.
We utilize premium Mihana castings and perform strict finite element analysis to optimize the internal reinforcement rib distribution.
