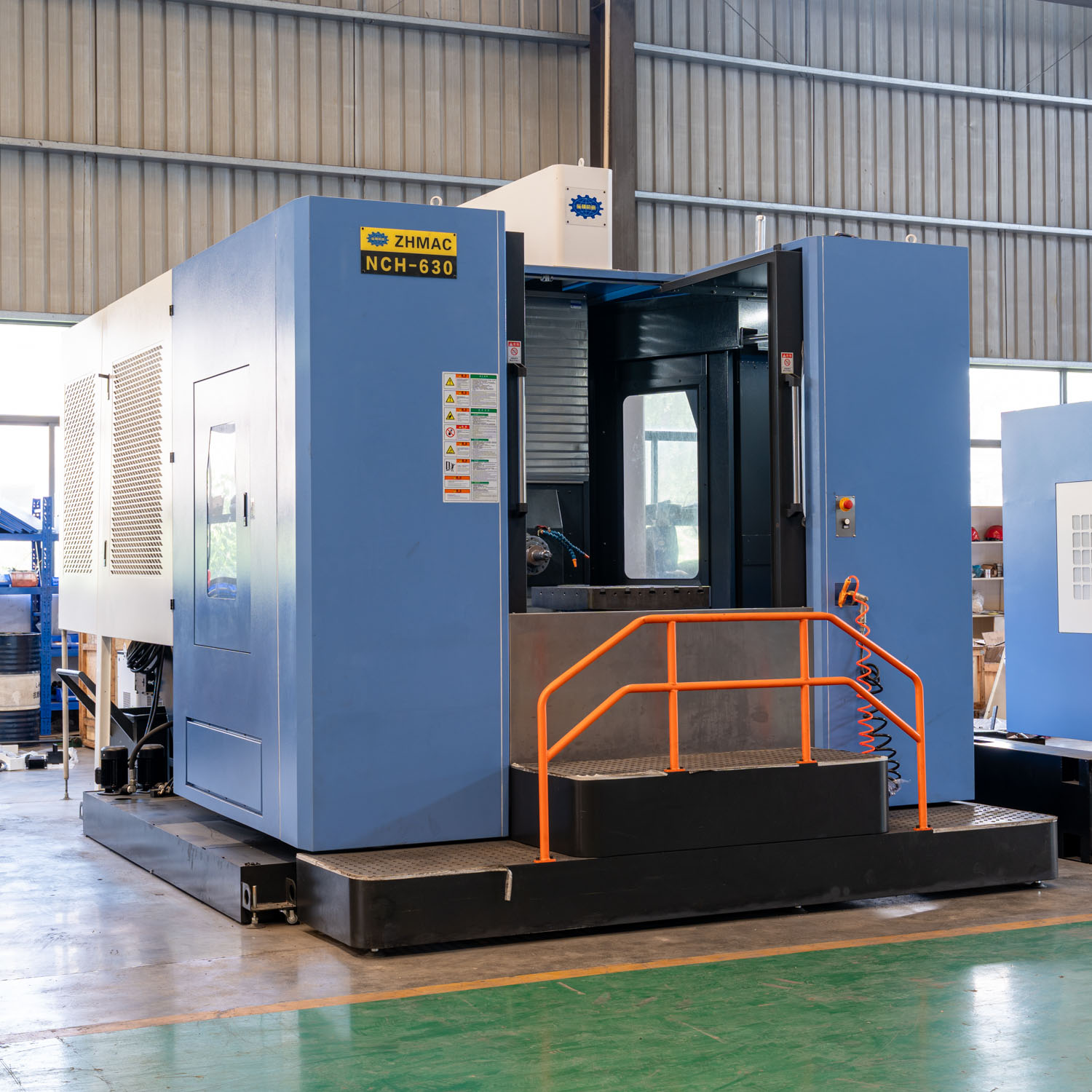

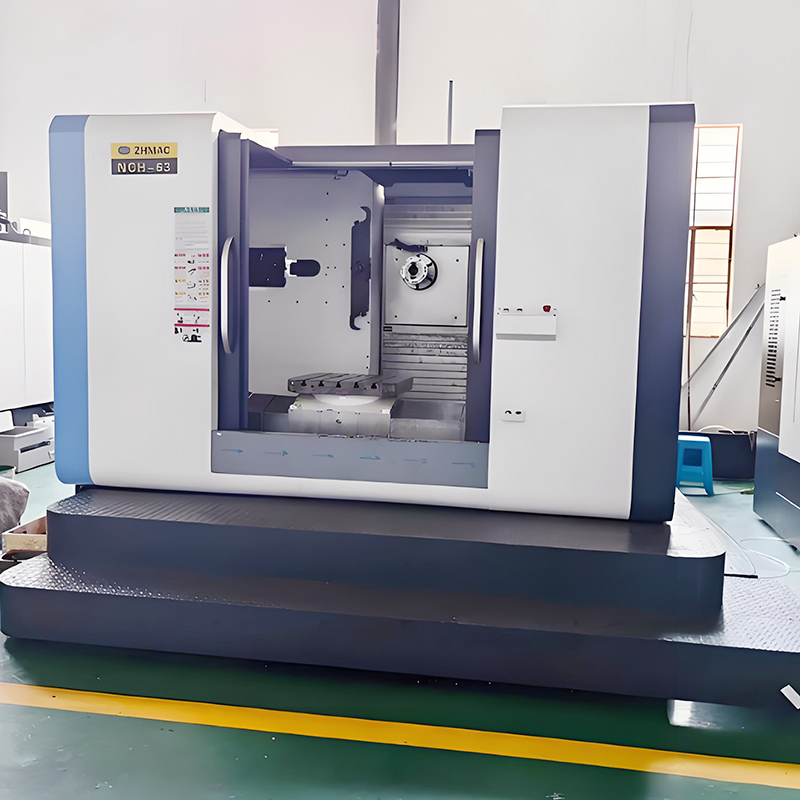

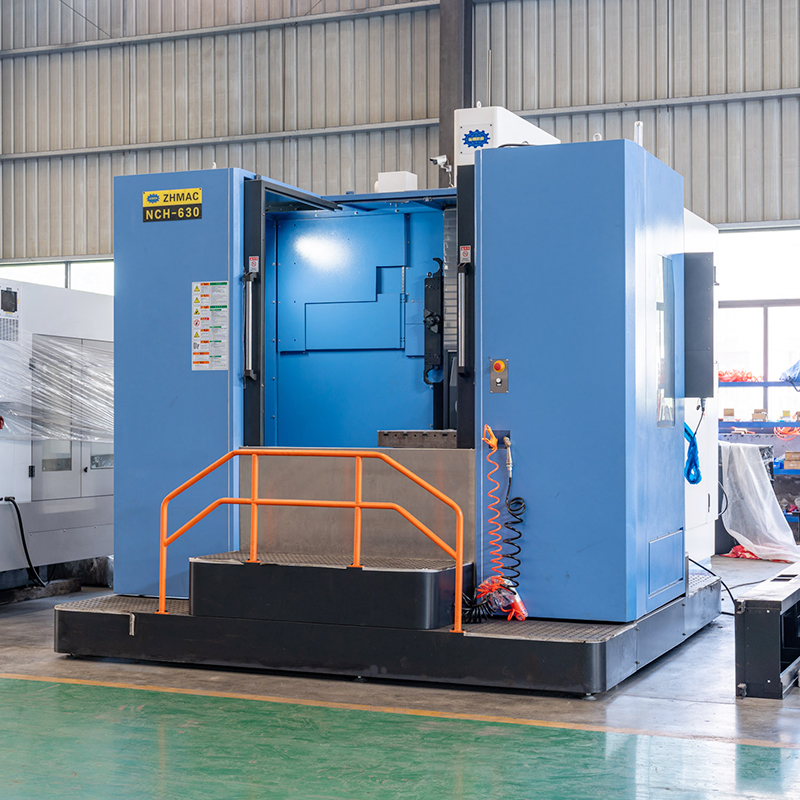

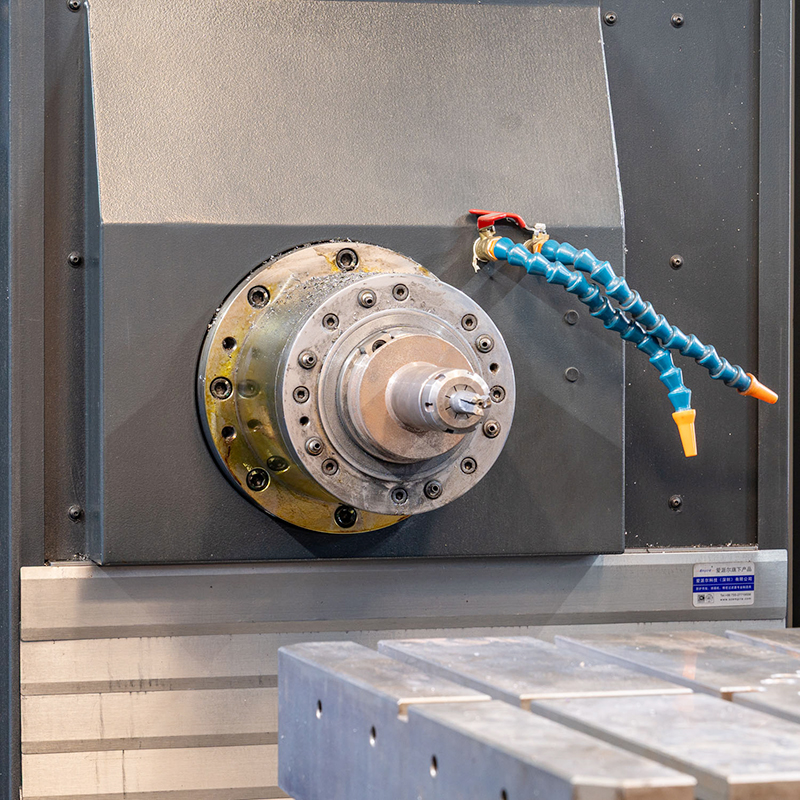

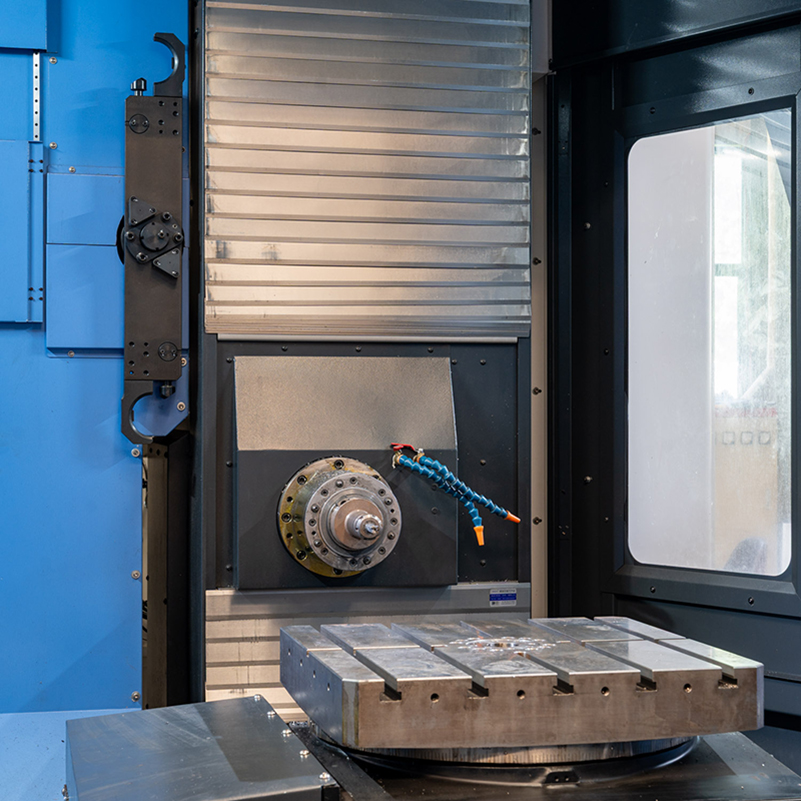

NCH series moving column horizontal machining center is our company's introduction of foreigntechnology,digestion and absorption, the use of mechatronics design, beautiful appearance, can be high-speed precision cutting Which can automatically and continuously perform multiple processes such as milling, drilling, boring expanding, reaming, tapping,tapping etc. We have engineered our moving column horizontal machining centers to meet the rigorous demands of modern industrial production. This equipment serves as a comprehensive metalworking solution for facilities requiring continuous operational capability and superior dimensional control. Implementing this system elevates daily output while maintaining exact engineering tolerances across large batches.
|
|
| Project | Unit | NCH50 （Cross-slide indexing single unit） | NCH63 （Inverted T-shaped graduated scale, single unit） | NCH80 （Inverted T-shaped graduated scale, single unit） | NCH100 （Inverted T-shaped graduated scale, single unit） | |
| Working table | Working table size | mm | 500×500 | 630×630 | 800×800 | 1000×1000 |
| Pallet load weight | kg | 400 | 1200 | 1400 | 1600 | |
| Number of trays | pcs | 1 | 1 | 1 | 1 | |
| T-shaped groove (number of grooves × width×spacng) | mm | 5×18×100 | 5×18×125 | 5×22×160 | 7×22×125 | |
| Maximum turning diameter/height | mm | Φ800 | Φ1300 | Φ1500 | Φ1800 | |
| Minimum division of table | ° | 1° ×360 | 1° ×360 | 1° ×360 | 1° ×360 | |
| Maximum speed of workbench | m/min | 12 | 12 | 10 | 10 | |
| Travel | X axis | mm | 700 | 1000 | 1200 | 1600 |
| Y axis | mm | 600 | 850 | 850 | 1000 | |
| Z axis | mm | 580 | 950 | 1050 | 1000 | |
| Center of table to spindle end face | mm | 120–700 | 200–1150 | 200–1250 | 250–1250 | |
| Table surface to spindle center | mm | 90–690 | 0–850 | 0–850 | 0–1000 | |
| Spindle | Spindle speed range | rpm | 8000 | 6000 | 6000 | 6000 |
| Spindle motor | kw | 11月15日 | 15/18.5 | 15/18.5 | 18.5/22 | |
| Taper hole | BT40 | BT50 | BT50 | BT50 | ||
| Feed rate | Rapid feed rate | m/min | 40/36/40 | 30 | 24 | 24 |
| Cutting feed rate | m/min | 10 | 10 | 10 | 10 | |
| ATC | Number of tools | T | 24 | 40 | 40 | 40 |
| Tool diameter | mm | Φ78/（full） Φ120（empty） | Φ125/（full） Φ250（empty） | Φ125/（full） Φ250（empty） | Φ125/（full） Φ250（empty） | |
| Tool weight | kg | 8 | 25 | 25 | 25 | |
| Tool length | mm | 300 | 350 | 400 | 400 | |
| (ISO230) | Positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Accuracy | ||||||
| Repeat positioning accuracy | mm | 0.006 | 0.006 | 0.006 | 0.006 | |
| B-axis positioning accuracy | ” | 10 | 10 | 10 | 10 | |
| B-axis repeat positioning accuracy | ” | 5 | 2 | 2 | 2 | |
| Machine size | Area | mm | 2800×2600×2800 | 5000×3500×2800 | 6300×4000×3700 | 6500×4700×3700 |
| Weight | T | 6 | 12.5 | 14 | 16 | |
| Machine power | Compressed air pressure | MPa | 0.5~0.8 | |||
| Power supply | 3-phase AC380V，50/60HZ，40KVA | |||||
| Phase AC380V，50/60HZ，40KVA | ||||||

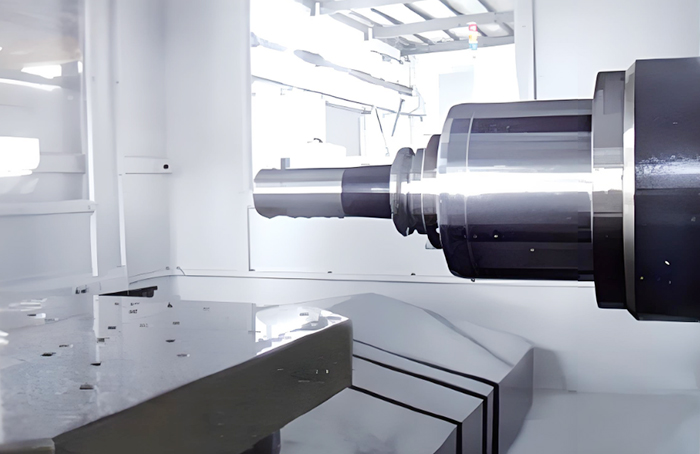

The whole machine adopts an inverted "T'structure, the columns move back and forth, and the table moves left and right. The whole machine has high rigidity, high stability and high reliability. The three axes are directly connected and driven, which is suitable for high-speed feed cutting. By utilizing this advanced configuration, our NCH series machining center ensures minimal vibration during intense operational cycles. Operators can rely on this robust foundation to execute heavy-duty tasks without compromising the structural integrity or performance of the equipment.
The ball screw of each axis is pre-tensioned to further improve the transmission rigidity and positioning accuracy. This meticulous engineering approach prevents thermal deformation during prolonged use, securing exact dimensional consistency for manufactured components. With these enhanced mechanical parts, our high-speed precision cutting machine consistently delivers tighter tolerances for complex industrial parts. Your facility will benefit from reduced error rates and superior final product quality.
The machine is equipped with automatic chip removal function and large flow chip washing function. Maintaining a clean workspace is critical for uninterrupted manufacturing, and this integrated system effortlessly handles debris generated by extensive milling and boring operations. Large-scale facilities benefit greatly from this automated cleaning mechanism, which significantly minimizes manual maintenance downtime. The continuous clearing of metal chips also protects the cutting tools from unnecessary wear and tear.
The protective shape is beautiful, and the operation and maintenance are convenient. We prioritize user-friendly interfaces and highly accessible machine bays to ensure technicians can perform routine checks swiftly. This thoughtful layout of our industrial metal machining equipment not only enhances the visual appeal of your factory floor but also maximizes overall workplace efficiency. Routine servicing becomes a streamlined process, allowing your production line to remain active and profitable.

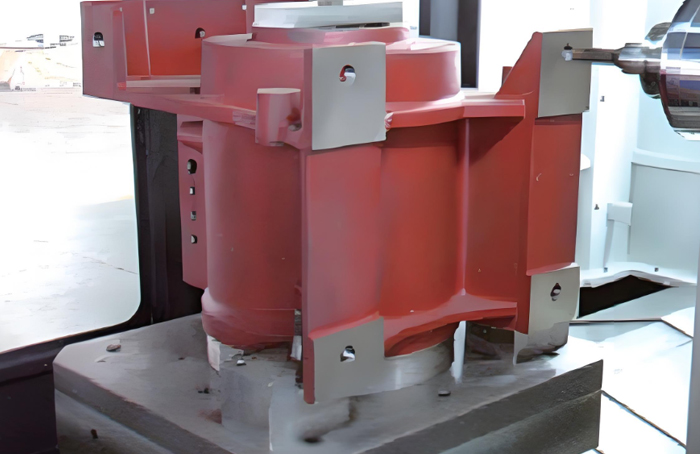

Our versatile machines are extensively utilized in the automotive sector for crafting intricate engine blocks and transmission cases. The continuous milling and drilling capabilities ensure rapid production of high-volume metal components required by global supply chains. Facilities depend on our robust systems to maintain strict quality standards while significantly accelerating their daily output rates.
The aerospace industry demands absolute accuracy, making our highly stable equipment an ideal choice for shaping critical flight components. Utilizing the advanced transmission systems guarantees the exact positioning needed for lightweight yet durable aerospace alloys. Our CNC milling and boring center provides the necessary reliability for manufacturers dealing with zero-margin-for-error engineering projects.
We integrate cutting-edge global technology into our machinery to deliver unmatched performance for modern production environments. Every unit undergoes rigorous quality testing to ensure it meets the highest operational standards before reaching your facility. Choosing our equipment means investing in a durable, long-lasting solution that permanently elevates your overall manufacturing capacity.
Providing exceptional machinery is only part of our commitment to empowering your industrial operations. We offer thorough technical guidance and maintenance advice to keep your systems running at peak efficiency year-round. Our dedicated team is always ready to assist with customized setups tailored to your specific processing requirements and facility workflow.
It can automatically and continuously perform multiple processes such as milling, drilling, boring, expanding, reaming, and tapping.
It features an automatic chip removal function alongside a large flow chip washing system to effortlessly maintain a clean cutting environment.
This structural design guarantees high rigidity, high stability, and high reliability, making it highly suitable for demanding high-speed feed cutting operations.
The ball screw of each axis is pre-tensioned, which significantly improves both the transmission rigidity and the long-term positioning accuracy of the machine.
Yes, the protective shape is designed not only to be aesthetically pleasing but also to ensure that daily operation and routine maintenance are convenient.
