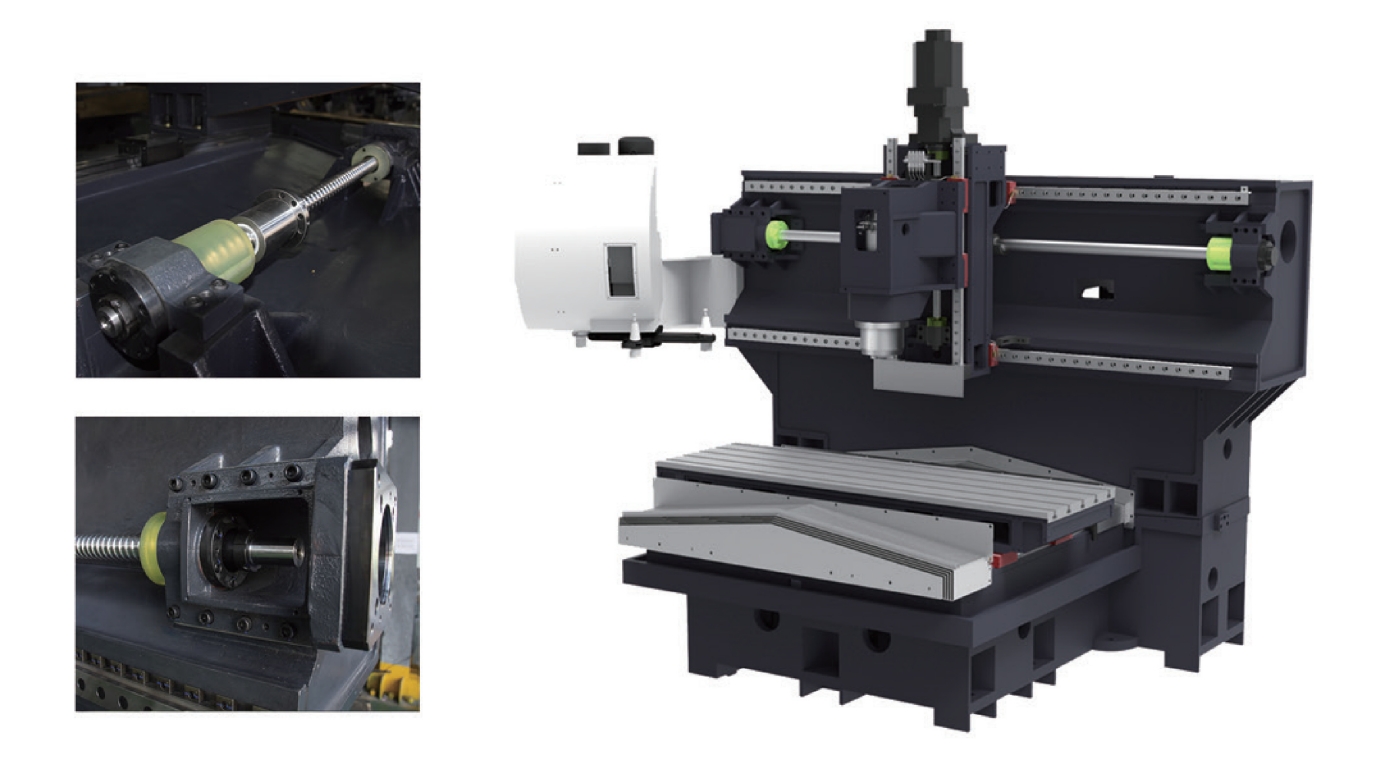

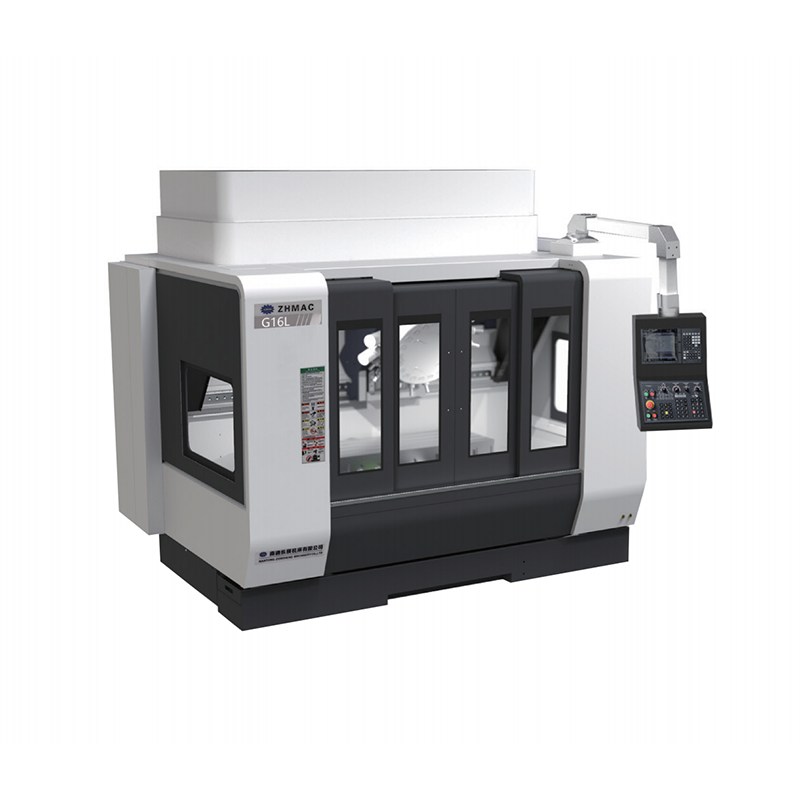

Discover the exceptional capabilities of our Long Strip Drilling And Milling Machining Center. This advanced CNC vertical machining center is specifically engineered for processing elongated workpieces with outstanding efficiency. By integrating robust structural design with intelligent control systems, it delivers stable operation under demanding industrial conditions. Our equipment ensures smooth material handling and superior surface finishes, making it an ideal choice for enterprises seeking reliable production upgrades.
Our Long Strip Drilling And Milling Machining Center offers impressive travel dimensions to accommodate diverse production requirements. The X-axis stroke provides expansive options of 1600mm and 2000mm, while the Y and Z axes offer 500mm and 300mm respectively. These generous dimensions allow for the seamless processing of large-scale parts without frequent repositioning. Consequently, operators can significantly reduce non-cutting time while maintaining exceptional structural integrity throughout the entire operation.
Equipped with powerful spindle motors, this high-speed machining equipment guarantees exceptional material removal rates. Users can select between spindle speeds reaching up to 20000 rpm or standard configurations of 8000/10000 rpm based on specific material needs. The spindle taper seamlessly accommodates both BT30 and BT40 specifications, ensuring strong compatibility with various cutting tools. This flexibility empowers our machinery to handle intricate milling tasks with remarkable ease and stability.
Maintaining exact tolerances is crucial for modern metalworking, and our precision CNC drilling machine excels in this area. It consistently achieves a positioning accuracy of JIS ±0.008/300mm and a repeated positioning accuracy of JIS ±0.005/300mm. By utilizing premium linear guide rails and meticulously calibrated components, the machine minimizes deviations during complex multi-axis movements. This rigorous attention to detail ensures that every finished component meets the strictest industrial quality standards.
To maximize workflow continuity, our industrial drilling center features a highly efficient automatic tool changing system. Depending on the chosen model, the tool magazine capacity efficiently accommodates 16, 21, or 24 handles. This substantial capacity allows for continuous, uninterrupted processing of multifaceted parts requiring various drilling and milling steps. By reducing manual tool interventions, the system drastically improves overall workplace productivity and significantly lowers unexpected operational downtime.
The robust construction of our CNC milling machine for long parts makes it indispensable for manufacturing heavy-duty components. The 600kg maximum table capacity easily supports substantial metal blocks utilized in automotive frameworks and industrial machinery. Its superior rigidity prevents unwanted vibrations during deep cutting procedures. Therefore, production facilities can consistently output highly durable parts that withstand severe mechanical stress in their final structural applications.
Our machinery provides the exact precision required for the aerospace sector and specialized metalworking fields. The seamless integration with optional control systems like MITSUBISHI, FANUC, or SYNTEC allows for complex trajectory programming. This adaptability is vital when carving intricate geometries or drilling precise hole patterns on long extruded profiles. By deploying our advanced solutions, facilities can confidently take on complex contracts requiring flawless operational execution.
We deliver comprehensive industrial solutions tailored to elevate your enterprise manufacturing capabilities. By focusing on cutting-edge machining technology, our technical team ensures every unit performs flawlessly under continuous operational stress. We provide robust technical services and dedicated support to optimize your daily workflow. Partnering with our expert team guarantees access to high-performance equipment designed to scale alongside your growing production demands and market expansion goals.
Our equipment offers flexible configuration options, supporting industry-standard control systems including MITSUBISHI, FANUC, and SYNTEC.
The highly durable worktable is engineered to safely support a maximum capacity of 600 kg across all available models.
Depending on your selected model and specific machining requirements, the machine reliably supports both BT30 and BT40 spindle tapers.
| Project | Unit | G16 | G16L | G20 | G20L |
| X axis stroke | mm | 1600 | 1600 | 2000 | 2000 |
| Y axis stroke | mm | 500 | 500 | 500 | 500 |
| Z axis stroke | mm | 300 | 300 | 300 | 300 |
| Distance from spindle end face to worktable | mm | 150–450 | 150–450 | 150–450 | 150–450 |
| Distance from spindle center to column protection surface | mm | 450 | 450 | 546 | 546 |
| Table size | mm | 1700×500 | 1700×500 | 2100×500 | 2100×500 |
| Max capacity | kg | 600 | 600 | 600 | 600 |
| Table T–groove | mm | 5–18/125 | 5–18/125 | 5–18/100 | 5–18/100 |
| Spindle taper | BT30/Φ100 | BT40/Φ100 | BT30/Φ100 | BT40/Φ100 | |
| Spindle speed | rpm | 20000 | 8000/10000 | 20000 | 8000/10000 |
| Spindle motor | kw | 5.5 | 5.5 | 5.5 | 5.5 |
| （X/Y/Z）Three axis motor | kw | 1.5/1.5/3.0 | 1.5/1.5/3.0 | 1.5/1.5/3.0 | 1.5/1.5/3.0 |
| Control system (optional) | MISUBISHI / FANUC / SYNTEC | ||||
| X,Y,Z axis rapid moving speed | m/min | 32/48/48 | 24/36/36 | 24/48/48 | 18/36/36 |
| Positioning accuracy | mm | JIS ±0.008/300 | JIS ±0.008/300 | JIS ±0.008/300 | JIS ±0.008/300 |
| Repeated positioning accuracy | mm | JIS ±0.005/300 | JIS ±0.005/300 | JIS ±0.005/300 | JIS ±0.005/300 |
| Pressure | kg/cm2 | ≥6 | ≥6 | ≥6 | ≥6 |
| Tool magazine capacity | handle | 16/21 | 24 | 16/21 | 24 |
| Machine weight | T | about5.5 | about5.6 | about6.1 | about6.2 |
