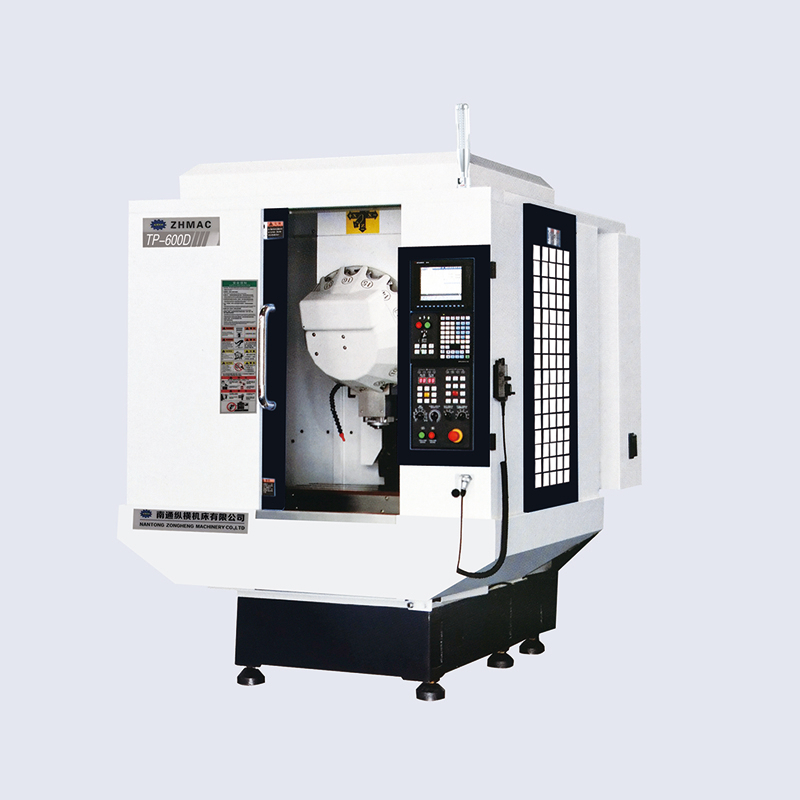

Our high speed drilling center delivers exceptional performance for complex machining tasks across various industrial sectors. Engineered for reliability, this equipment integrates advanced structural designs to ensure consistent output and extended operational life. Businesses seeking advanced machining solutions will find our equipment to be a durable, precise, and highly efficient addition to their modern manufacturing operations. We prioritize providing robust machinery that meets stringent production demands.
| Project | Unit | TP-500D | TP-600D | TP-800D |
| X axis stroke | mm | 500 | 600 | 800 |
| Y axis stroke | mm | 400 | 400 | 500 |
| Z axis stroke | mm | 300 | 330 | 330 |
| Distance from spindle end face to worktable | mm | 150-450 | 150-480 | 150-480 |
| Distance from spindle center to column protection surface | mm | 464 | 464 | 546 |
| Table size | mm | 650×400 | 700×420 | 1000×500 |
| Max capacity | kg | 250 | 250 | 350 |
| Table T-groove | mm | 3-14/125 | 3-14/125 | 3-18/100 |
| Spindle taper | BT30/Φ100 | BT30/Φ100 | BT30/Φ100 | |
| Spindle speed | rpm | 20000（Standard configuration） | 20000（Standard configuration） | 20000（Standard configuration） |
| Spindle motor | kw | 5.5 | 5.5 | 5.5 |
| （X/Y/Z）Three axis motor | kw | 2.4/2.4/3.1 | 2.4/2.4/3.1 | 2.4/2.4/3.1 |
| Control system (optional) | MISUBISHI / FANUC / SYNTEC | |||
| X,Y,Z axis rapid moving speed | m/min | 36/36/36 | 48/48/48 | 48/48/48 |
| Positioning accuracy | mm | JIS ±0.008/300 | JIS ±0.008/300 | JIS ±0.008/300 |
| Repeated positioning accuracy | mm | JIS ±0.005/300 | JIS ±0.005/300 | JIS ±0.005/300 |
| Pressure | kg/cm2 | ≥6 | ≥6 | ≥6 |
| Tool magazine capacity | handle | 16/21 | 16/21 | 16/21 |
| Machine weight | T | 2.5 | 3 | 3.5 |
| Machine size (L×W×H) | mm | 1760×2300×2000 | 1760×2300×2000 | 2100×2450×2900 |

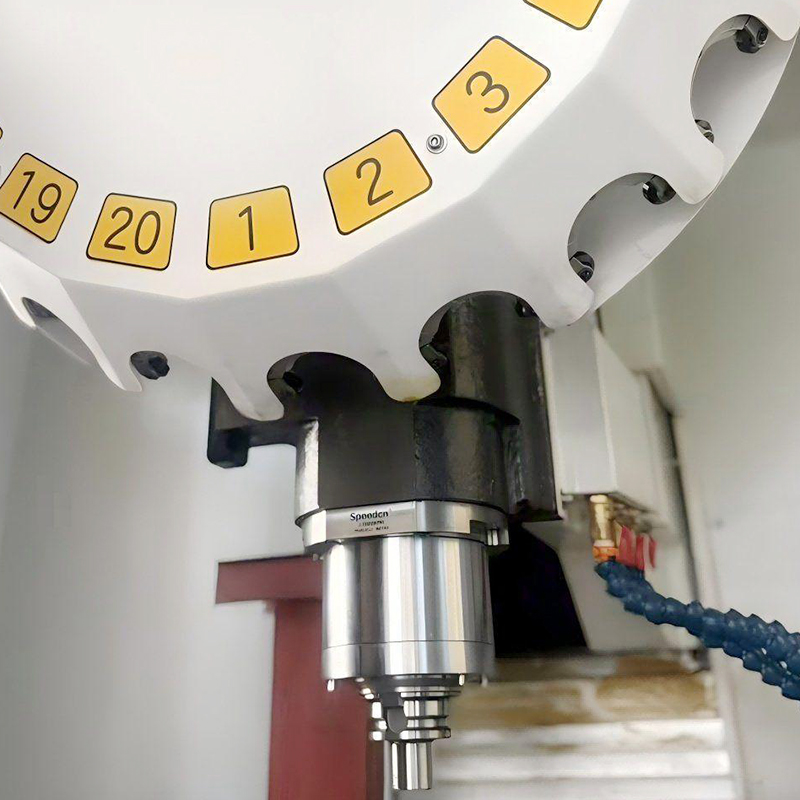

ATC turret automatic tool change device, quick tool change (knife to knife)time is 1.4 seconds. This rapid tool change capability significantly reduces idle time during complex machining cycles. By minimizing non-productive tool swapping durations, our high precision drilling center maximizes overall throughput for bulk production lines. The reliable turret mechanism ensures smooth transitions between different tools, enhancing operational efficiency and lowering cycle times for demanding projects.

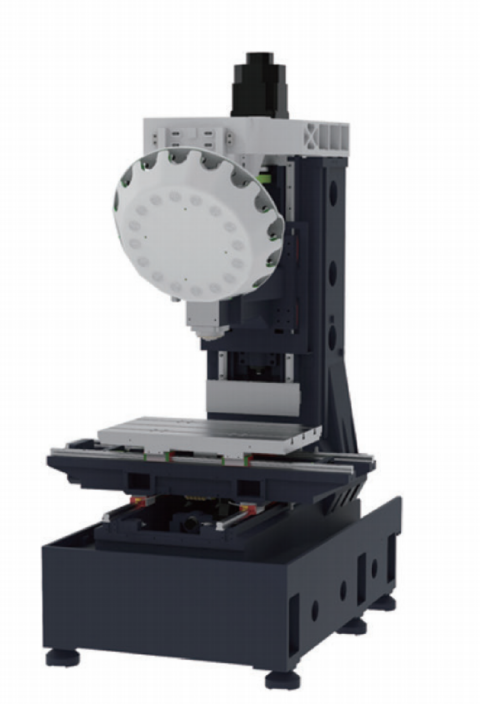

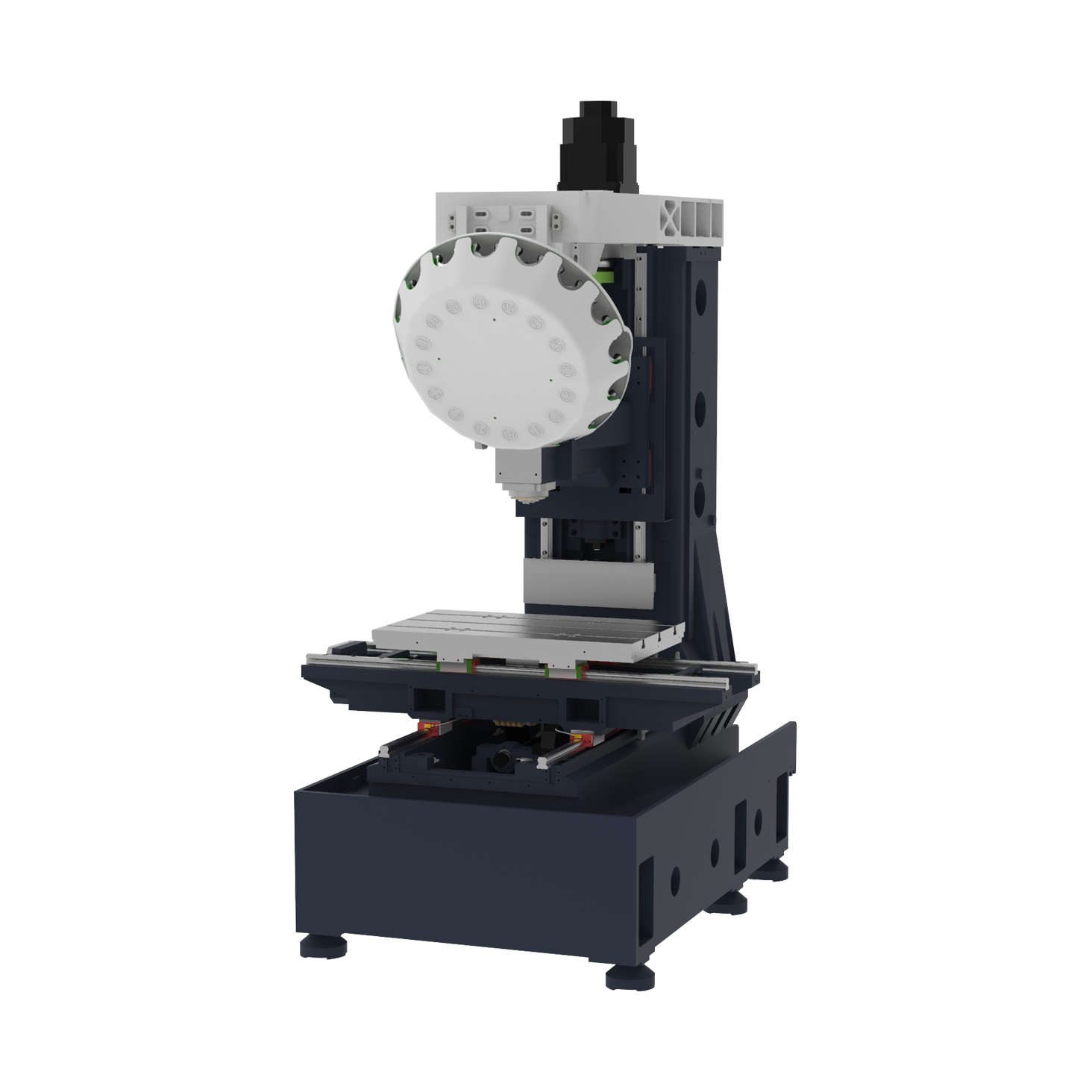

Super large column stable,no deformation, high-speed displacement 36m/min. The robust column structure provides essential rigidity to handle intense cutting forces without compromising dimensional accuracy. Maintaining stability is crucial when executing intricate operations, and our equipment guarantees consistent precision even during continuous, heavy-duty usage. The impressive displacement speed further accelerates the positioning process, allowing for faster part completion and optimized workflow in industrial environments.

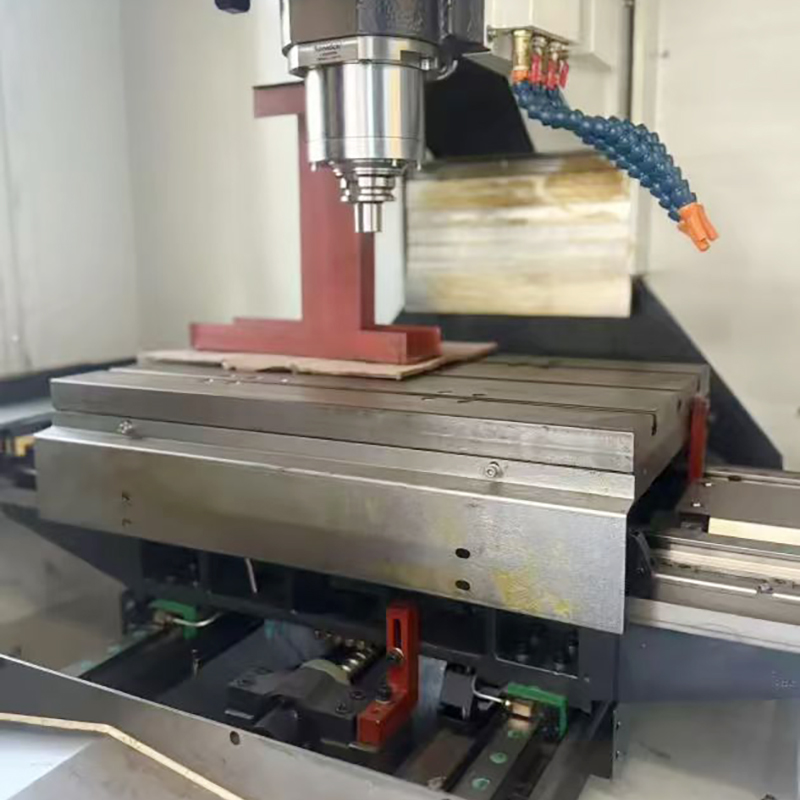

Large span base, solid six-point support structure, high-speed displacement, no vibration, no deformation. This expertly engineered base design effectively absorbs vibrations generated during high-speed machining processes. A vibration-free environment is vital for extending tool life and achieving superior surface finishes on machined components. By ensuring structural integrity, our vertical machining center delivers reliable and repeatable results, managing critical manufacturing tasks and ensuring every part meets strict quality criteria.
High precision,high speed,efficient continuous processing, humanized conversational interface,easy to operate. The intuitive control system empowers operators to easily program and monitor complex machining operations. Reducing the learning curve allows your workforce to quickly adapt and maintain high productivity levels. The combination of precision and a user-friendly interface makes our CNC drilling center a highly effective asset for modern manufacturing facilities aiming for streamlined operations and reduced operator fatigue during extended shifts.
The machine adopts back-row chip removal, with the best chip removal Angle and large flow chip flushing system. Efficient chip evacuation is necessary to maintain a clean workspace and prevent potential interference with the cutting area. By effectively clearing debris, the system protects both the workpiece and the machine components from damage. This automated flushing mechanism ensures uninterrupted operation, reducing the need for manual cleaning and increasing overall machine uptime.
Our drilling and milling machine is highly suitable for fabricating complex automotive parts that require tight tolerances and consistent quality. The rapid tool changes and stable structural design enable the efficient production of engine components and structural fittings, meeting the rigorous standards of the transportation sector.
The precision offered by this series makes it ideal for processing delicate electronic housings and sophisticated medical device components. Reliable performance ensures that stringent industry requirements are consistently met during the fabrication process, providing safe and accurate parts for critical applications.
Partnering with an experienced industrial solutions provider ensures you receive equipment tailored to your rigorous production requirements. We focus on delivering durable, high-performance machinery that integrates seamlessly into your existing manufacturing workflows. Our commitment to technological advancement helps your facility maintain a competitive edge.
We provide comprehensive technical services and support to ensure your equipment operates at peak efficiency throughout its lifecycle. From initial setup to ongoing maintenance, our expert team is available to assist with any operational challenges. Choosing our machining equipment means investing in long-term reliability and a dedicated industrial partnership.
The series includes the TP-5000, TP-6000, and TP-8000 models to suit different capacity needs.
The standard configuration features a spindle speed of 20000 rpm for efficient cutting.
You can choose from MISUBISHI, FANUC, or SYNTEC control systems based on your facility's requirements.
