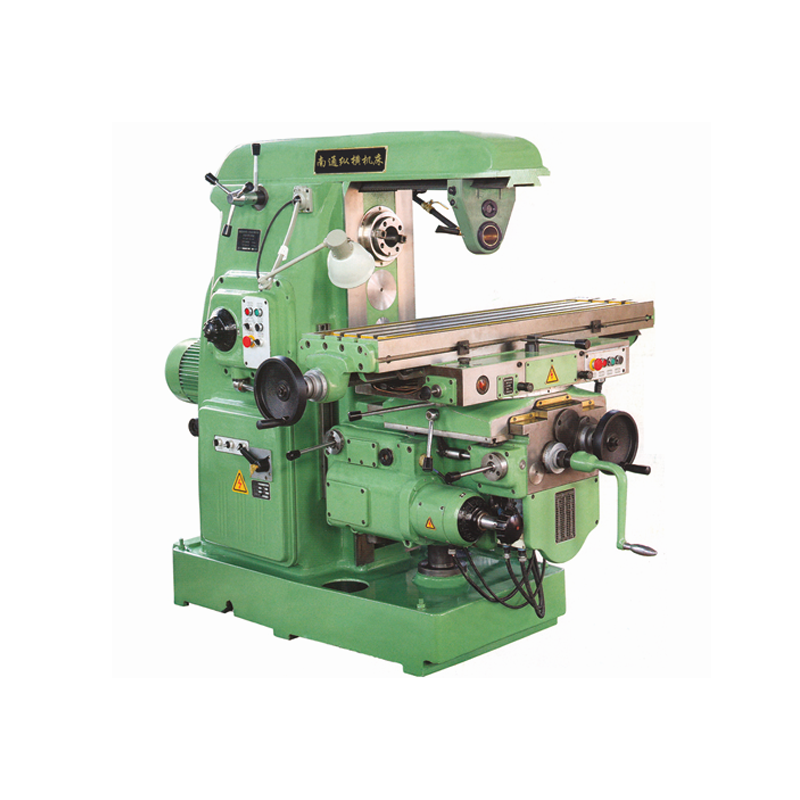

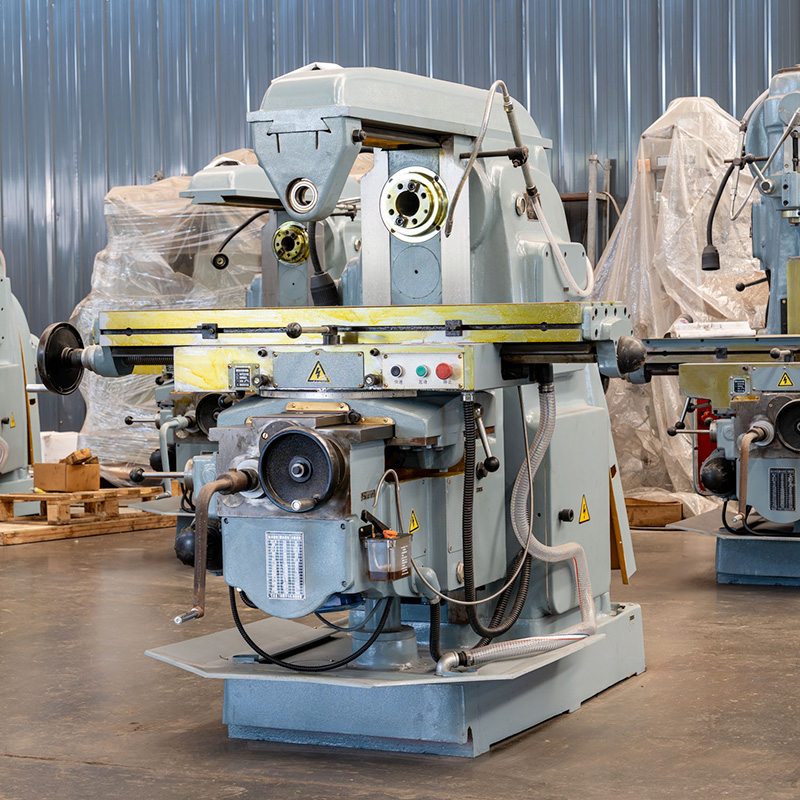

At ZHMAC, our Horizontal Lifting Table Milling Machine series is engineered to deliver exceptional performance for modern industrial environments. Designed to handle demanding material shaping operations, this equipment provides the stability and power required for complex industrial solutions. By integrating high-strength structural components with an optimized lifting table mechanism, our equipment ensures reliable operation under substantial workloads. Whether your facility focuses on precision mold making or large-scale component production, this Horizontal Milling Machine stands as a robust asset for upgrading your production line.
| Project | Unit | XW6132 | XW6140 | ||
| Table | Working table surface (WxL) | mm | 320×1325 | 400×1700 | 400×2000 |
| Max.Table Load | kg | 500 | 800 | ||
| T–slots (Number) | several | 3 | 3 | ||
| T–slot (Width) | mm | 18 | 18 | ||
| T–slot (Distance) | mm | 70 | 90 | ||
| Travel | Longitudinal Travel (X) | mm | 700/680 | 900/880 | 1200/1180 |
| Cross Travel (Y) | mm | 250/240 | 315/300 | ||
| Vertical Travel (Z) | mm | 320/300 | 380/360 | ||
| Spindle | Spindle Taper | ISO（7:24）No.50 | ISO（7:24）No.50 | ||
| Speed range | r/min | 30~1500 | 30~1500 | ||
| Speed step | Step | 18 | 18 | ||
| Max.swivel angle | dep | ±45 | ±45 | ||
| Distance from spindle nose to working table Surface Min/Max | mm | 215/470 | 255/570 | ||
| Distance from spindle center to vertical guide rail | mm | 30/350 | 30/410 | ||
| Feed | Cutting feed rate | mm/min | X:23.5–1180 Y:15–786 Z:8–394 | ||
| Rapid Feed Rate(XYZ) | mm/min | X、Y:2300 Z:770 | X、Y:2300 Z:770 | ||
| 进给级数 Feed Step | Step | 18 | 18 | ||
| Motor | Power of Spindle Motor | kw | 7.5 | 11 | |
| 进给电机功率 Power of Feed Motor | kw | 2.2 | 3 | ||
| Other | Machine dimensions (LxWxH) | mm | 2294×1170×1665 | 2556×2159×1830 | |
| Wachine weight | kg | 2800 | 3850 | ||
The worktable of our Heavy-Duty Milling Machine is built to accommodate substantial weights, supporting a maximum table load of up to 500kg for the XW6132 model and 800kg for the XW6140 model. This robust weight-bearing capacity is complemented by three standard 18mm T-slots designed to secure heavy workpieces firmly during operation. The rigid construction minimizes vibrations during high-speed cutting, ensuring the overall accuracy of the machined parts and significantly extending the operational lifespan of the equipment.

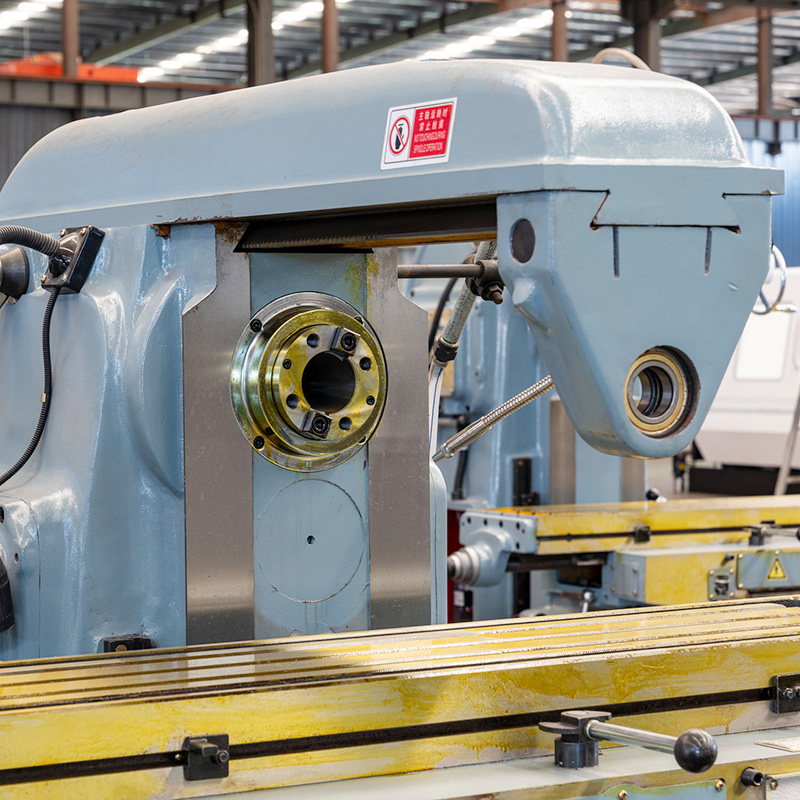

Equipped with a standard ISO (7:24) No.50 spindle taper, our Precision Milling Machine ensures optimal power transmission and broad tool compatibility for diverse milling tasks. The spindle speed ranges from 30 to 1500 r/min, distributed across 18 distinct steps to provide operators with precise control over the cutting process. Coupled with a powerful spindle motor of up to 11kw, this setup allows for highly efficient material removal across different metal types, enhancing the overall productivity of your workshop.
Our equipment features an extensive travel range across longitudinal, cross, and vertical axes to accommodate large and complex workpieces with ease. The maximum rapid feed rate reaches 2300 mm/min for the X and Y axes, and 770 mm/min for the Z axis, minimizing non-cutting time and boosting daily output. With 18 cutting feed steps, operators can fine-tune the feed rate to match specific material requirements, ensuring superior surface finishes and extremely precise dimensional accuracy.
Our Industrial Machining Center solutions are widely implemented across various demanding sectors that require reliable metal shaping and sizing. This machine excels in processing planes, grooves, and complex angles for the automotive, aerospace, and general machinery manufacturing industries. By offering consistent precision and handling heavy workpieces effortlessly, it provides processing facilities with the flexibility needed to tackle both single-piece custom jobs and larger volume production runs without compromising on quality or turnaround time.
When sourcing equipment for a busy production line, continuous reliability and consistent output are paramount. By selecting our Metal Cutting Equipment, you gain access to machinery crafted with rigorous quality control and engineered for long-term endurance. We focus on providing solutions that minimize downtime and maximize your operational efficiency. Our robust engineering ensures that each unit stands up to the rigors of heavy continuous use, making it a highly dependable and profitable addition to any professional machining facility.
The spindle on this machine offers a maximum swivel angle of ±45 degrees, allowing for versatile angular milling and complex workpiece shaping.
This equipment is designed with a standard ISO (7:24) No.50 spindle taper, ensuring strong tool holding and broad compatibility with industrial tooling.
The worktable features three standard T-slots, each with a width of 18mm, providing secure and flexible mounting options for various heavy workpieces.
The rapid feed rate is engineered for efficiency, offering 2300 mm/min for both the X and Y axes, and 770 mm/min for the vertical Z axis.
The equipment features a highly adjustable spindle speed range from 30 to 1500 r/min, divided into 18 steps for optimal cutting control.
