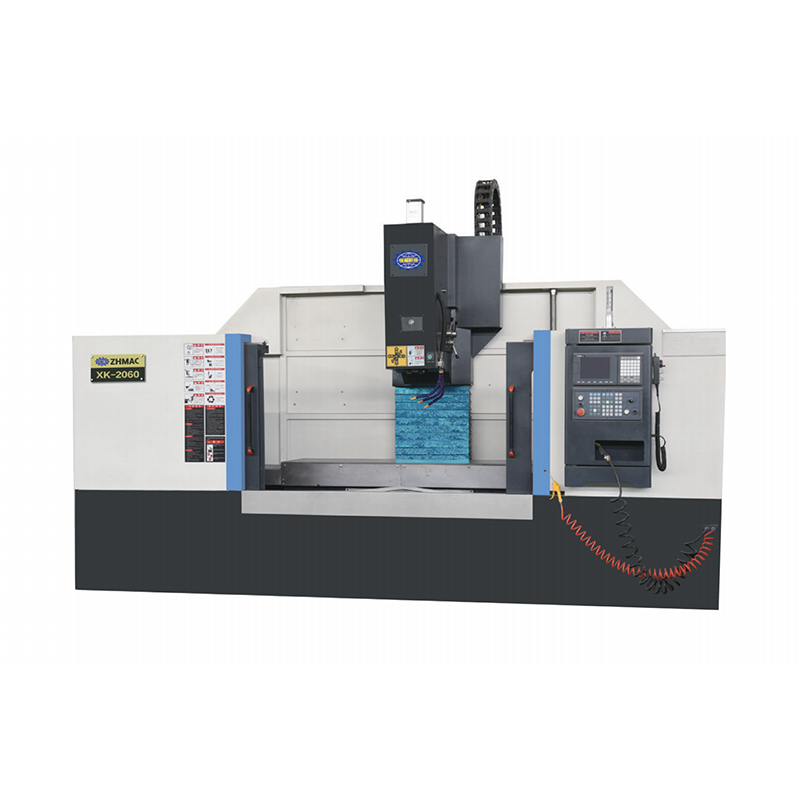

XK series CNC bed milling machine is suitable for various rod milling cutters, circular milling cutters and angle milling cutters for machining planes, bevels and grooves. This product has reliable structure, good performance, stable quality and easy operation. It can achieve high-speed cutting and heavy-duty cutting. Engineered for modern industrial environments, our equipment delivers exceptional productivity and seamless integration into your existing workflow. The robust design ensures that long-term operations maintain consistent accuracy, reducing overall downtime and operational costs for heavy industrial projects.
The machine adopts high-quality Mihana castings, and the bed adopts a four-track structure with ultra-wide gauge and excellent stability. To further enhance durability under intense workloads, these materials are meticulously selected to absorb vibrations effectively. This solid foundation minimizes deflection during rigorous operations, securing precise output even when handling complex geometries. Such structural integrity is paramount for enterprises seeking dependable metalworking machine tools that consistently meet stringent quality control standards over extended lifespans.
All the castings such as the bed are secondary tempered, and the surface of the guide rail is quenched with high frequency, which has good rigidity and high precision. This rigorous thermal treatment process guarantees that the core components resist deformation under thermal stress and heavy operational demands. By maintaining geometric accuracy over time, our heavy-duty cutting equipment provides a reliable platform for intricate tasks. Operators can confidently push boundaries, knowing the foundational elements are built to withstand severe conditions.
All three axes use imported polytetrafluoroethylene, which has a small friction coefficient, good shock absorption, and wear resistance. The main shaft is driven by grinding gear with low noise, large cutting torque and high transmission efficiency. This combination drastically improves the dynamic response of the system, allowing for smoother transitions and finer surface finishes. The reduction in operational noise also creates a better workspace, while the enhanced torque ensures that dense materials are processed without compromising speed or reliability.
The entire system is equipped with a BT50 spindle as standard and a pneumatic tooling mechanism. The tool change is fast, the efficiency is high, and the labor intensity of workers is reduced. The machine adopts beautiful and simple protection design to provide a good production environment. These user-centric enhancements streamline the daily workflow, allowing operators to focus on process optimization rather than manual adjustments. Upgrading to such industrial machining solutions directly translates to increased throughput and safer facility operations.
| Project | Unit | XK1660 | XK2060 | XK2280 | |
| Working table | Working table size | mm | 1600×600 | 2000×600 | 2200×800 |
| Pallet load weight | kg | 1000 | 1500 | 2000 | |
| T-shaped groove | mm | 5×18×95 | 5×18×100 | 5×18×150 | |
| (number of grooves × width × spacing) | |||||
| Travel | X axis | mm | 1300 | 1600 | 2000 |
| Y axis | mm | 600 | 650 | 800 | |
| Z axis | mm | 650 | 700 | 800 | |
| Distance from table to spindle end face | mm | 120-820 | 120-820 | 120-920 | |
| Distance from the pressing plate surface of the column to the center of the spindle | 710 | 710 | 1020 | ||
| Spindle | Spindle speed range | rpm | 50-1430 | 50-1430（50HZ） | 50-1430（50HZ） |
| Spindle motor | kw | 11 | 11 | 15 | |
| Taper hole | NT50 | NT50 | NT50 | ||
| Feed rate | X/Y/Z-axis feed rate | m/min | 0-1000 | 0-1000 | 0-1000 |
| Maximum motion speed of X/Y/Z axis | m/min | 5000 | 5000 | 5000 | |
| (ISO230) Accuracy | Positioning accuracy | mm | ±0.01/500 | ±0.01/500 | ±0.01/300 |
| Repeat positioning accuracy | mm | ±0.005/500 | ±0.005/500 | ±0.005/500 | |
| Other | CNC system | GSK/KND | |||
| Machine size | mm | 4200×2600×2900 | 5000×2700×3000 | 6000×3200×3200 | |
| Weight | kg | about5500 | about6200 | about12500 | |
Our custom precision milling machines are widely utilized across a diverse spectrum of demanding sectors. The product is widely used in mold manufacturing, automotive parts, wind and nuclear power, marine vessels, military aerospace, university teaching and other fields. The capability to process horizontal planes, vertical planes, keyways, and complex curved surfaces makes it an indispensable asset. Whether executing small-scale prototyping or facilitating large-volume continuous production, the equipment adapts effortlessly to the specific material and accuracy requirements of your advanced engineering projects.
Located in East China, our enterprise has an extensive global reach. It not only sells well in the domestic market, but also is exported to many countries and regions such as Southeast Asia, the Middle East, Brazil, India, Africa, Europe and America. We provide advanced casting technology, strict testing system, positioning accuracy and cutting accuracy inspection. Coupled with powerful order taking ability and strong cost control ability, we deliver premium machinery tailored to elevate your operational success.
XK series CNC bed milling machine is suitable for various rod milling cutters, circular milling cutters and angle milling cutters for machining planes, bevels and grooves.
The entire system is equipped with a BT50 spindle as standard and a pneumatic tooling mechanism.
Yes, we are able to provide customized machine tool solutions according to the special needs of specific industries such as aerospace, molds, and automobiles.
We strictly adhere to a sound quality system, complying with the GB/T 19001-2015 ISO 9001:2015 standard and CE directives.
