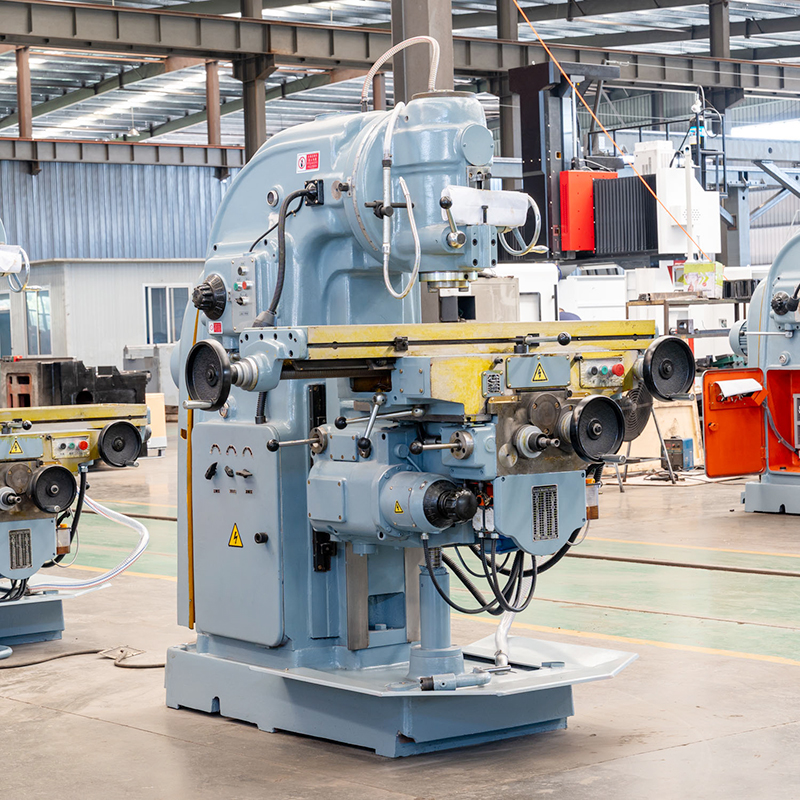

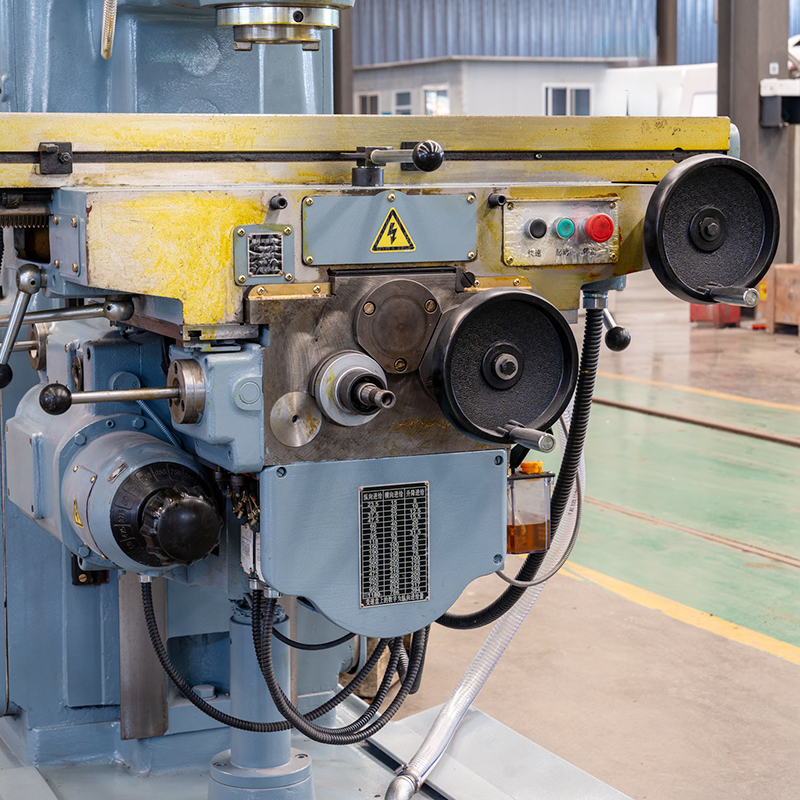

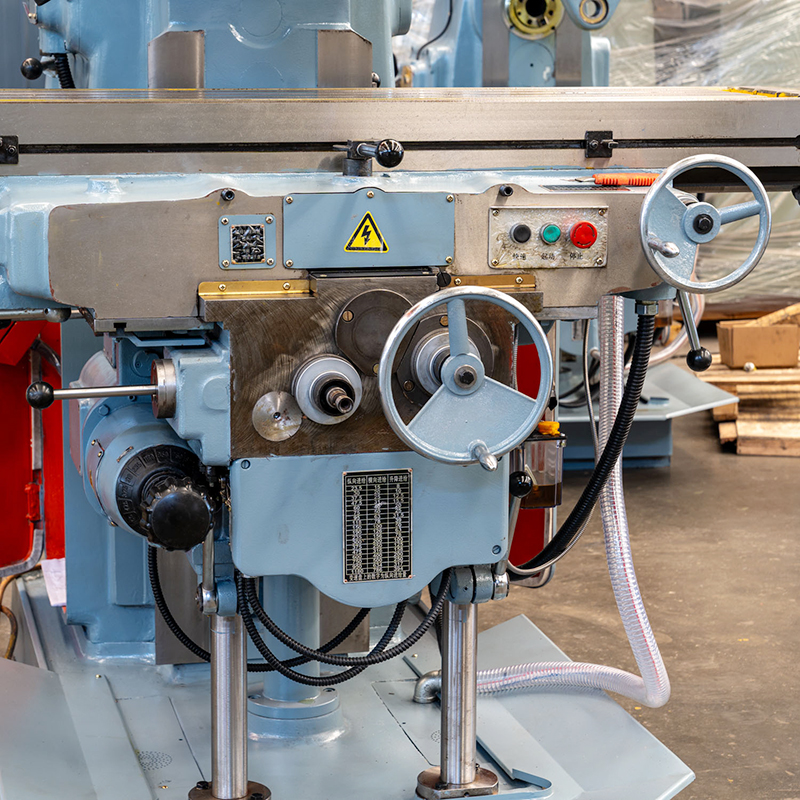

Engineered for demanding industrial applications, our vertical lifting table milling machine series offers exceptional performance for complex metal cutting tasks. This robust equipment efficiently handles horizontal and vertical plane processing, ensuring high precision for various metalwork projects. Built with durable components and advanced structural integrity, our milling equipment delivers consistent reliability. Corporations seeking dependable machining solutions will find our machines highly capable of optimizing production workflows while maintaining strict dimensional accuracy across extensive operations.
| Project | Unit | X5032 | X5040 | ||
| Table | Working table surface (WxL) | mm | 320×1250 | 400×1700 | 400×2000 |
| Max.Table Load | kg | 500 | 800 | ||
| T-slots (Number) | several | 3 | 3 | ||
| T-slot (Width) | mm | 18 | 18 | ||
| T-slot (Distance) | mm | 70 | 90 | ||
| Travel | Longitudinal Travel (X) | mm | 700/680 | 900/880 | 1200/1180 |
| Cross Travel (Y) | mm | 255/240 | 315/300 | ||
| Vertical Travel (Z) | mm | 370/350 | 385/265 | ||
| Spindle | Spindle Taper | ISO（7:24）No.50 | ISO（7:24）No.50 | ||
| Speed range | r/min | 30–1500 | 30–1500 | ||
| Speed step | Step | 18 | 18 | ||
| Axial motion distance | mm | 85 | 85 | ||
| Max.swivel angle | dep | ±45 | ±45 | ||
| Distance from spindle nose to working table Surface Min/Max | mm | 45/415 | 30/500 | ||
| Distance from spindle center to vertical guide rail | mm | 350 | 450 | ||
| Feed | Cutting feed rate | mm/min | X,Y:23.5–1180 Z:8–394 | X,Y:23.5–1180 Z:8–394 | |
| Rapid Feed Rate(XYZ) | mm/min | X:2300 Y:1540 Z:770 | X:2300 Y:1540 Z:770 | ||
| Feed Step | Step | 18 | 18 | ||
| Motor | Power of Spindle Motor | kw | 7.5 | 11 | |
| Power of Feed Motor | kw | 1.5 | 3 | ||
| Other | Machine dimensions (LxWxH) | mm | 2295×1770×2094 | 2556×2159×2258 | |
| Wachine weight | kg | 2800 | 4250 | ||

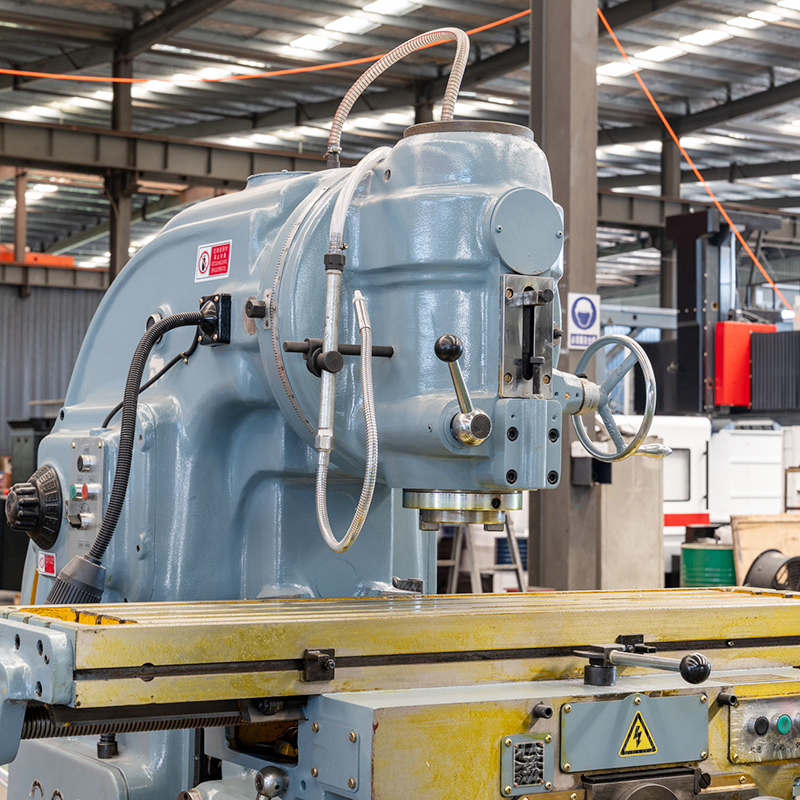

Our equipment features a powerful ISO 50 taper spindle, providing outstanding torque and rotational stability. With speeds from 30 to 1500 r/min across 18 distinct steps, operators can easily match rates to specific material hardness. This specific configuration minimizes vibration during heavy duty operations, extending tool life and enhancing the surface finish of machined parts.

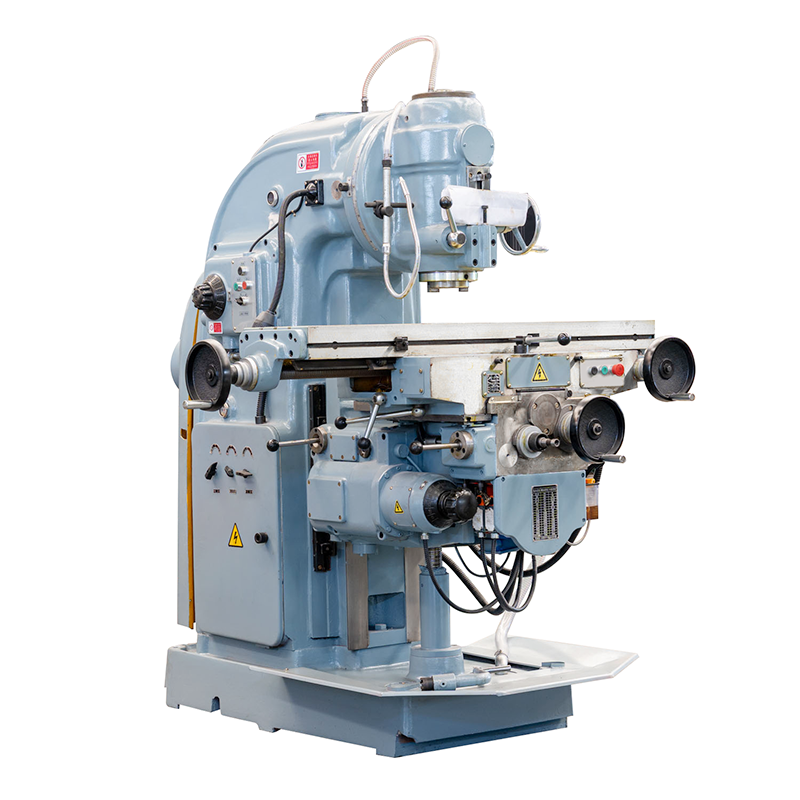

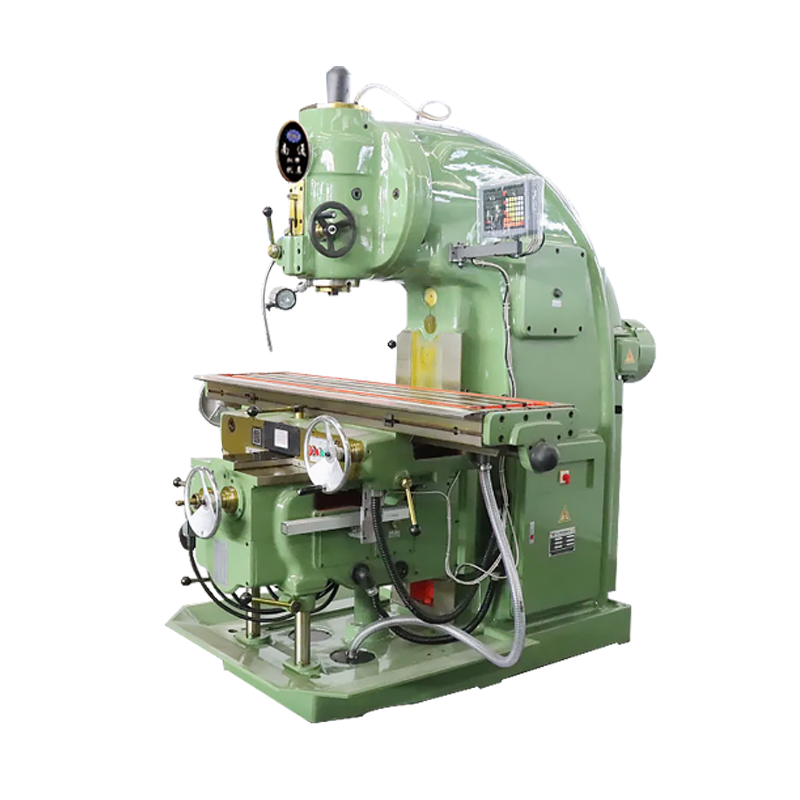

To accommodate substantial industrial materials, our X5032 milling machine and X5040 milling machine models feature spacious working tables with exceptional load-bearing capabilities. The worktables can confidently support maximum loads ranging from 500 kg to 800 kg without compromising structural alignment. Featuring multiple wide T-slots, the tables provide secure clamping for oversized components, ensuring safety and precision during intensive metal removal processes.
Flexibility is a critical advantage of our metal milling equipment, featuring an adjustable spindle head reaching a 145-degree swivel angle. This broad angular range allows operators to execute complex beveling and angled cutting procedures without needing to reposition the entire workpiece. Such maneuverability significantly reduces setup times and improves overall workshop efficiency when dealing with intricate multi-sided machining requirements.
Our heavy duty metal machining tool excels in rigorous environments where removing large volumes of material is necessary. Industrial facilities utilize this equipment to shape structural steel, cast iron blocks, and toughened alloys with remarkable consistency. The superior spindle motor power ensures smooth processing of challenging metals, making it an indispensable asset for large scale fabrication.
Beyond standard operations, our vertical lifting table milling machine is perfectly suited for crafting intricate planar surfaces and specialized geometric features. Machinists rely on its precise axial motion and multi-directional feed rates to create precise slots, keyways, and angular profiles on essential components. The inherent stability of the lifting table design guarantees that depth and alignment remain uniform throughout the entire machining cycle.
Delivering flawless industrial machinery is our priority. Every unit undergoes rigorous geometric and functional inspections prior to shipment. We utilize advanced measuring instruments to verify travel accuracy, spindle runout, and table flatness, guaranteeing compliance with stringent international industrial standards. By maintaining these uncompromising quality protocols, we ensure long term operational reliability for your manufacturing facilities.
We understand that uninterrupted production is vital for corporate success. Our expert engineering team provides comprehensive guidance covering installation, maintenance, and operational troubleshooting for your milling equipment. We maintain a responsive communication channel to address technical inquiries promptly, ensuring that your machinery continues to operate at peak efficiency. Partnering with us means securing continuous backing for your long-term industrial projects.
Our machine features a versatile spindle speed range from 30 to 1500 r/min, adjustable across 18 steps for optimal cutting flexibility.
The X5032 model supports up to 500 kg, while the X5040 model handles up to 800 kg, accommodating substantial industrial workpieces safely.
This equipment utilizes a standard ISO 50 (7:24) spindle taper, ensuring strong tool retention and high compatibility with industrial tooling.
Yes, the spindle head features an impressive maximum swivel angle of 145 degrees to facilitate diverse and complex angular milling tasks.
