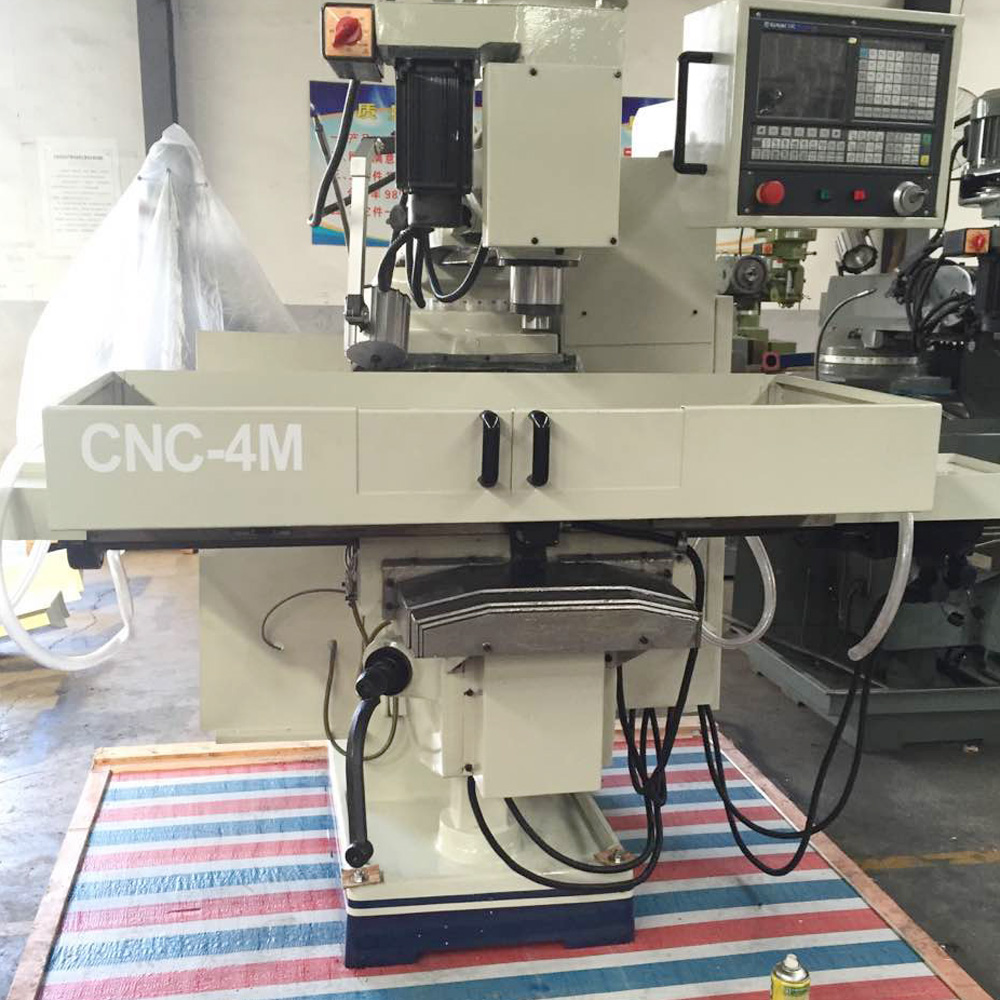

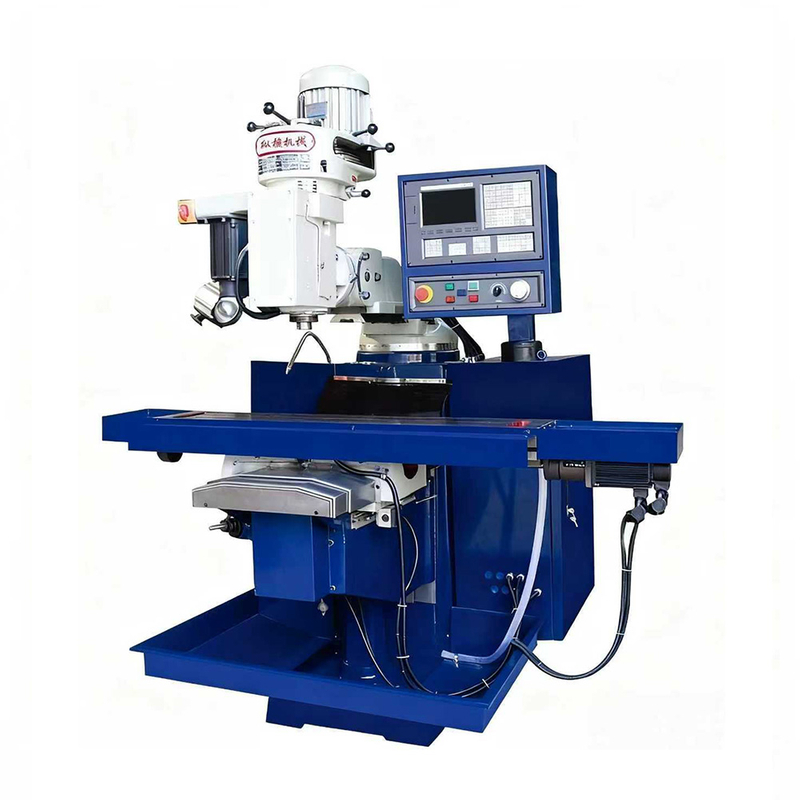

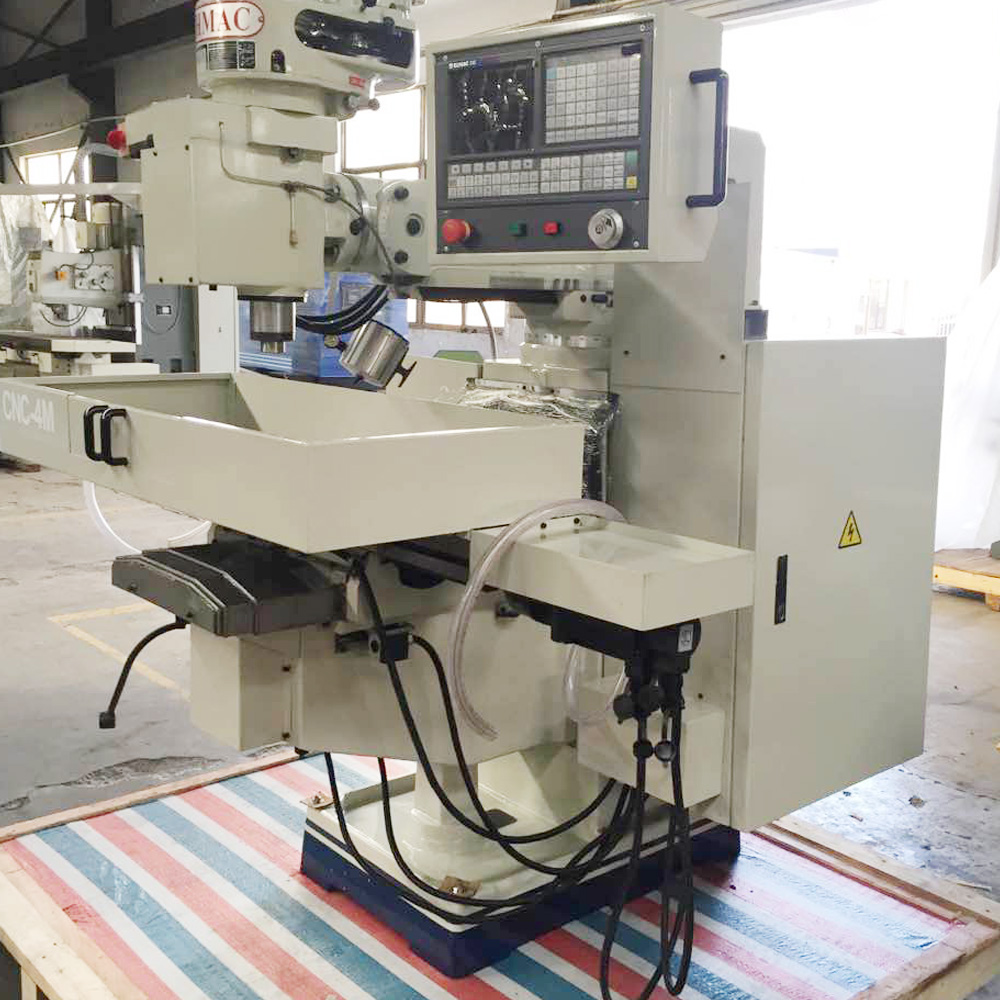

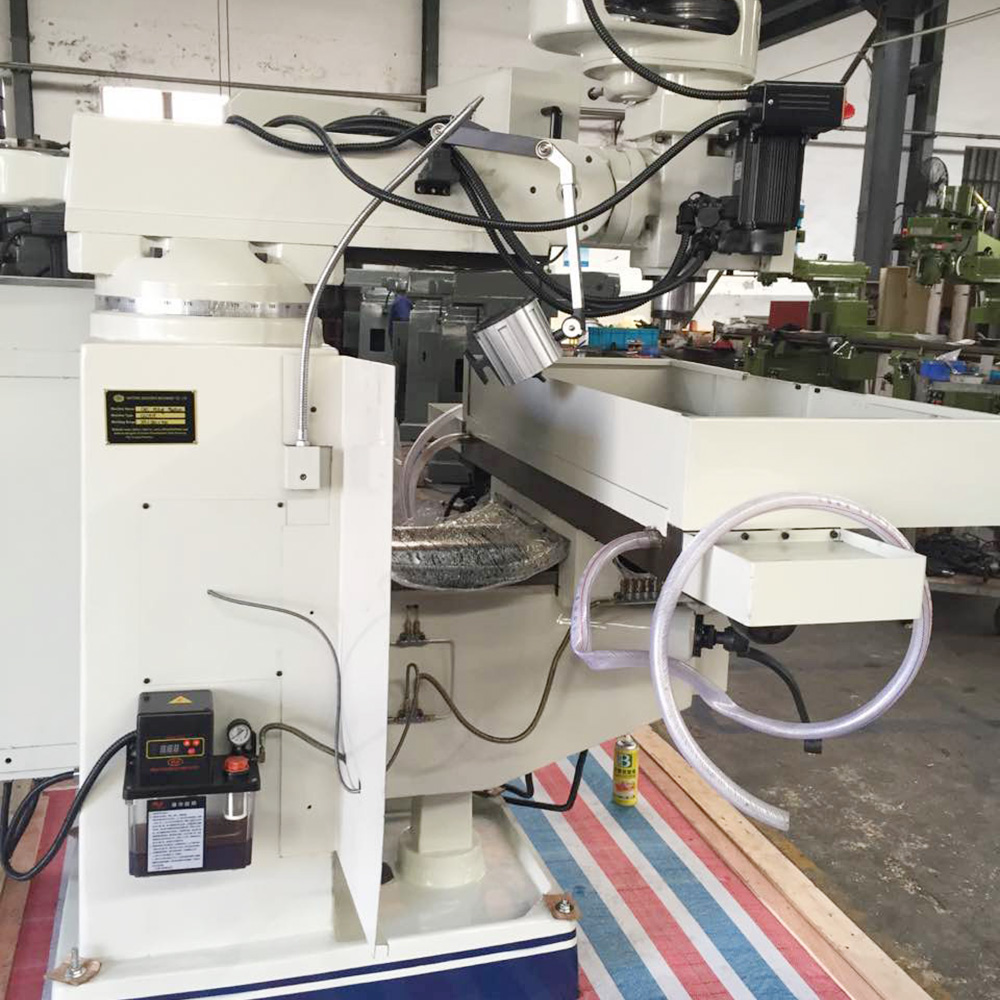

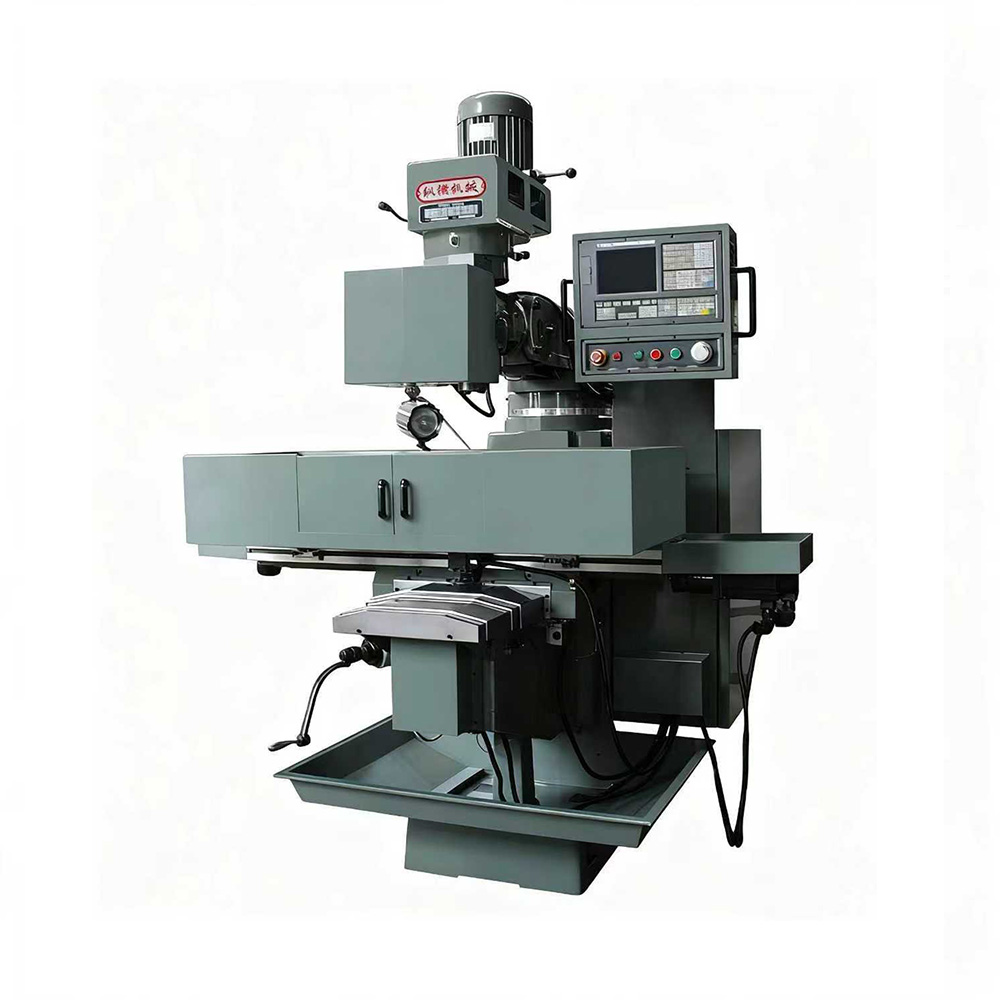

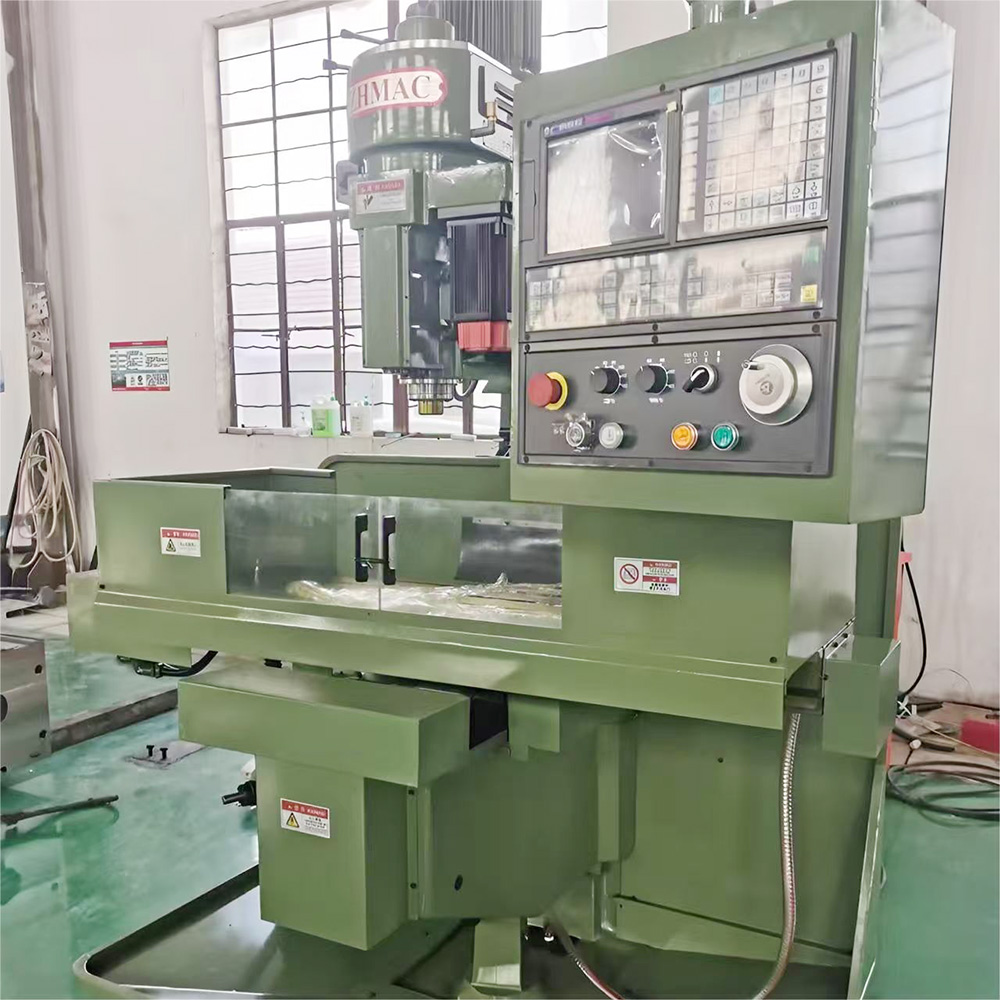

This highly efficient CNC Milling Machine represents a significant advancement in modern metal fabrication and precision engineering. Engineered for industrial applications, our equipment delivers exceptional stability and reliability during continuous operational cycles. Companies seeking to upgrade their production capabilities will find this equipment indispensable for handling complex geometric components. The robust architecture ensures long-term operational consistency across various demanding industrial environments. It perfectly balances cutting-edge technology with user-friendly control mechanisms, streamlining your entire machining workflow.
Project | Unit | CNC4M | CNC5M |
Main Motor Power | KW | 1.8 | 2.2 |
Spindle Taper | R8 | R8 | |
Spindle Pipe Diameter | mm | 85.725 | 85.725 |
Spindle Speeds | rpm | 50Hz 65-4500 | 50Hz 65-4500 |
60Hz 80-5440 | 60Hz 80-5440 | ||
T-SlotS | 60 × 3 × 65 | 60 × 3 × 70 | |
Working Table Size | mm | 1270 × 254 | 1370 × 305 |
X-stroke | mm | 700 | 750 |
Y-Stroke | mm | 360 | 380 |
Spindle quill travel | mm | 95 | 95 |
Spindle End To Table Surface | mm | 400 | 420 |
Spindle End To Table Surface | mm | 0-400 | 0-450 |
X/Y/Z Rapid Moving | m/min | 5/5/3 | 5/5/3 |
Servo Motor Parameters | 6N.m∕6N.m∕6N.m | ||
Accuracy | 0.01 Positioning accuracy0.02, Repeat positioning acc∪racyO.O1 | ||
（XYZ） Guide rail Shape | ▲ ■▲ | ▲ ■■ | |
Mechanical load | kg | 300 | 400 |
Machine Dimensions （ L× W× H ） | mm | 1730 × 1700 × 2150 | 2030 ×1800 × 2300 |
Net Weight | kg | 1400 | 1600 |
CNC system | KND/GSK CNC |
Using the Taiwan advanced CNC milling head, strong cutting force, high rigidity, high efficiency, precision and durability. This core component allows operators to tackle challenging materials without compromising on the final surface finish. The sophisticated milling mechanism significantly reduces vibration during high-speed operations. This translates to extended tool life and fewer maintenance interruptions during critical production runs. Consistent spindle performance guarantees that every machined part meets the strictest quality control standards.
The machine adopts high quality Meehanite casting. This Meehanite casting machine tool excels at dampening operational vibrations and resisting thermal deformation under intense working conditions. Such a solid base is crucial for maintaining exact tolerances over years of continuous service. Industrial facilities benefit greatly from this robust framework, as it minimizes structural wear and tear. Your investment is protected by a chassis designed to withstand the most rigorous machining demands.
Three axis adopts the grinding ball screw. This advanced drive system ensures smooth and highly accurate power transmission across all movement planes. It eliminates backlash and guarantees precise positioning for complex multi-dimensional cutting paths. Operators can rely on this mechanism for repeatable accuracy, even when executing intricate programmed designs. The reduced friction inherent in this setup also contributes to lower energy consumption and less mechanical wear throughout its entire lifecycle.
Guide rail of machine tool and the work table surface through heat treatment hardening, high abrasion resistance, ensure the machining accuracy. This specialized hardening process protects vital contact surfaces from degradation caused by heavy workpieces. The enhanced durability means the equipment retains its structural integrity under continuous loads. Facilities can process massive metallic blocks with absolute confidence in the machine's dimensional stability. The resulting longevity lowers total operational costs significantly.
This versatile industrial machining center is widely utilized in complex mold manufacturing and delicate automotive parts fabrication. The inherent precision makes it perfectly suited for crafting detailed cavities and intricate tooling profiles. Engineers rely on its consistent performance to produce engine components with exact tolerances. The ability to handle hard metals seamlessly elevates the overall production standard. It acts as a cornerstone for facilities demanding absolute perfection in every customized output.
The equipment extensively supports critical sectors including wind and nuclear power, marine vessels, and military aerospace. These high-stakes industries demand flawless execution, which this high rigidity machine tool consistently delivers. Whether machining turbine components or specialized aerospace frameworks, the equipment maintains strict compliance with industry specifications. The robust platform effortlessly accommodates heavy-duty materials required in these specialized fields. This exceptional adaptability actively advances complex industrial projects.
We employ advanced casting technology and a strict testing system, including positioning accuracy and cutting accuracy inspections. Our dedicated quality assurance team utilizes sophisticated three-coordinate measuring instruments to verify every specification. This rigorous approach ensures each unit leaving our facility performs flawlessly in real-world industrial scenarios. The integration of Super Audio Quenching further enhances the structural resilience of our equipment. Clients receive reliable machinery that immediately elevates internal production capabilities.
We provide global services exported to Southeast Asia, the Middle East, Brazil, India, Africa, Europe, and America. Our established network delivers a comprehensive pre-sales, in-sales, and after-sales service system for fast technical support. This international presence guarantees expert assistance is always within reach to minimize operational downtime. Our dedicated technical team works closely with clients to optimize their specific machining workflows. We foster long-term operational success for every client worldwide.
Our versatile equipment primarily serves mold manufacturing, automotive parts, wind and nuclear power, marine vessels, and military aerospace sectors. The robust design accommodates the rigorous demands of these specialized fields.
The implementation of high-quality Meehanite casting provides exceptional vibration dampening and thermal stability. This ensures reliable precision metal milling and extends the overall lifespan of the machinery.
We utilize a strict testing system encompassing advanced positioning accuracy and cutting accuracy inspections. Advanced tools like three-coordinate measuring instruments guarantee compliance with strict industrial standards.
Yes, we provide custom CNC solutions specifically designed to meet the unique requirements of various industrial sectors. Our engineering team collaborates to deliver highly specialized functionality.
We maintain a comprehensive global service network spanning multiple continents, offering rapid technical support. This ensures efficient pre-sales, in-sales, and after-sales assistance for our international clients.
