NCH-630 Horizontal Machining Center

Our NCH-630 horizontal machining center excels in high speed precision cutting through a rigid moving column design, supporting continuous milling and boring tasks. This advanced metalworking CNC machinery integrates custom craftsmanship from our specialized production factory to ensure long-term industrial reliability. As a premier machinery supplier, we provide versatile solutions for complex multi-process fabrication.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview Of Horizontal Machining Center

The NCH series moving column horizontal machining center is our company's introduction of foreign technology, digestion and absorption the use of mechatronics design, beautiful appearance, can be high speed precision cutting. Engineered by our experienced factory team, this advanced equipment delivers exceptional performance for modern manufacturing facilities. It empowers your production line to tackle complex metalworking tasks with ease. Our dedicated supplier network ensures every component meets stringent quality standards, providing you with a reliable solution for long-term industrial operations.

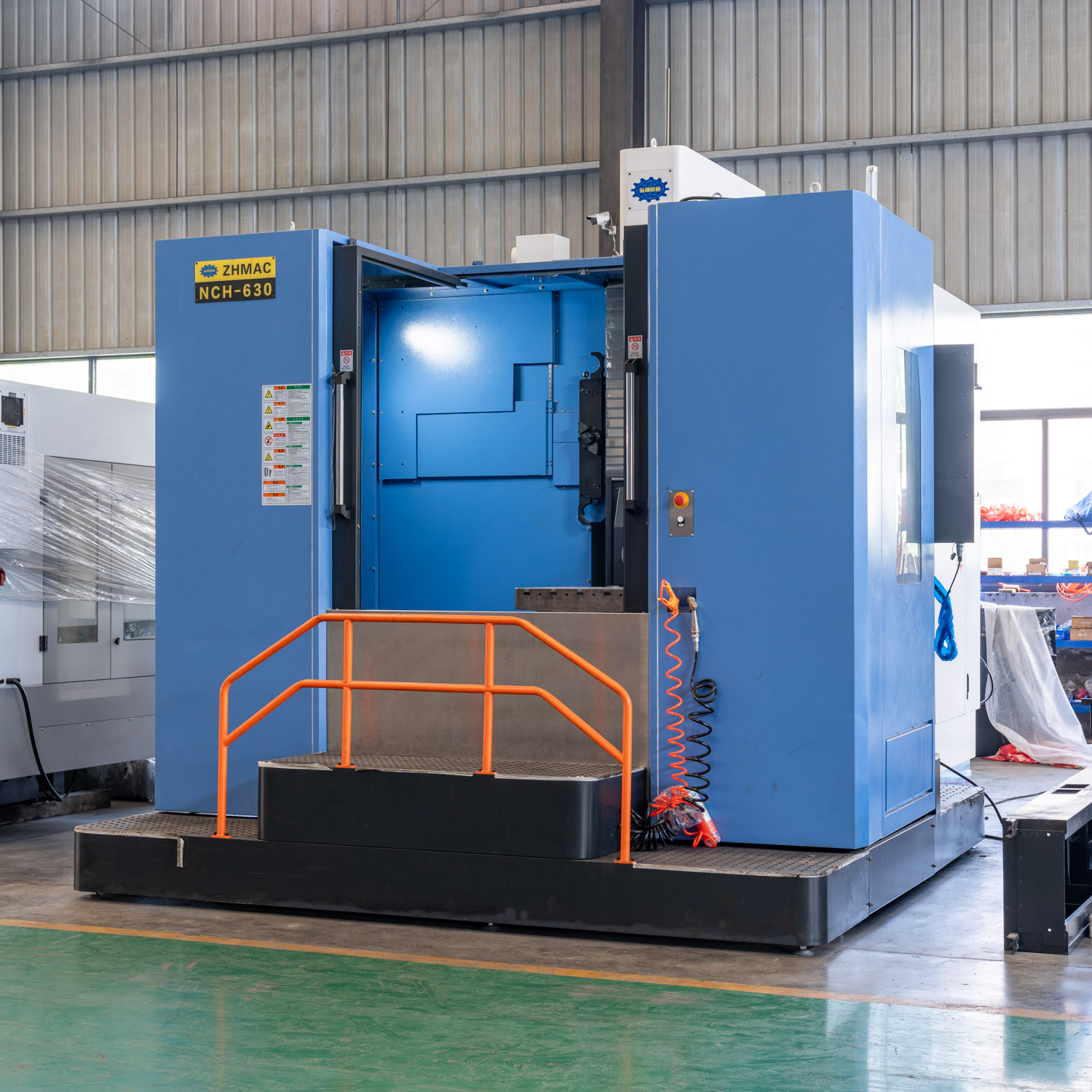

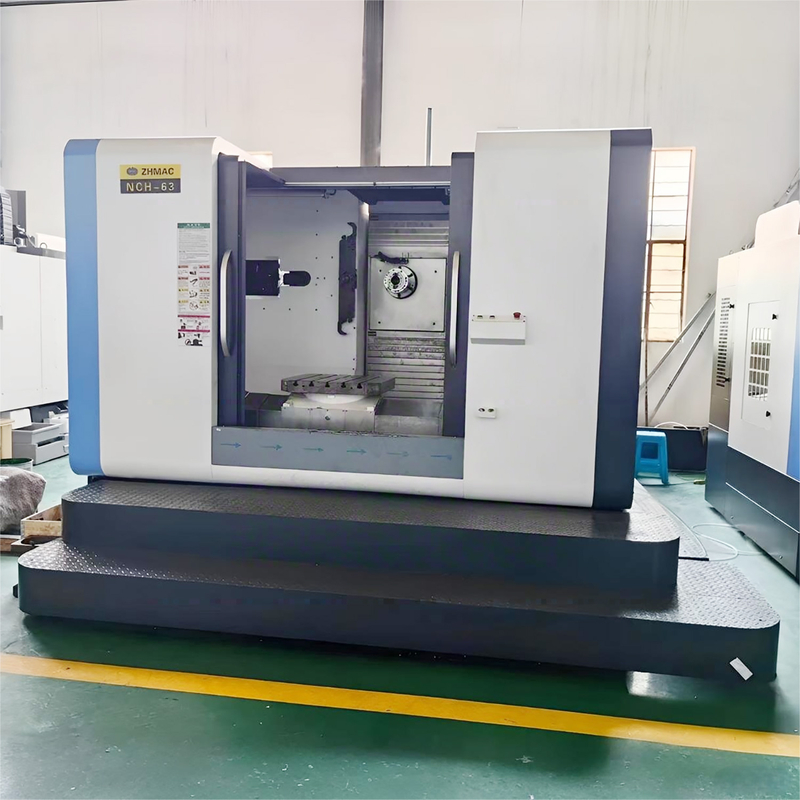

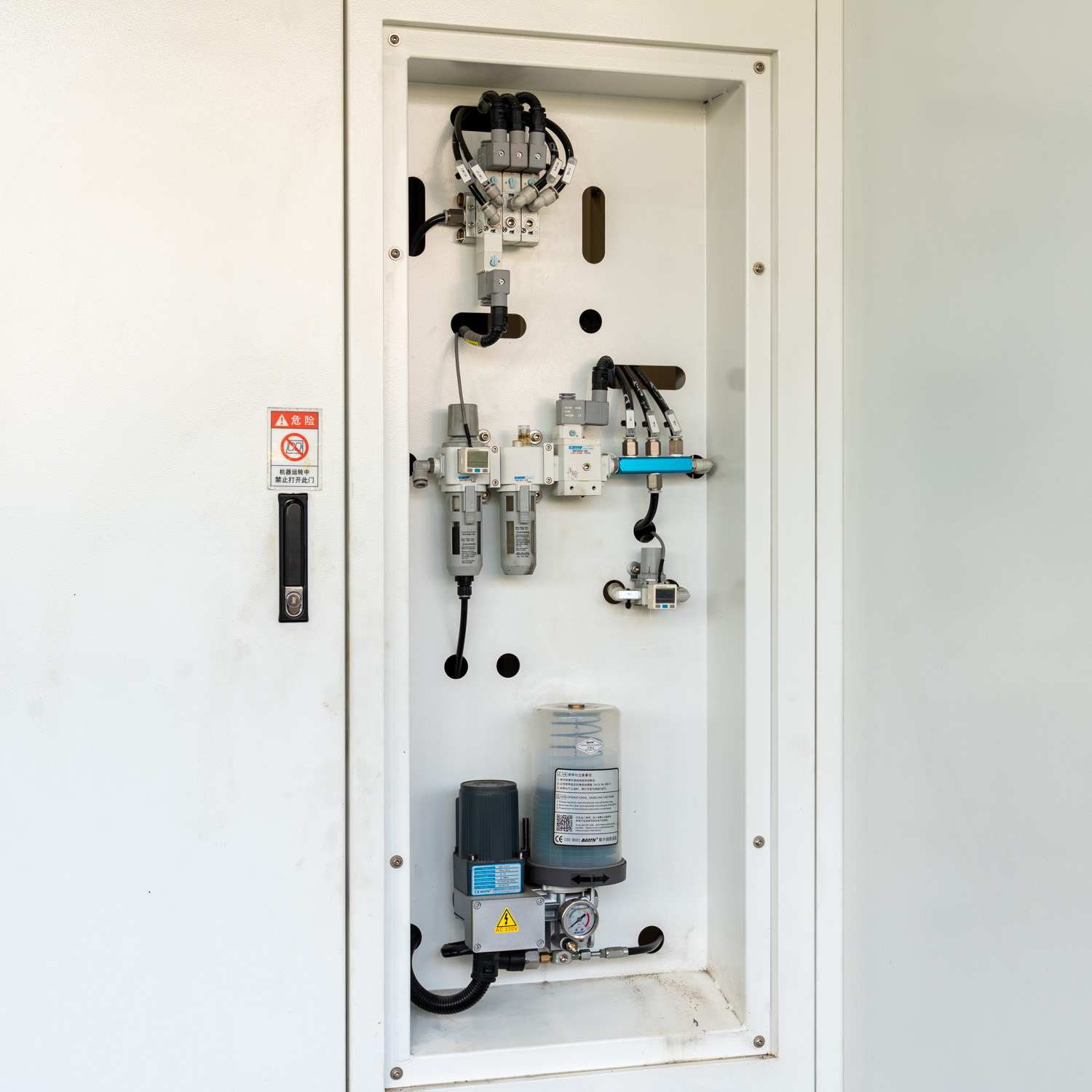

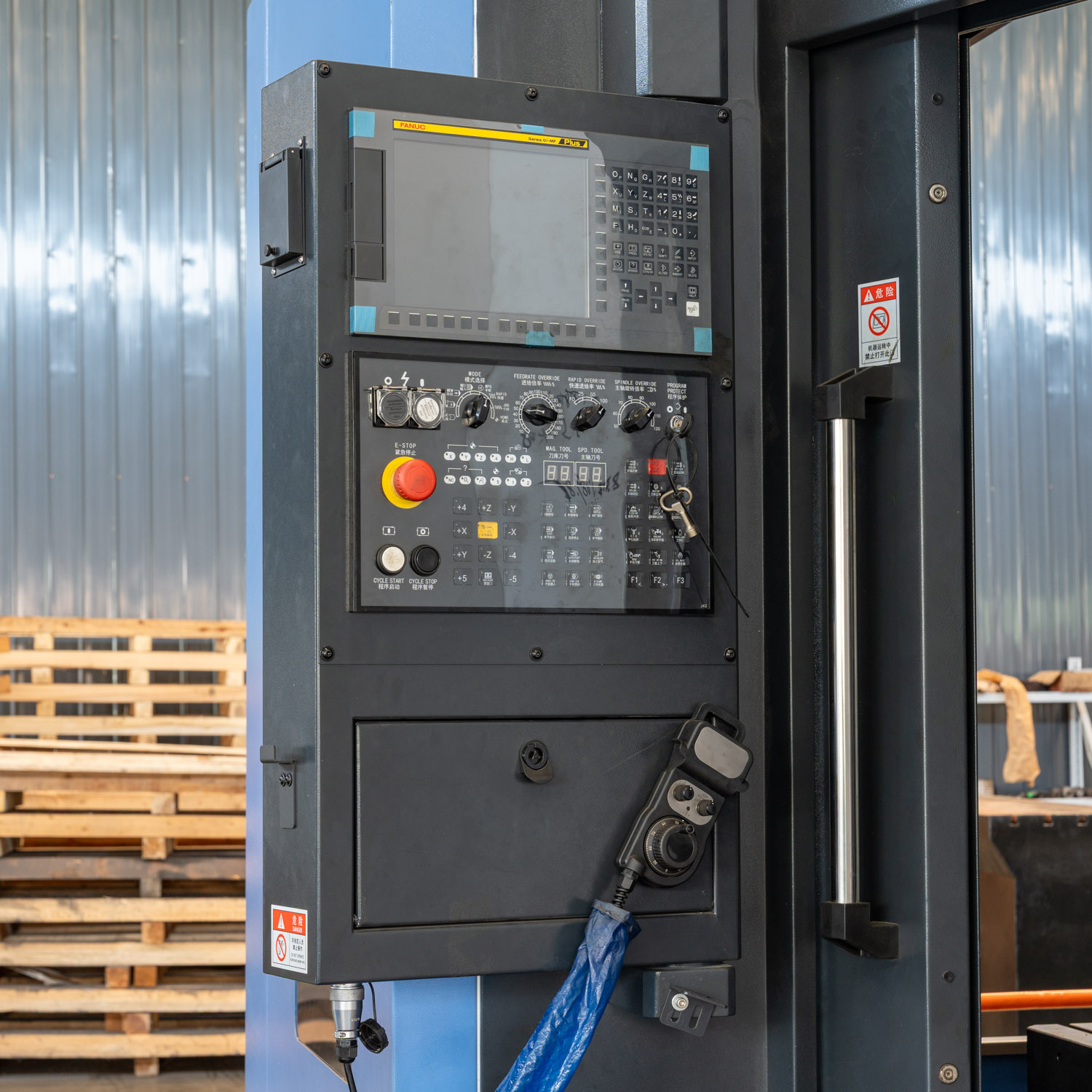

NCH-630 Horizontal Machining Center

Product Parameters Of Horizontal Machining Center

Project		Unit	NCH50 （Cross-slide indexing single unit）	NCH63 （Inverted T-shaped graduated scale, single unit）	NCH80 （Inverted T-shaped graduated scale, single unit）	NCH100 （Inverted T-shaped graduated scale, single unit）
Project		Unit	NCH50 （Cross-slide indexing single unit）	NCH63 （Inverted T-shaped graduated scale, single unit）	NCH80 （Inverted T-shaped graduated scale, single unit）	NCH100 （Inverted T-shaped graduated scale, single unit）
Working table	Working table size	mm	500×500	630×630	800×800	1000×1000
	Pallet load weight	kg	400	1200	1400	1600
	Number of trays	pcs	1	1	1	1
	T-shaped groove (number of grooves × width×spacng)	mm	5×18×100	5×18×125	5×22×160	7×22×125
	Maximum turning diameter/height	mm	Φ800	Φ1300	Φ1500	Φ1800
	Minimum division of table	°	1° ×360	1° ×360	1° ×360	1° ×360
	Maximum speed of workbench	m/min	12	12	10	10
Travel	X axis	mm	700	1000	1200	1600
	Y axis	mm	600	850	850	1000
	Z axis	mm	580	950	1050	1000
	Center of table to spindle end face	mm	120–700	200–1150	200–1250	250–1250
	Table surface to spindle center	mm	90–690	0–850	0–850	0–1000
Spindle	Spindle speed range	rpm	8000	6000	6000	6000
	Spindle motor	kw	11月15日	15/18.5	15/18.5	18.5/22
	Taper hole		BT40	BT50	BT50	BT50
Feed rate	Rapid feed rate	m/min	40/36/40	30	24	24
Feed rate	Cutting feed rate	m/min	10	10	10	10
ATC	Number of tools	T	24	40	40	40
	Tool diameter	mm	Φ78/（full） Φ120（empty）	Φ125/（full） Φ250（empty）	Φ125/（full） Φ250（empty）	Φ125/（full） Φ250（empty）
	Tool diameter	mm	Φ78/（full） Φ120（empty）	Φ125/（full） Φ250（empty）	Φ125/（full） Φ250（empty）	Φ125/（full） Φ250（empty）
	Tool weight	kg	8	25	25	25
	Tool length	mm	300	350	400	400
(ISO230)	Positioning accuracy	mm	0.01	0.01	0.01	0.01
Accuracy	Positioning accuracy	mm	0.01	0.01	0.01	0.01
	Repeat positioning accuracy	mm	0.006	0.006	0.006	0.006
	B-axis positioning accuracy	”	10	10	10	10
	B-axis repeat positioning accuracy	”	5	2	2	2
Machine size	Area	mm	2800×2600×2800	5000×3500×2800	6300×4000×3700	6500×4700×3700
Machine size	Weight	T	6	12.5	14	16
Machine power	Compressed air pressure	MPa	0.5~0.8
	Power supply		3-phase AC380V，50/60HZ，40KVA
	Power supply		Phase AC380V，50/60HZ，40KVA

Product Key Features Of Horizontal Machining Center

Automated Multi-Process Execution

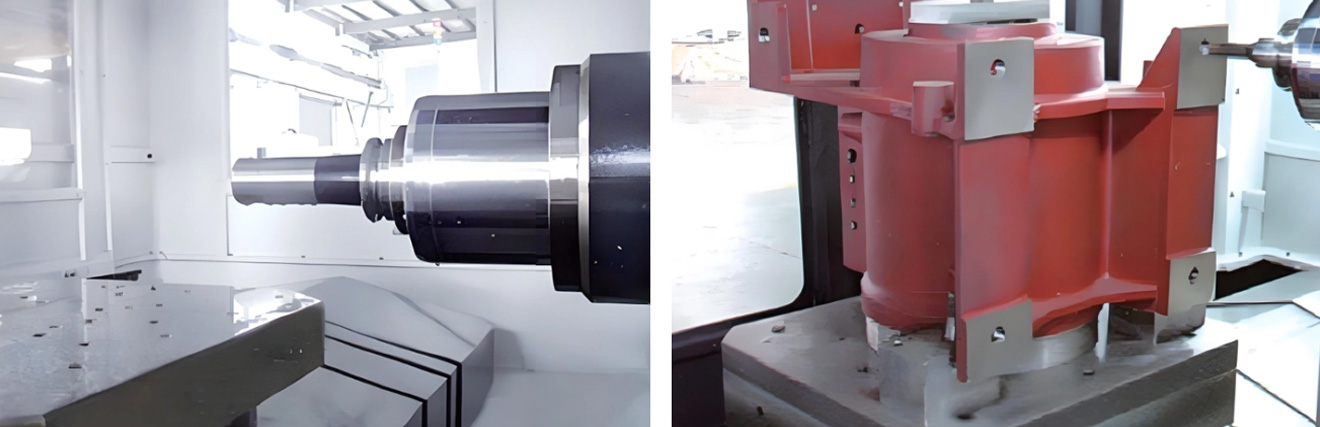

Which can automatically and continuously perform multiple processes such as milling, drilling, boring, expanding, reaming, tapping, etc. This versatility allows operators to consolidate various machining steps into a single setup, significantly reducing overall production time. Our custom manufacturing capabilities ensure the machine adapts smoothly to your specific operational requirements. By minimizing manual intervention, this streamlined workflow enhances overall precision and consistency across large batch productions.

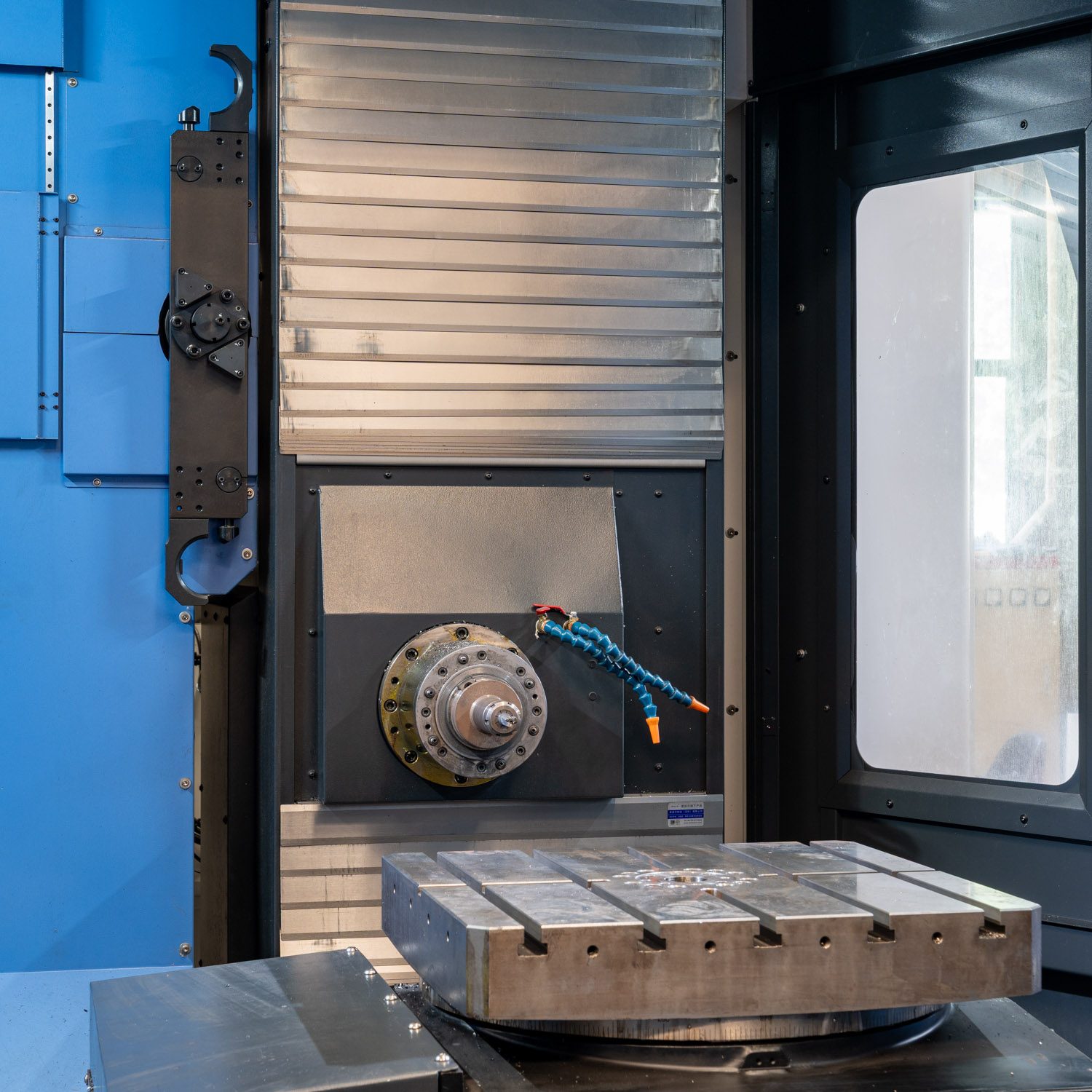

Inverted T Structure Design

The whole machine adopts an inverted "T" structure, the columns move back and forth, and the table moves left and right. The whole machine has high rigidity, high stability and high reliability. This robust foundation minimizes vibrations during intensive high speed precision cutting operations, ensuring superior surface finishes on the final workpiece. Facilities relying on heavy-duty processing will appreciate how this structural integrity prolongs the lifespan of cutting tools and the machine itself.

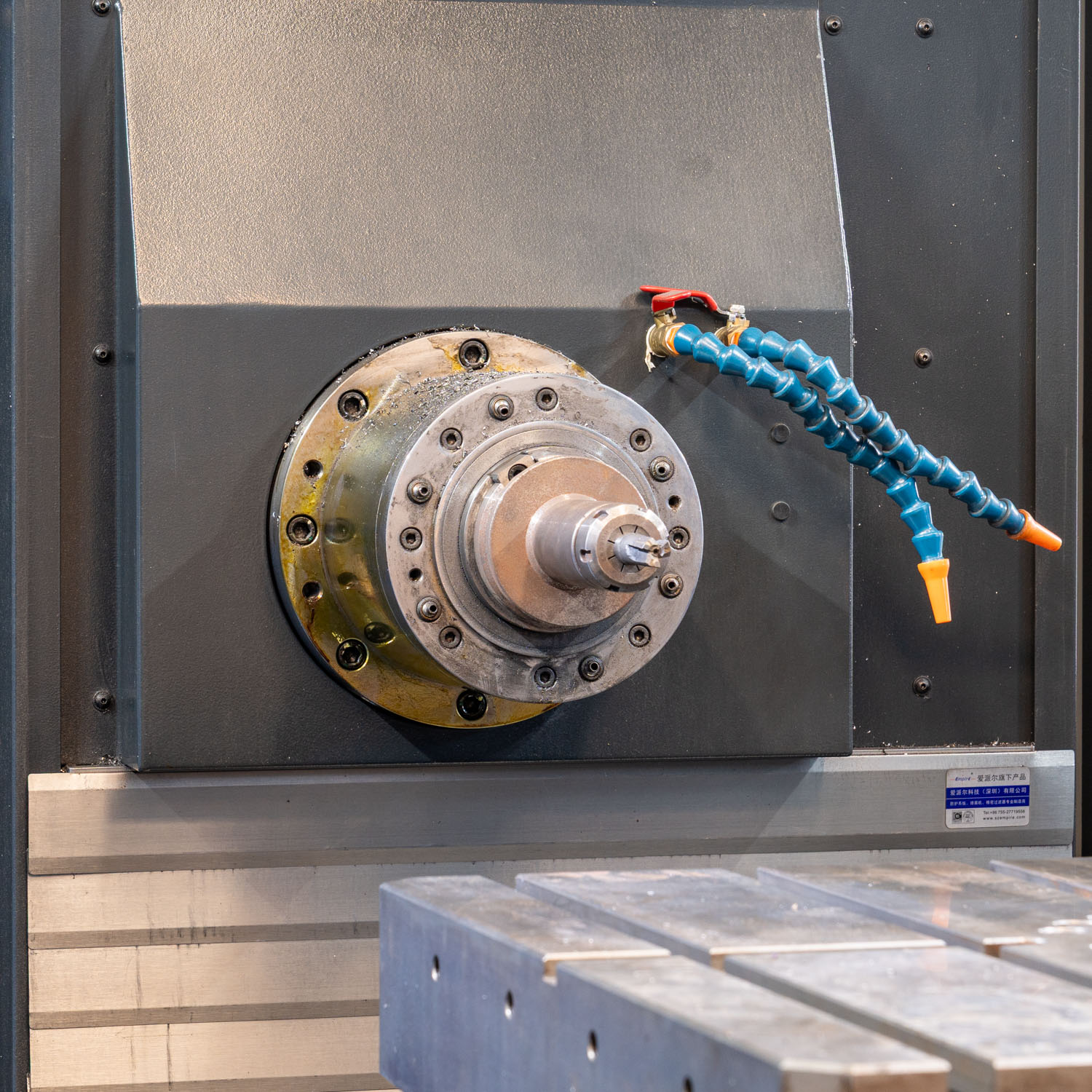

Direct Drive High-Speed Axis

The three axes are directly connected and driven, which is suitable for high-speed feed cutting. The ball screw of each axis is pre-tensioned to further improve the transmission rigidity and positioning accuracy. This direct drive mechanism eliminates the backlash often associated with traditional systems, resulting in rapid and precise movements. As a leading machinery supplier, we prioritize these mechanical enhancements to boost your daily throughput effectively and reduce long-term factory maintenance costs.

Efficient Chip Management System

The machine is equipped with automatic chip removal function and large flow chip washing function. The protective shape is beautiful, and the operation and maintenance are convenient. Efficient chip management is crucial for maintaining continuous operation without unnecessary downtime for manual cleaning. This thoughtful design not only keeps the workspace clean but also protects internal metalworking CNC machinery components from premature wear and tear, ensuring reliable long-term production.

Product Uses Of Horizontal Machining Center

The advanced capabilities of our CNC horizontal milling machine make it an ideal choice for diverse industrial sectors requiring intricate part fabrication. Automotive manufacturers utilize this equipment to produce engine blocks, transmission cases, and complex structural components with exact tolerances. In the aerospace industry, the reliable moving column machining center is frequently deployed to machine lightweight alloy parts where precision cannot be compromised. Furthermore, custom mold making facilities benefit greatly from its continuous multi-process execution, ensuring precise cavities are achieved flawlessly.

Why Choose Us For Horizontal Machining Center

Nantong Zongheng Machinery Technology Co., Ltd. is located in Nantong, Jiangsu, and is one of the larger machine tool manufacturing enterprises in East China. We are committed to delivering cutting-edge industrial solutions that elevate your manufacturing efficiency and product quality. By sourcing premium components and adhering to strict assembly protocols, our factory ensures every unit performs reliably under demanding conditions. Choosing our specialized machinery means partnering with a dedicated team focused on your long-term operational success and continuous technical support.

FAQ Of Horizontal Machining Center

What materials can the NCH-630 horizontal machining center process efficiently?

Our equipment is designed to handle a wide range of materials, including steel, cast iron, aluminum alloys, and other industrial metals, providing versatile solutions for your specific manufacturing needs.

Does this machine support automated tool changes during operation?

Yes, it can automatically and continuously perform multiple processes such as milling, drilling, boring, and tapping without requiring manual tool adjustments, streamlining your workflow.

How does the inverted T structure benefit the machining process?

The inverted T structure ensures high rigidity and stability by effectively distributing operational stress. This design minimizes vibrations, leading to higher precision and smoother surface finishes.

Are custom configurations available for specific factory requirements?

We offer various tailored options to meet distinct production demands. Our engineering team can collaborate with you to integrate the right accessories and software for your facility.
