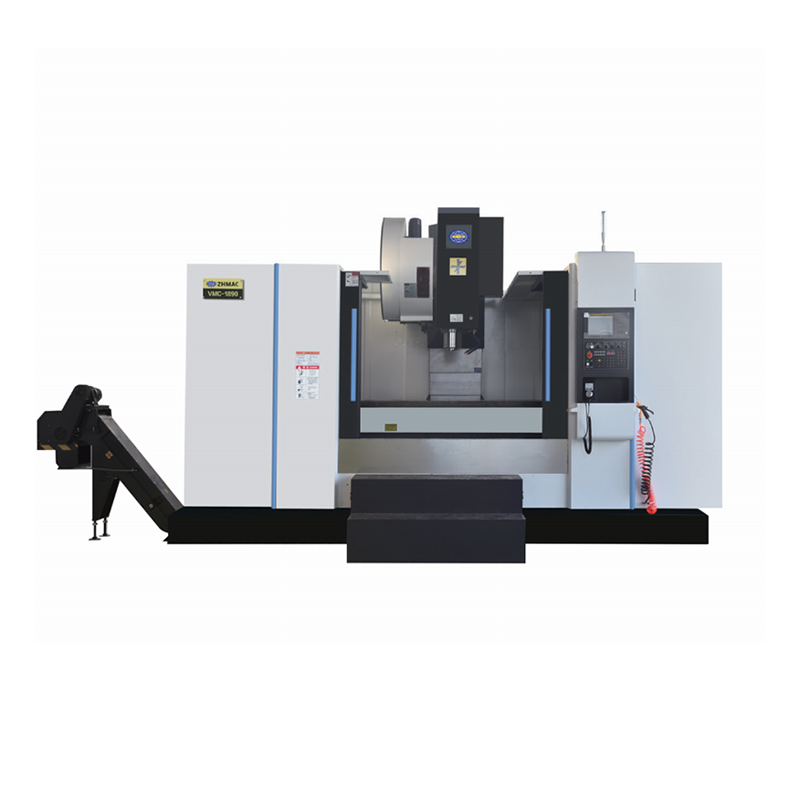

Looking for high-precision metal cutting solutions for complex industrial applications? Our VMC1680 Vertical Machining Center delivers exceptional rigidity, stability, and machining accuracy. Designed for heavy-duty production tasks, this equipment seamlessly handles intricate shapes and large-scale components. It features an expansive 1700x800 mm table with a massive 1500 kg load capacity. The robust foundation ensures exceptional stability during operation. Our CNC milling machine empowers modern workshops to achieve superior cutting efficiency.
Machine tool data | unit | VMC-1370 | VMC-1580 | VMC-1680 | VMC-1890 |
X axis stroke | mm | 1300 | 1500 | 1600 | 1800 |
Y axis stroke | mm | 700 | 800 | 800 | 900 |
Z axis stroke | mm | 650 | 700 | 730 | 800 |
Distance from spindle end face to worktable | mm | 110-810 | 150-850 | 95-825 | 150-850 |
Distance from spindle center to column protection surface | mm | 757 | 855 | 860 | 965 |
Table size | mm | 1400 × 700 | 1600 × 800 | 1700 × 800 | 2000 × 900 |
Max capacity | kg | 1000 | 1500 | 1500 | 1800 |
Table T-groove | mm | 5-18/110 | 5-22/135 | 5-22/145 | 5-22/165 |
Spindle taper | BT50 | BT50 | BT50 | BT50 | |
Spindle speed | ηpm | 6000 | 6000 | 6000 | 6000 |
Spindle motor | kw | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 |
（X/Y/Z） Three axis motor | kw | 3/3/3 | 3/3/4 | 3/3/4 | 4/4/4 |
Control system （optional） | Misubishi / fanuc / siemens | ||||
X, Y, Zaxis rapid moving speed | m∕mi∩ | 24/24/24 | 24/24/24 | 24/24/24 | 24/24/24 |
Positioning accuracy | mm | JIS ±0.005/300 | JIS+ 0.005/300 | JIS ±0.005/300 | JIS ±0.005/300 |
Repeated positioning accuracy | mm | JIS ±0.003/300 | JIS ±0.003/300 | JIS ±0.003/300 | JIS ±0.003/300 |
Pressure | kg∕cm2 | ≥6 | ≥6 | ≥6 | ≥¾6 |
T∞l magazine capacity | 把 | 24 | 24 | 24 | 24 |
Machine weight | T | 9.5 | 12 | 12 | 14 |
Machine size （L× W × H） | mm | 3900 × 3200 × 3000 | 4300 × 3320 × 2970 | 4650 × 3350 X 3250 | 4900 × 3470 × 3400 |
The wide sliding track of the base adopts the four track design. This robust engineering foundation significantly enhances the overall load-bearing capacity during heavy cutting processes. Our metal cutting machine distributes the weight evenly across the structure, preventing deformation over prolonged periods. The enhanced stability allows operators to push the equipment without compromising the surface finish. Consequently, this configuration is highly advantageous for machining large, irregular parts requiring consistent dimensional accuracy.
All the slide rails are subject to high cycle heat treatment and precision grinding. With the help of fluoride resin with wear resistance, low resistance and low friction coefficient, they slide smoothly with each other to ensure the accuracy of the machine. This meticulous manufacturing process minimizes the stick-slip phenomenon that often plagues high-speed motions. Operators can expect highly responsive movements along the X, Y, and Z axes. The extended lifespan of these treated rails dramatically reduces maintenance frequency and unexpected downtime.
Five ball screw special bearings are used to pre pull the support seats at both ends of each shaft to ensure the precision during thermal expansion. During extended operations, temperature fluctuations can severely impact dimensional tolerances. This pre-tensioned design effectively mitigates those risks to maintain structural rigidity. Our VMC machine tool guarantees consistent output quality from the first part to the last. This thermal stability is a crucial factor for demanding industries requiring tight machining tolerances.
Adopt high-density coupling to drive directly to reduce transmission Clearance. Eliminating belts or gears from the drive system maximizes power transfer from the servo motors. This direct connection ensures instant response to control commands during complex multi-axis interpolation. The absence of intermediate transmission components significantly lowers noise levels and operational vibrations. Our precision machining equipment therefore provides a smoother, more reliable cutting experience for delicate tasks.
The three-axis direction adopts fully closed mountain shaped expansion cover, with excellent sealing and chip removal performance. This comprehensive protection prevents metal shavings from contaminating the delicate internal guide rails. The sloped design efficiently channels debris away from the work area for a clean environment. Reducing manual cleanup time between cycles directly boosts overall workshop productivity and throughput. Additionally, protecting these critical components substantially extends the mechanical life of the equipment.
The impressive XYZ axis stroke of 1600x800x730 mm suits processing large aerospace and automotive parts. Complex engine blocks and structural frames can be machined with exceptional precision and surface quality. The robust 6000 rpm spindle easily manages materials ranging from aluminum alloys to hardened steel. Industrial manufacturers can rely on this inherent stability to meet rigorous transportation safety standards. The versatile working envelope comfortably accommodates multiple setups for enhanced operational flexibility.
Heavy-duty mold making requires equipment that handles immense weights while maintaining micron-level accuracy. With a maximum table capacity of 1500 kg, it comfortably supports massive die blocks. Precision guideways and thermal management ensure deep cavity milling remains highly accurate without tool deflection. This capability translates to reduced manual polishing and finishing times for professional mold makers. Consequently, the advanced machining capabilities significantly accelerate the entire mold production cycle.
Navigating the complexities of modern machining requires a partner with deep technical knowledge. We focus on delivering tailored industrial solutions that align with your specific production workflow. Whether you require Mitsubishi, Fanuc, or Siemens controls, we configure the equipment accordingly. Our dedicated team provides comprehensive guidance from initial selection through to final installation. We prioritize your operational efficiency above all else to ensure maximum capital return.
Sustained productivity relies on more than just high-quality hardware within your facility. We maintain a robust inventory of critical spare parts and provide expert troubleshooting. Our commitment extends to operator training and process optimization for your engineering team. Investing in our CNC machining center means gaining a reliable long-term production partner. Your continuous operational stability remains our primary concern throughout the equipment lifecycle.
It is fully compatible with industry-leading control systems, including Mitsubishi, Fanuc, and Siemens options.
The standard tool magazine holds 24 tools, allowing for versatile and continuous machining operations.
The highly rigid table safely supports a maximum workpiece load of up to 1500 kg.
The spindle operates at 6000 rpm, powered by a 15/18.5 kw motor for efficient material removal.
