| Quantity: | |
|---|---|
ZHMAC provides advanced equipment designed for robust daily operations. Our CNC milling machine is specifically engineered to handle rigorous cutting tasks with exceptional physical stability. Designed for modern workshops, it delivers consistent precision across various complex metalworking projects. The overall structural rigidity ensures optimal performance during high-speed operations, making it a reliable choice for commercial production facilities seeking efficiency, reduced operational downtime, and long-term hardware durability in highly demanding workflows.
Project | Unit | XW6132 | XW6140 | ||
Table | Working table surface (WxL) | mm | 320 × 1325 | 400 × 1700 | 400 × 2000 |
Max.Table Load | kg | 500 | 800 | ||
T-Slots (Number) | 个 | 3 | 3 | ||
T-Slot (Width) | mm | 18 | 18 | ||
T-slot (Distance) | mm | 70 | 90 | ||
Travel | Longitudinal Travel (X) | mm | 700/680 | 900/880 | 1200/1180 |
Cross Travel (Y) | mm | 250/240 | 315/300 | ||
Vertical Travel (Z) | mm | 320/300 | 380/360 | ||
Spindle | Spindle Taper | ISO (7:24 ) No.50 | ISO (7:24 ) No.50 | ||
Speed range | r/min | 30-1500 | 30-1500 | ||
Speed step | Step | 18 | 18 | ||
MaX.swivel angle | dep | ±45 | ±45 | ||
Distance from spindle nose to working table Surface MinZMax | mm | 215/470 | 255/570 | ||
Distance from spindle center to vertical guide rail | mm | 30/350 | 30/410 | ||
Feed | Cutting feed rate | min/min | X:23.5-1180 Y: 15-786 Z:8-394 | ||
Rapid Feed Rate(XYZ) | min∕min | X、Y:2300 Z:770 | X、Y:2300 Z:770 | ||
Feed Step | Step | 18 | 18 | ||
Motor | Power of Spindle Motor | kw | 7.5 | 11 | |
Power of Feed Motor | kw | 2.2 | 3 | ||
Other | Machine dimensions (LxWxH) | mm | 2294× 1170 × 1665 | 2556 × 2159 × 1830 | |
Wachine weight | kg | 2800 | 3850 | ||
The foundation of our equipment relies on premium materials that actively minimize vibration during intense operational cycles. This robust physical construction naturally extends the lifespan of the cutting tools and maintains extremely tight manufacturing tolerances. Operators can confidently execute heavy duty metal milling without compromising the final surface finish quality. The enhanced operational stability directly contributes to higher product yield rates and significantly reduced material waste in demanding commercial environments, ensuring consistent output.

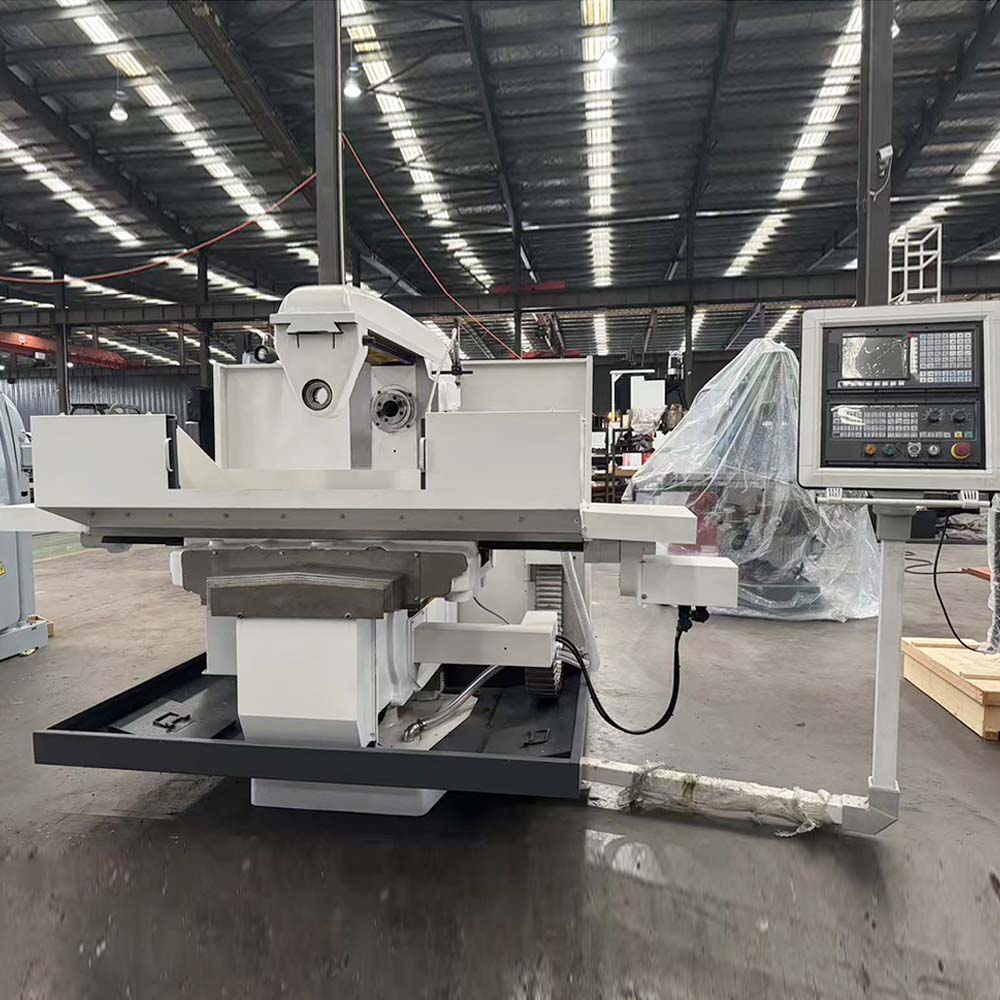

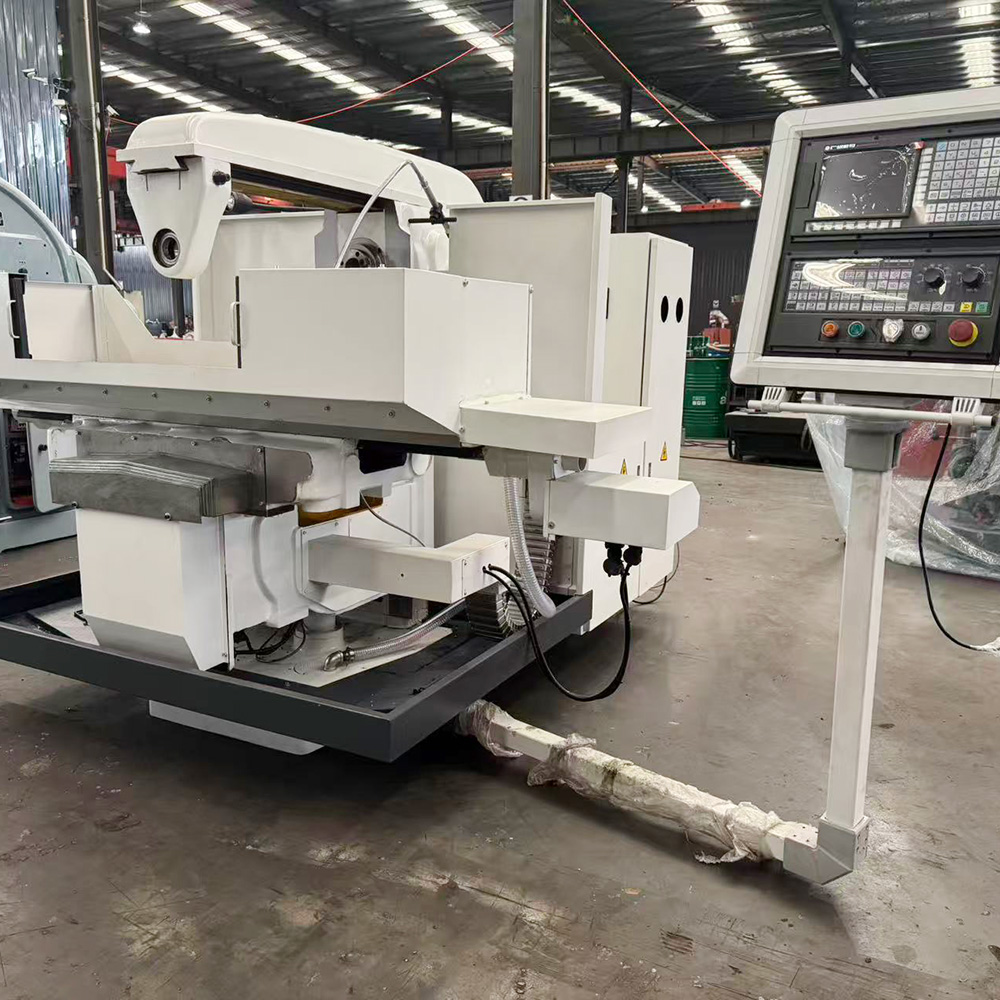

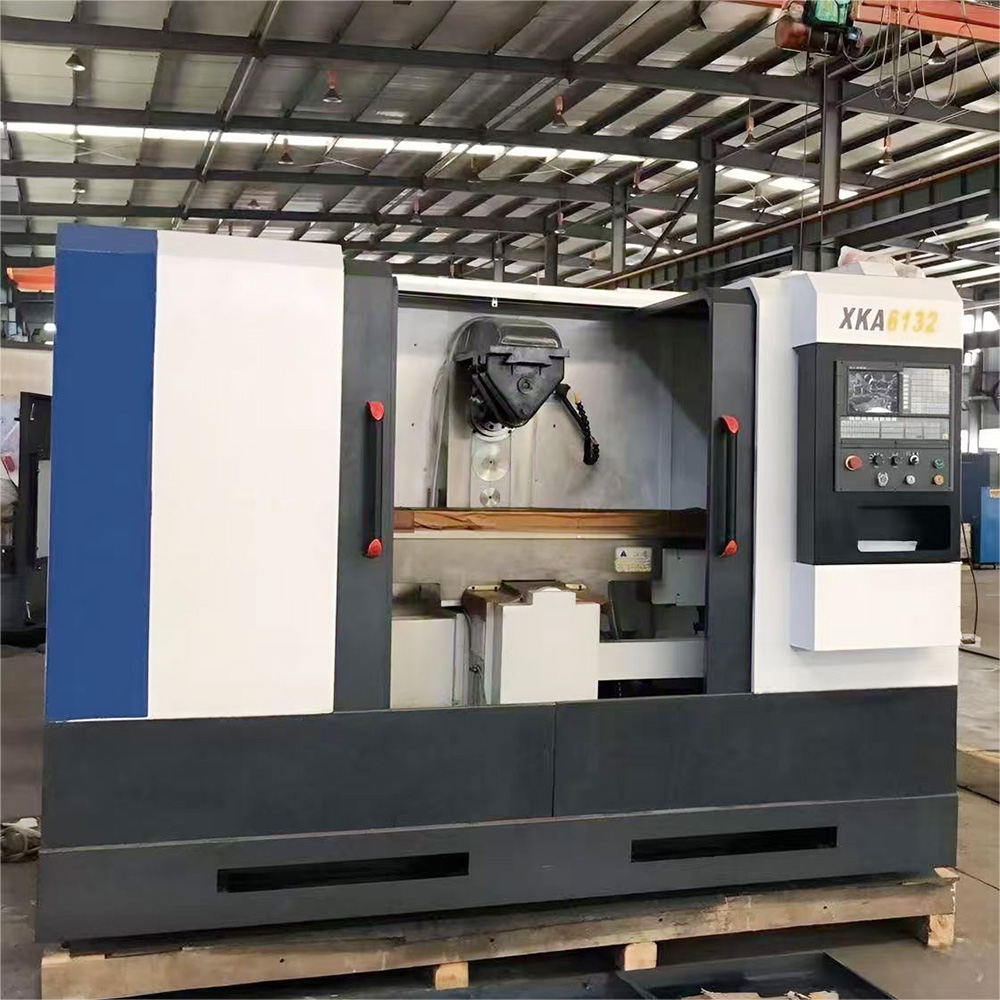

Equipped with a highly capable spindle mechanism, our XKA6132 model accommodates a wide range of cutting speeds suitable for diverse industrial materials. The standard ISO No.50 spindle taper guarantees secure and rigid tool holding, which is absolutely critical for precision machining center applications. This versatile performance range allows for seamless and rapid transitions between roughing and fine finishing cuts, ultimately optimizing the entire manufacturing workflow for complex structural components.
Rapid and highly accurate spatial positioning is achieved through a meticulously designed feed drive system operating on all fundamental axes. The smooth mechanical traverse minimizes non-cutting time, which significantly boosts the overall daily operational efficiency. Our industrial milling solutions incorporate reliable motor drives that respond instantly and accurately to control commands. This exact precision ensures that complex geometric designs are machined with strict adherence to required specifications, consistently elevating final product quality.
Producing engine blocks, transmission cases, and complex mounting brackets requires machinery fully capable of maintaining strict dimensional accuracy over time. Our vertical milling equipment consistently excels in these specific applications by providing the necessary mechanical power and unwavering precision. The machine's ability to handle substantial physical table loads makes it highly ideal for processing bulky automotive parts efficiently, ensuring uniform quality across large-scale commercial production runs and drastically minimizing part rejection rates.
The modern aerospace sector rigorously demands components machined from tough metallic alloys with absolutely impeccable surface finishes. Our professional equipment reliably meets these strict industry standards through exceptionally stable, vibration-free operation and highly precise tool control. By effectively utilizing our advanced machinery, commercial facilities can reliably manufacture critical structural elements and intricate aerospace fittings. The stable machining platform ensures strict compliance with the exacting dimensional tolerances fundamentally required for overall aerospace safety and long-term performance.
Located in Jiangsu, Nantong Zongheng Machinery Technology Co., Ltd. has successfully established a strong industrial foundation in producing highly dependable machining centers. We continuously focus on integrating practical, field-tested technological advancements into our equipment to actively solve real-world production challenges. By constantly prioritizing long-lasting hardware durability and deeply user-centric design, we ensure that our commercial clients receive machinery that seamlessly integrates into their current production lines and substantially enhances overall output capacity.
Our equipment efficiently machines a wide variety of metals including industrial steel, aluminum, cast iron, and specialized durable alloys, providing maximum flexibility for different commercial requirements.
The integrated ISO No.50 spindle taper strictly ensures robust tool clamping, which effectively minimizes tool deflection during heavy cuts and maintains high processing accuracy throughout the operation.
While operators should possess fundamental machining knowledge, the highly intuitive control layout significantly facilitates a straightforward and rapid learning curve for experienced personnel in your facility.
Consistent routine lubrication of the guideways, regular comprehensive spindle checks, and prompt daily chip removal are essential practices to maintain high precision and noticeably prolong the equipment's operational lifespan.
