4080 Bar Machining Center

Product Overview Of Bar Machining Center

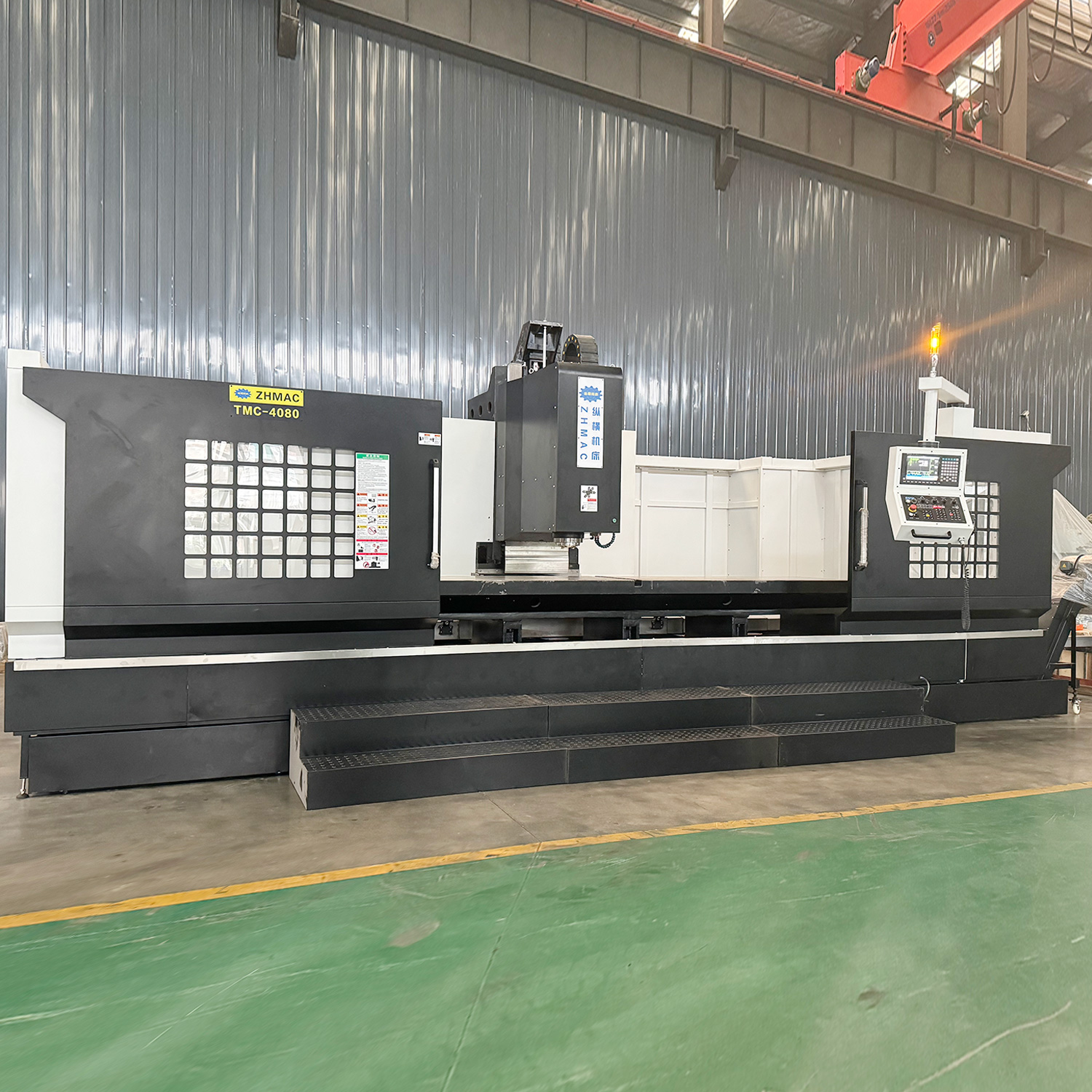

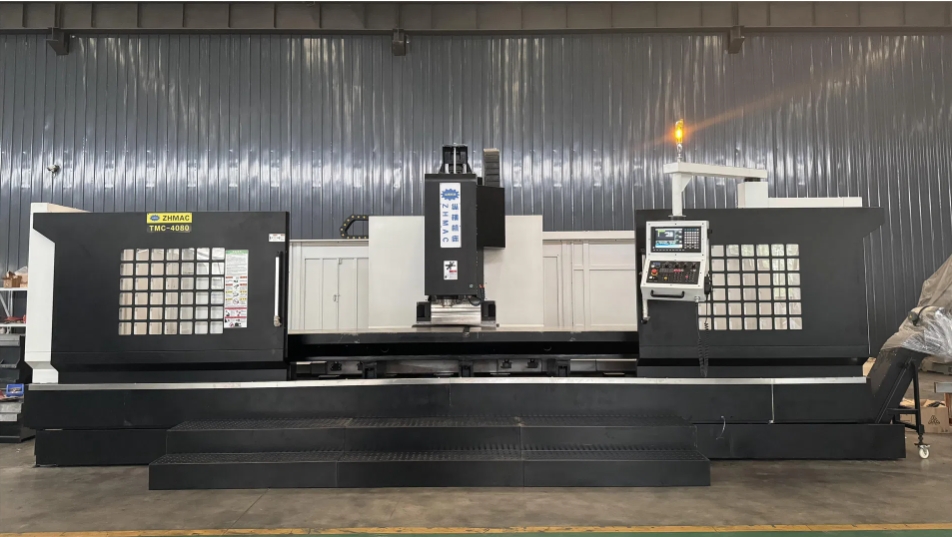

The TMC-4080 Bar Machining Center by ZHMAC represents a highly advanced solution in the realm of metal-forming CNC machine tools. Engineered specifically for workpieces with extensive stroke requirements, our equipment combines a robust rigid main structure with exceptional mechatronic integration. By consolidating complex tasks into a single setup, this vertical machining center significantly shortens production cycles. It empowers industrial facilities to achieve outstanding precision, elevated automation, and robust operational reliability across various heavy-duty milling and drilling tasks.

Product Parameters Of Bar Machining Center

Basic Info.

Packaging & Delivery

Machine Parameters

Machine Configuration

Product Key Features Of Bar Machining Center

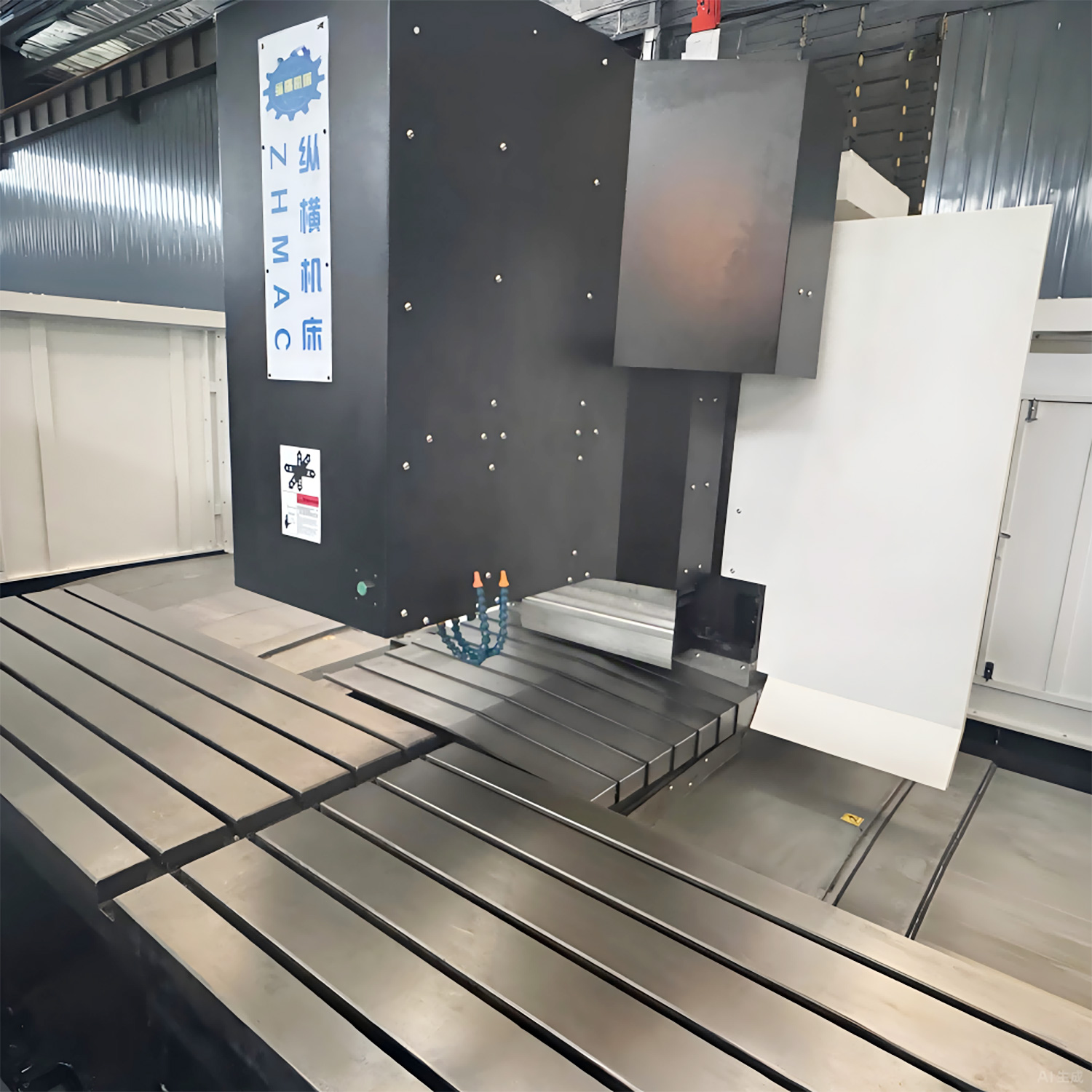

Unique and Robust Rigid Main Structure

The machine tool features a unique, stable and robust rigid main structure. Built using advanced casting technology and comprehensive structural optimization, the base and column of our equipment provide unparalleled vibration resistance. This heavy-duty foundation ensures continuous stability even during demanding material removal operations. Industrial users benefit from minimized thermal deformation, ensuring consistent dimensional accuracy over long production runs. The formidable load capacity of up to 10,000 kg further reinforces its ability to handle massive metallic workpieces without compromising the cutting integrity.

Precision Machining in a Single Clamping Setup

With the selection of corresponding functional components, it can complete precision machining operations—including milling, drilling, reaming, counterboring, boring, tapping, as well as 2D/3D curved surfaces and beveled surfaces in a single clamping setup. The integration of a premium BT50 spindle and a fast 24-tool disk-type robot magazine allows for seamless automated tool changes. This comprehensive capability drastically reduces the downtime associated with manual workpiece repositioning, ensuring that every manufactured part maintains strict tolerances throughout the entire automated workflow.

High Automation and Mechatronic Integration

The machine tool boasts the characteristics of high automation, strong reliability, easy operation and good mechatronic integration. Driven by the advanced Syntec System, operators gain precise command over the X, Y, and Z axes, which boast rapid traverse speeds up to 12 m/min. The sophisticated control unit simplifies complex programming requirements, making it highly accessible for factory personnel. This intelligent interface not only minimizes human error but also maximizes the continuous output rate, ensuring a highly efficient return on your machinery investment.

Product Uses Of Bar Machining Center

Long-Stroke Component Manufacturing

It is particularly suitable for processing profiles, channel steel, motor shafts, screws and other workpieces with various stroke requirements. The impressive 4200mm X-axis travel allows our machine to effortlessly accommodate extended materials that standard mills simply cannot handle. From architectural structural steel framing to specialized industrial fasteners, the expansive worktable ensures secure clamping for oversized dimensions. This versatility makes it an indispensable asset for facilities dealing with large-scale components, eliminating the need to outsource complex long-profile fabrication tasks.

High-Efficiency Mold Production

It can greatly improve the cutting efficiency of mold parts, shorten production cycles, and bring sound economic benefits to users. The superior positioning accuracy of 0.015mm guarantees the fine surface finishes required for complex injection molding or die-casting tooling. Whether crafting automotive parts enclosures or intricate aerospace components, the system maintains strict fidelity to your original mechanical designs. By accelerating the overall tooling phase, facilities can push new designs to production faster while maintaining exceptional quality standards.

Why Choose Us For Bar Machining Center

Global Reach and Proven Expertise

Nantong Zongheng Machinery Technology Co., Ltd. is located in Nantong, Jiangsu, and is a large-scale machine tool manufacturing enterprise in East China. Our rich product range is supported by a comprehensive quality management system certified under CE and ISO 9001 standards. We possess strong technological innovation capabilities and a dedicated research team focused on continuously refining precision equipment. By prioritizing rigorous manufacturing processes and swift global technical support, we deliver customized, high-performance machinery solutions that precisely meet the rigorous demands of the aerospace, automotive, and heavy engineering sectors worldwide.

FAQ Of Bar Machining Center

What is the spindle speed range of this equipment?

The spindle speed ranges from 50 to 6000 rpm, driven by a powerful 15/18.5 kW motor for efficient heavy-duty cutting operations.

Which control system is installed on this machine?

It comes equipped with the advanced Syntec System as the default CNC configuration, ensuring precise open-loop control and high-speed processing.

What type of tool magazine is utilized?

The equipment features a 24-capacity disk-type robot tool magazine, capable of handling tools with a maximum weight of 15 kg.

Can it accommodate oversized heavy workpieces?

Yes, the massive 4000x800 mm worktable is specifically designed to support a maximum load capacity of 10,000 kg for large-scale and long-profile operations.
