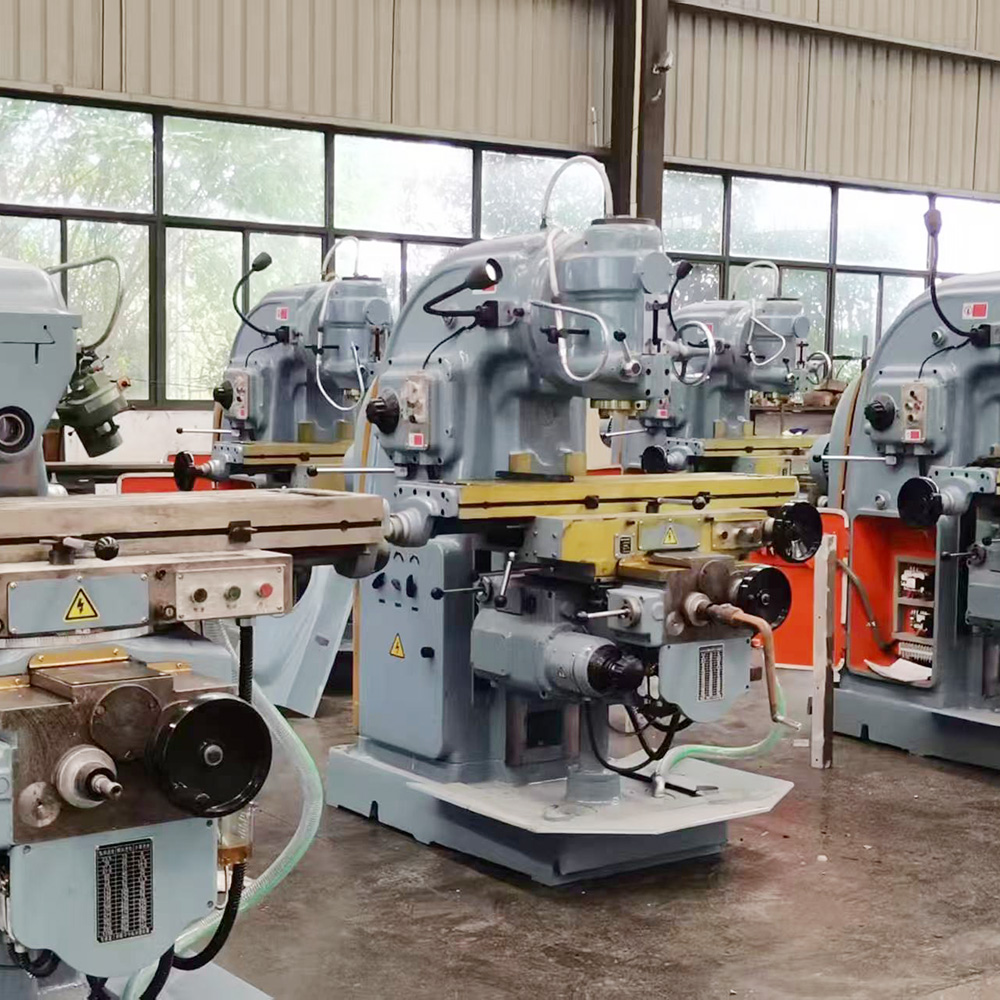

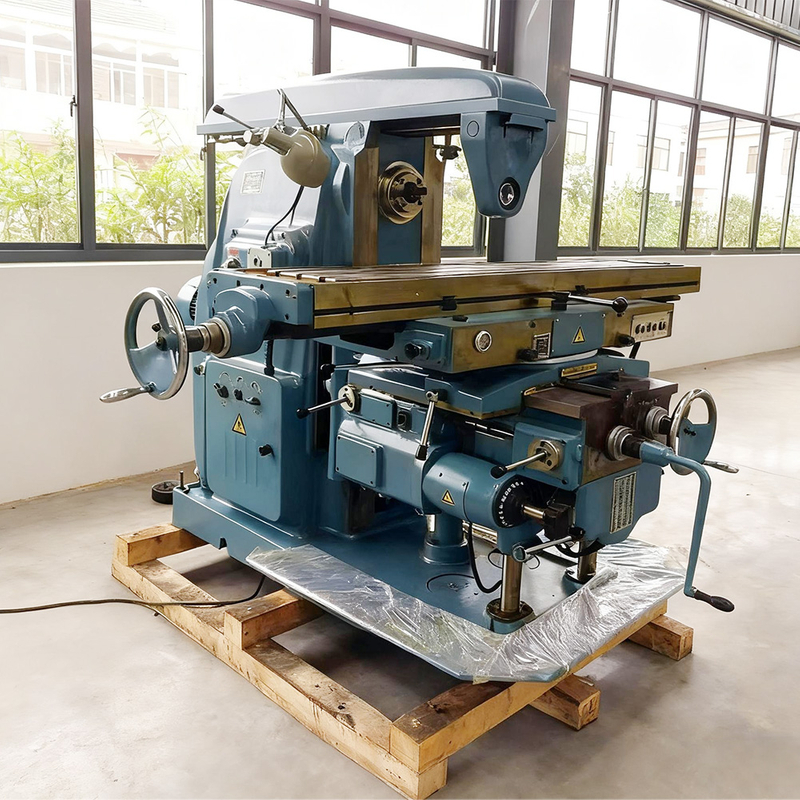

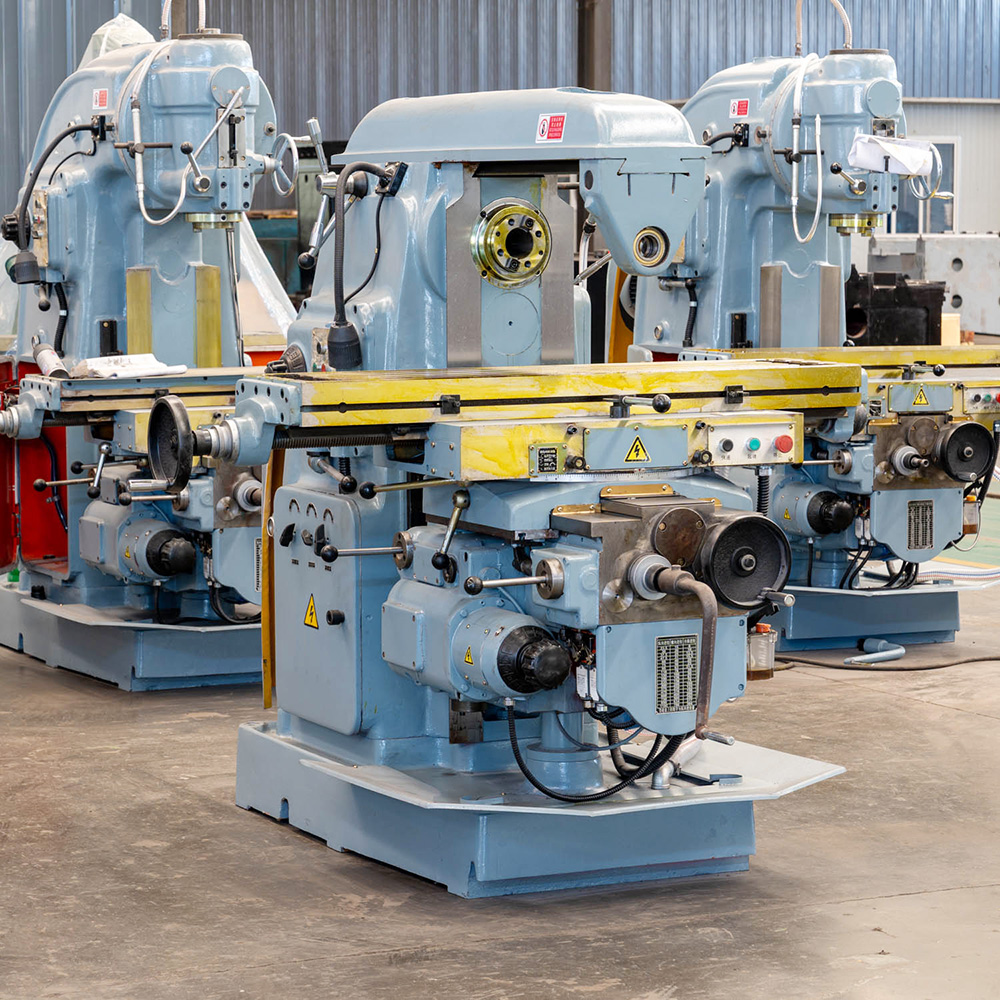

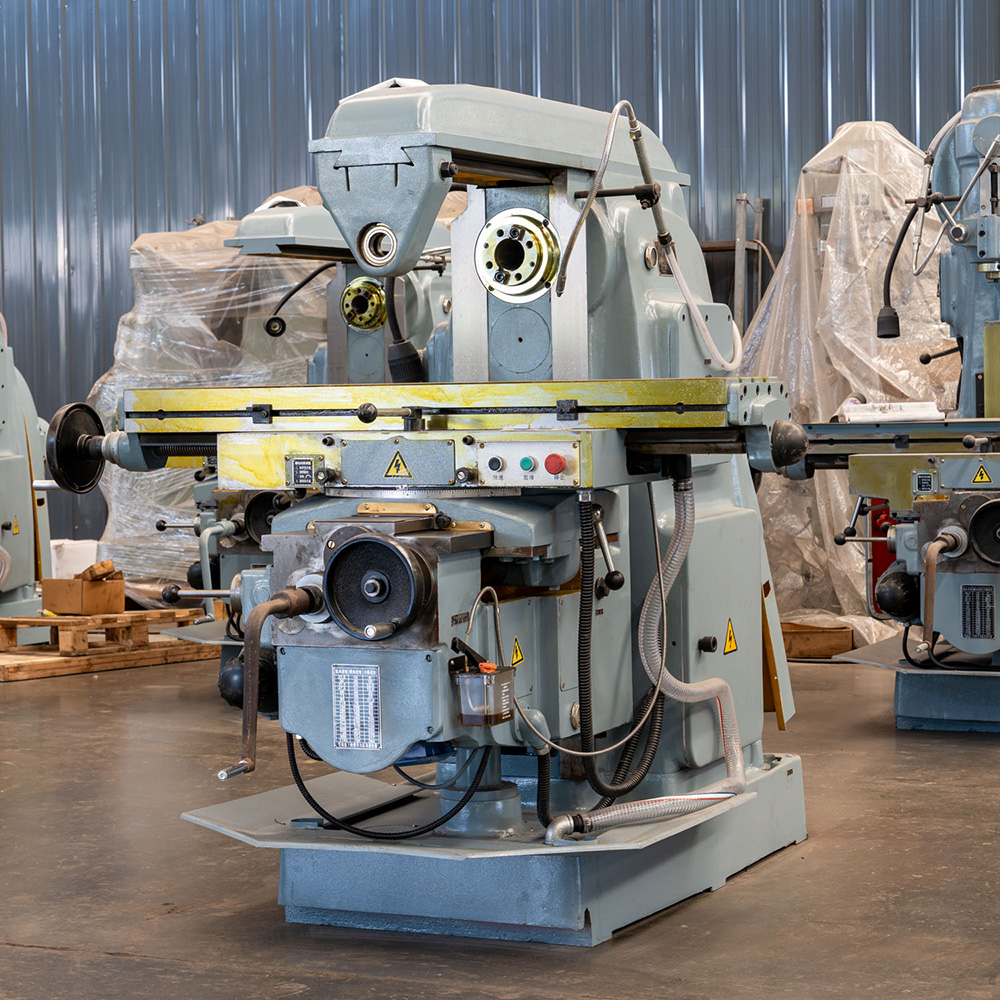

Looking for reliable metal cutting equipment to upgrade your workshop capabilities? Our XW6132 horizontal milling machine delivers exceptional precision and rigidity for demanding industrial applications. Engineered by a trusted machine tool manufacturer, this versatile equipment handles complex shaping tasks with remarkable ease. By integrating our machinery into your production line, you achieve faster processing times and superior surface finishes. Discover how our robust design meets the stringent requirements of modern metalworking facilities worldwide.
Project | Unit | XW6132 | XW6140 | ||
Table | Working table surface (WxL) | mm | 320 × 1325 | 400 × 1700 | 400 × 2000 |
Max.Table Load | kg | 500 | 800 | ||
TT-Slots (Number) | 个 | 3 | 3 | ||
T-Slot (Width) | mm | 18 | 18 | ||
T-slot (Distance) | mm | 70 | 90 | ||
行程 Travel | Longitudinal Travel (X) | mm | 700/680 | 900/880 | 1200/1180 |
Cross Travel (Y) | mm | 250/240 | 315/300 | ||
Vertical Travel (Z) | mm | 320/300 | 380/360 | ||
Spindle | Spindle Taper | ISO (7:24 ) No.50 | ISO (7:24 ) No.50 | ||
Speed range | r/min | 30-1500 | 30-1500 | ||
Speed step | Step | 18 | 18 | ||
Ma×.swivel angle | dep | ±45 | ±45 | ||
Distance from spindle nose to working table Surface MinZMax | mm | 215/470 | 255/570 | ||
Distance from soi∩dle center to vertical α∪ide rail | mm | 30/350 | 30/410 | ||
Feed | Cutting feed rate | mr∩∕mi∩ | X:23.5-1180 Y: 15-786 Z:8-394 | ||
Rapid Feed Rate(XYZ) | mm∕r∩i∩ | X、Y:2300 Z:770 | X、Y:2300 Z:770 | ||
Feed Step | Step | 18 | 18 | ||
Motor | Power of Spindle Motor | kw | 7.5 | 11 | |
Power of Feed Motor | kw | 2.2 | 3 | ||
Other | Machine dimensions (LxWxH) | mm | 2294× 1170 × 1665 | 2556 × 2159 × 1830 | |
Wachine weight | kg | 2800 | 3850 |
To ensure long-lasting stability during intensive operations, our XW6132 horizontal milling machine utilizes high-strength cast iron components. This heavy-duty foundation effectively minimizes vibrations when executing deep cuts on tough materials. Our metal cutting equipment maintains strict dimensional accuracy even after years of continuous usage. Operators can confidently push cutting parameters higher without compromising the structural integrity of the machine. The solid construction ultimately translates to fewer maintenance interruptions and a significantly extended equipment lifespan.

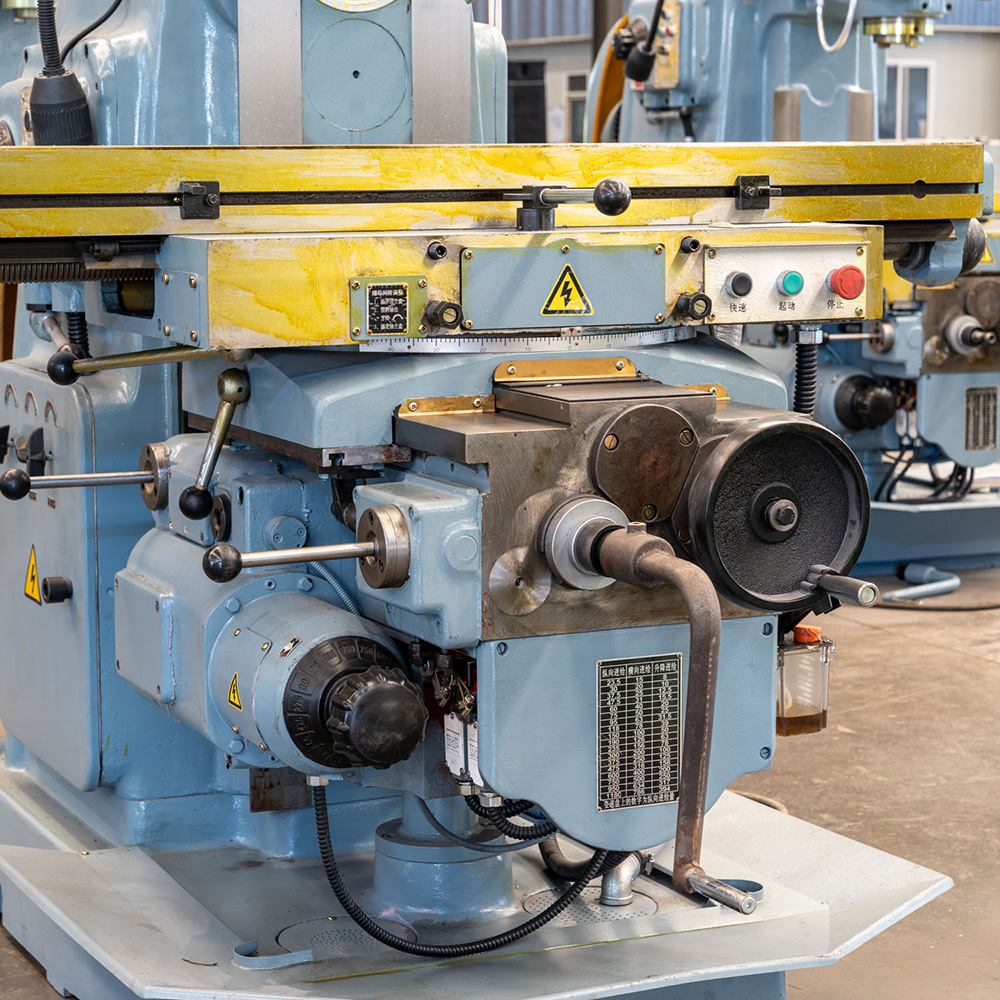

Flexibility remains a critical factor for any modern machining setup handling diverse workpieces. The worktable on our industrial milling machine features a convenient swivel angle up to +45 degrees. This specific design allows machinists to easily cut complex helical grooves or angled surfaces without requiring special attachments. By adjusting the table orientation, your facility can handle a wider variety of custom machining requests efficiently. Such versatility empowers operators to tackle complicated geometrical profiles seamlessly.

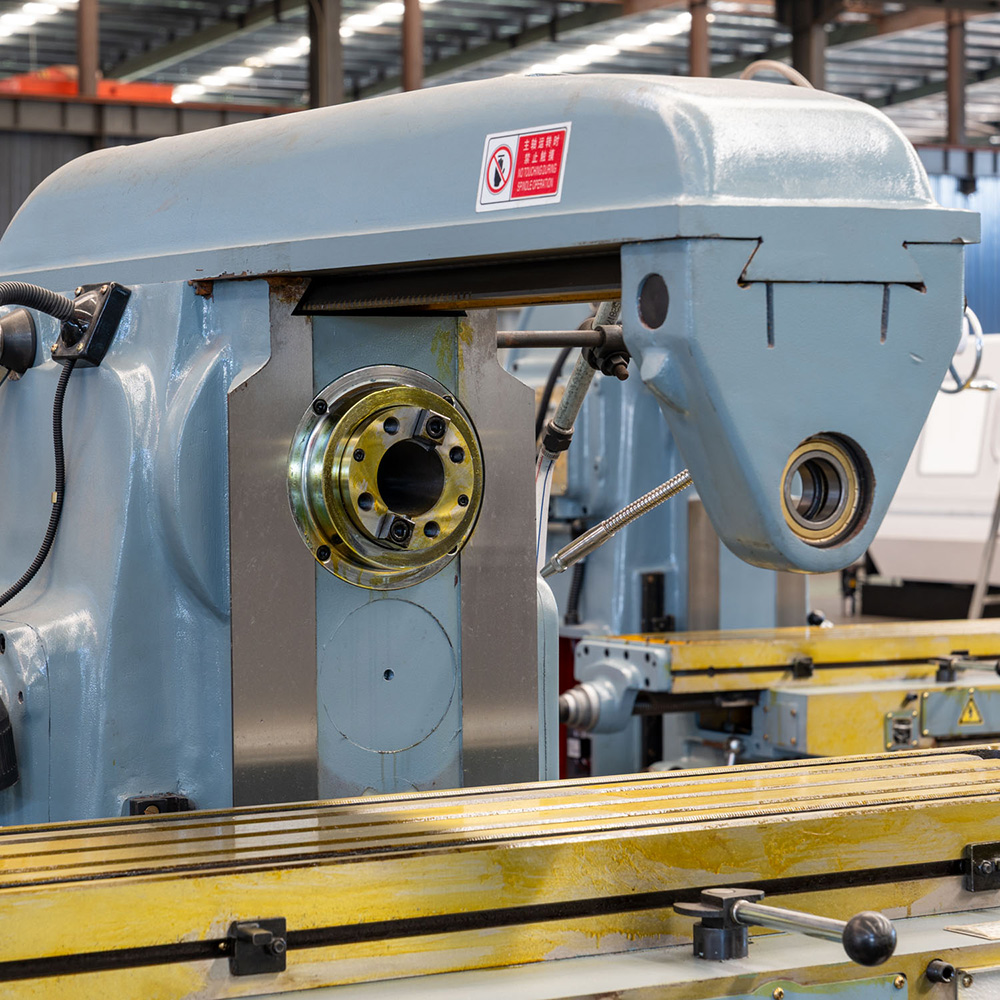

Different materials naturally demand distinct cutting velocities for optimal material removal rates. Therefore, our precision milling equipment offers 18 distinct speed steps ranging from 30 to 1500 revolutions per minute. This extensive speed variation accommodates both aggressive roughing passes and delicate final finishing operations. The reliable spindle configuration guarantees excellent power transmission during heavy workloads. Operators can quickly select the precise RPM needed to achieve flawless results across numerous metal and alloy types.
Creating intricate molds requires equipment capable of holding extremely tight tolerances consistently. Our heavy duty milling machine perfectly addresses these precise shaping needs within the tooling sector. Machinists frequently utilize the machine to process keyways, T-slots, and complex contour surfaces on hardened steel blocks. The dependable accuracy ensures that the resulting mold cavities meet exact client specifications flawlessly. Incorporating our machinery into your toolroom directly elevates the overall quality of your finished tooling projects.
The automotive sector demands rapid, repeatable machining processes for various mechanical parts. Facilities often deploy our horizontal milling machine to produce gear components, spline shafts, and engine block surfaces. The high table load capacity easily supports bulky automotive castings securely during aggressive milling cycles. By leveraging the strong spindle torque, manufacturers drastically reduce cycle times for critical vehicle components. Consequently, your production lines maintain steady output rates while adhering to strict quality control standards.
Partnering with an experienced machinery provider ensures you receive continuous technical support and dependable hardware. Our modern factory strictly oversees every manufacturing phase to guarantee superior machine tool performance. We understand the specific production challenges faced by large-scale metalworking enterprises today. By choosing our customized industrial solutions, you gain access to durable equipment backed by professional engineering expertise. We consistently deliver valuable machining assets that optimize your operational workflow and drive long-term business growth.
The worktable securely supports a maximum load of 500 kg during standard machining operations.
Our worktable includes 3 precision-machined T-slots, measuring 18 mm in width, spaced 70 mm apart.
The spindle operates effectively between 30 and 1500 r/min across 18 selectable speed steps.
Yes, the built-in worktable conveniently swivels up to +45 degrees for specialized angular machining tasks.
