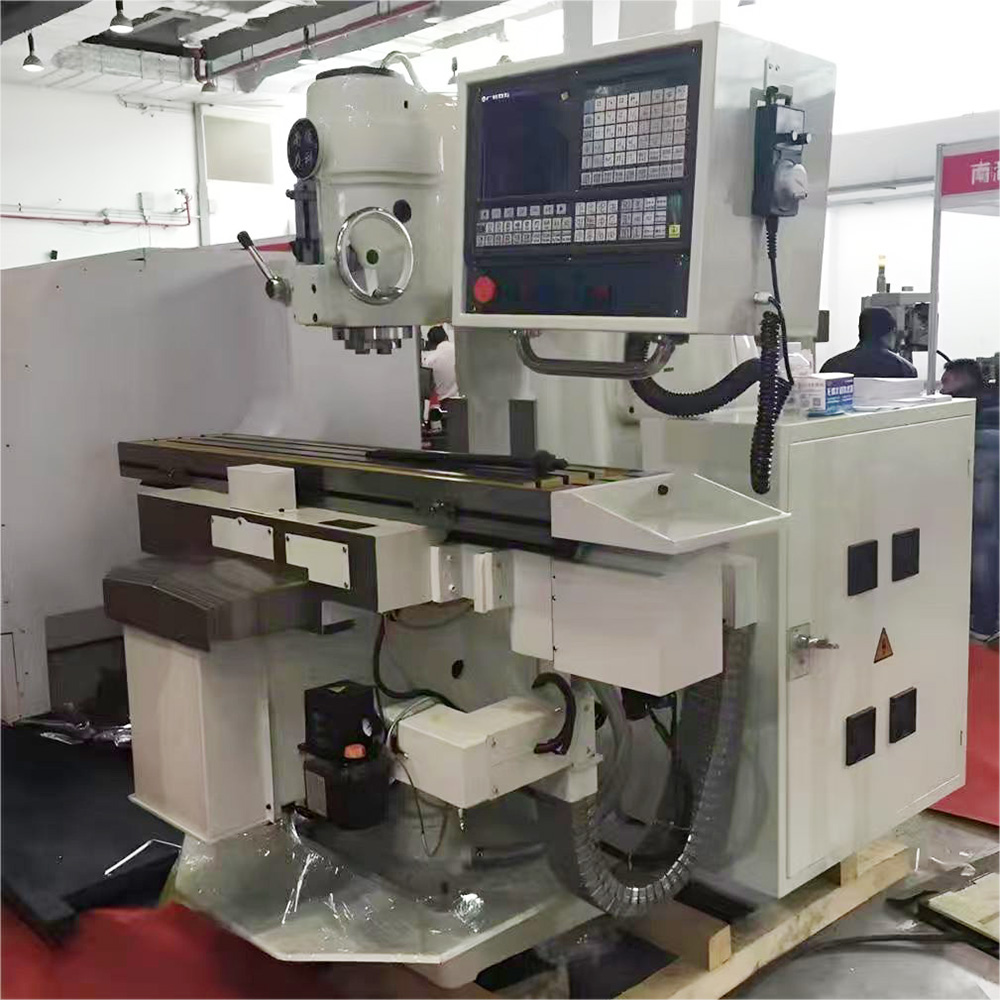

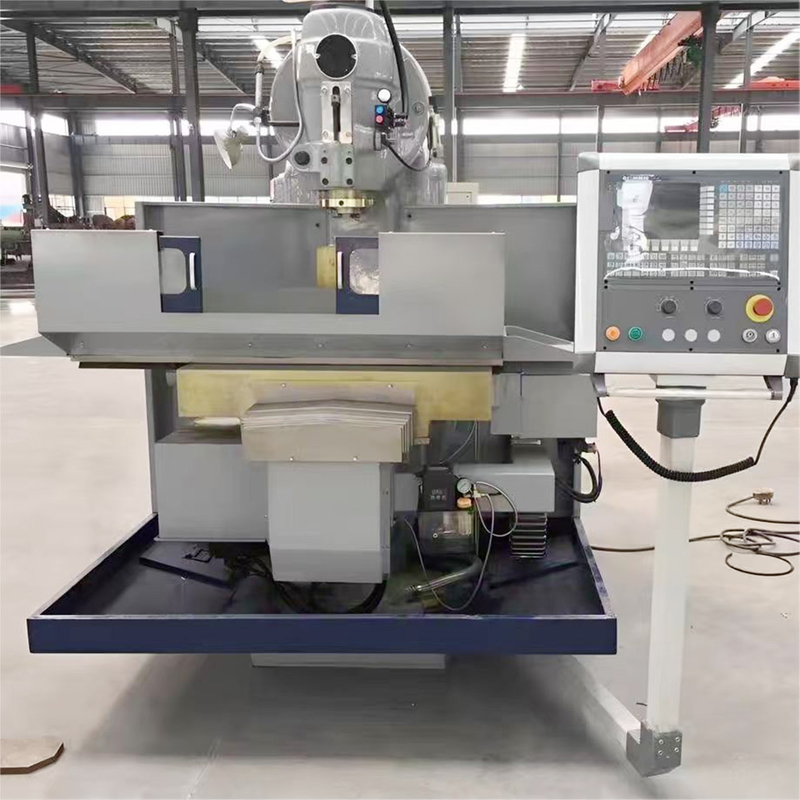

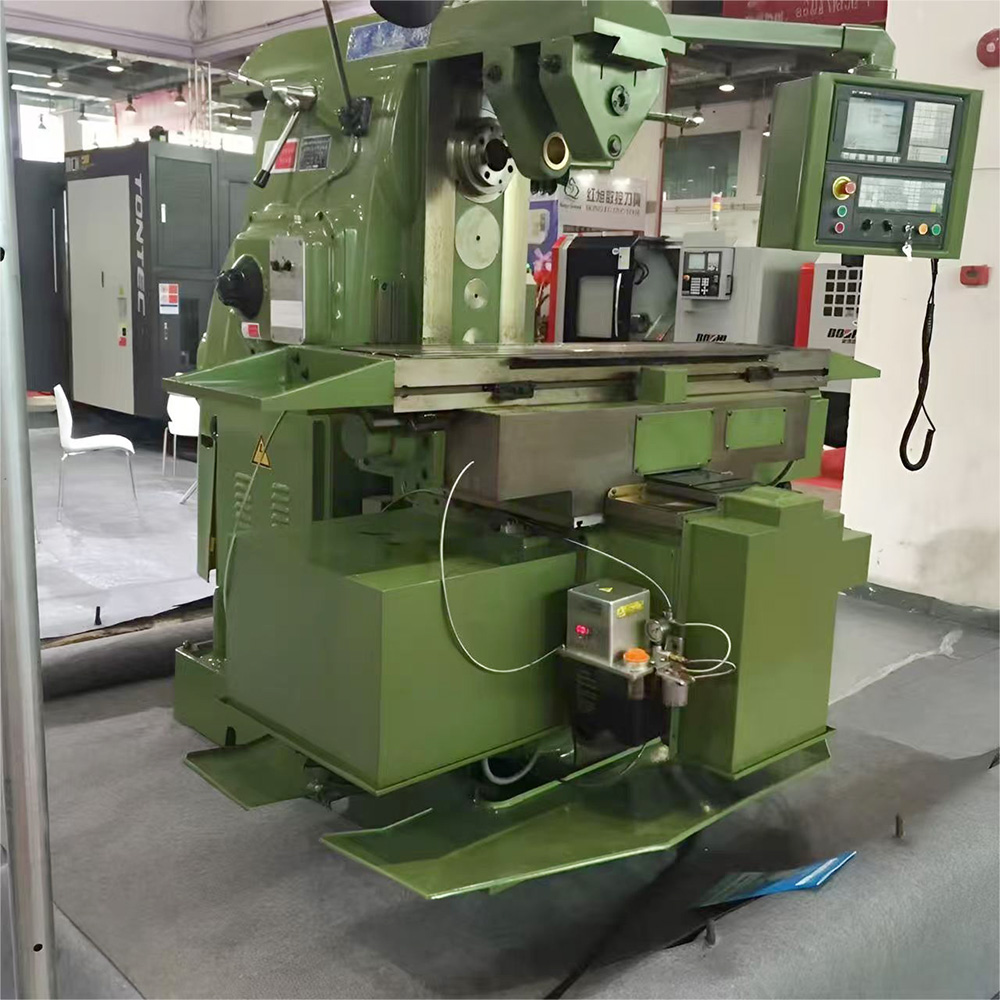

X5032 X5040 Vertical Milling Machine

Product Overview Of Vertical Milling Machine

The X5032 vertical mill and X5040 series represent top-tier mechanical solutions engineered for exceptional metal cutting performance. These robust machines handle rigorous industrial applications with remarkable stability. Featuring a highly durable construction, the equipment effortlessly accommodates heavy workloads while maintaining exacting tolerances. Industrial enterprises consistently rely on this heavy duty vertical milling machine for versatile material processing requirements. Built with advanced transmission mechanisms, it guarantees seamless operation across diverse manufacturing environments. Our facility ensures each unit meets strict quality benchmarks before dispatch.

Product Parameters Of Vertical Milling Machine

Product Key Features Of Vertical Milling Machine

Exceptional Table Load and Working Surface

The expansive working table provides a substantial surface area to anchor large-scale industrial components. For the X5032 model, operators utilize a 320x1250 mm space supporting up to 500 kg. The X5040 variant expands operational capability with up to 400x2000 mm dimensions and an 800 kg maximum load limit. Three precision-machined 18mm T-slots guarantee reliable workpiece fixation during aggressive cutting cycles. This superior structural integrity ensures vibration-free operations even when handling massive parts in demanding fabrication shops.

High-Performance Spindle and Speed Mechanics

Equipped with a standard ISO 50 spindle taper, this industrial milling equipment delivers formidable torque for deep material removal. The system features an impressive speed range from 30 to 1500 r/min, adjustable across eighteen distinct steps for optimal machining versatility. A unique capability is the maximum swivel angle of ±45 degrees, allowing operators to execute complex angled cuts with flexibility. The robust 7.5 kw or 11 kw spindle motor guarantees consistent power delivery under heavy mechanical stress.

Advanced Feed Rates and Axis Travel

Rapid and precise movement is central to the efficiency of this metal cutting machine. The equipment features a highly responsive cutting feed rate ranging from 23.5 to 1180 mm/min on the X and Y axes. For rapid positioning, the table achieves up to 2300 mm/min, drastically reducing non-productive setup times between distinct machining phases. Generous travel distances, reaching up to 1200 mm longitudinally, accommodate elongated workpieces without constant repositioning. A dedicated feed motor ensures smooth axis transitions.

Product Uses Of Vertical Milling Machine

Versatile Industrial Metal Processing

This machinery excels in executing intricate cutting operations across diverse metallic materials including steel, cast iron, and specialized alloys. Operators frequently deploy the equipment to produce flat surfaces, angled grooves, and precision slots with high surface finish quality. The robust architecture makes it perfectly suited for mold making, automotive parts manufacturing, and general structural fabrication. By leveraging the adjustable spindle head, machinists can transition between vertical and angled milling without changing the primary workpiece setup.

High-Volume Component Manufacturing

Designed for sustained operational endurance, the system integrates seamlessly into continuous production lines requiring repetitive accuracy. Tooling changes are swift, enabling facilities to maintain aggressive production schedules while minimizing costly machine downtime. The generous table dimensions allow for multi-part fixturing, further amplifying overall workshop output and operational efficiency. Many commercial enterprises integrate this high precision vertical mill to scale their production capacities while maintaining strict adherence to client engineering blueprints.

Why Choose Us For Vertical Milling Machine

Decades of Engineering Excellence

Located in the industrial hub of Nantong, Jiangsu, our enterprise stands as a prominent pillar in East China's machinery manufacturing sector. We meticulously engineer every piece of equipment to ensure maximum longevity and operational safety for all your metal milling solutions. Our dedicated technical teams leverage advanced fabrication techniques to deliver machinery that consistently outperforms conventional market alternatives. Global partners recognize our commitment to providing reliable industrial solutions that elevate their foundational manufacturing capabilities.

Comprehensive Commercial Support

Beyond delivering superior hardware, we provide extensive technical assistance to guarantee optimal machine integration. Our dedicated service infrastructure ensures clients receive rapid responses to operational inquiries and specialized configuration requests. By focusing heavily on long-term equipment reliability, we help enterprises minimize their total cost of ownership over the machinery's entire lifecycle. We prioritize building enduring commercial relationships anchored in trust, mutual growth, and consistent technological innovation.

FAQ Of Vertical Milling Machine

What is the maximum table load capacity?

The X5032 model safely accommodates up to 500 kg, while the X5040 model handles heavier workpieces up to 800 kg.

What spindle taper does the equipment use?

Both machine variants utilize a highly robust and standardized ISO (7:24) No.50 spindle taper for secure tooling.

How fast can the spindle rotate during operations?

The system provides eighteen distinct speed steps, delivering a broad operational range from 30 to 1500 r/min.

What is the maximum swivel angle of the spindle?

The vertical spindle is uniquely engineered to achieve a maximum swivel angle of ±45 degrees for versatile machining.

What are the motor power specifications?

The X5032 utilizes a 7.5 kw spindle motor, whereas the X5040 is equipped with a powerful 11 kw spindle motor.
