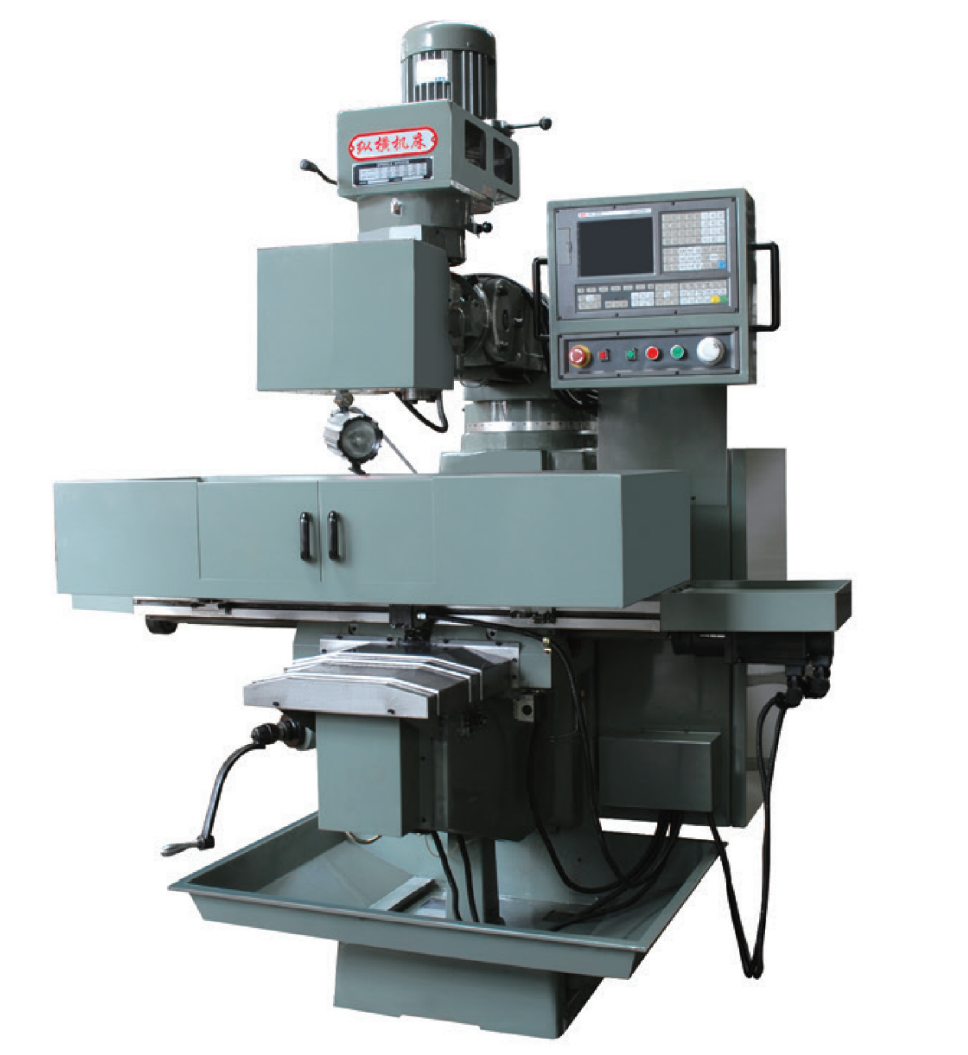

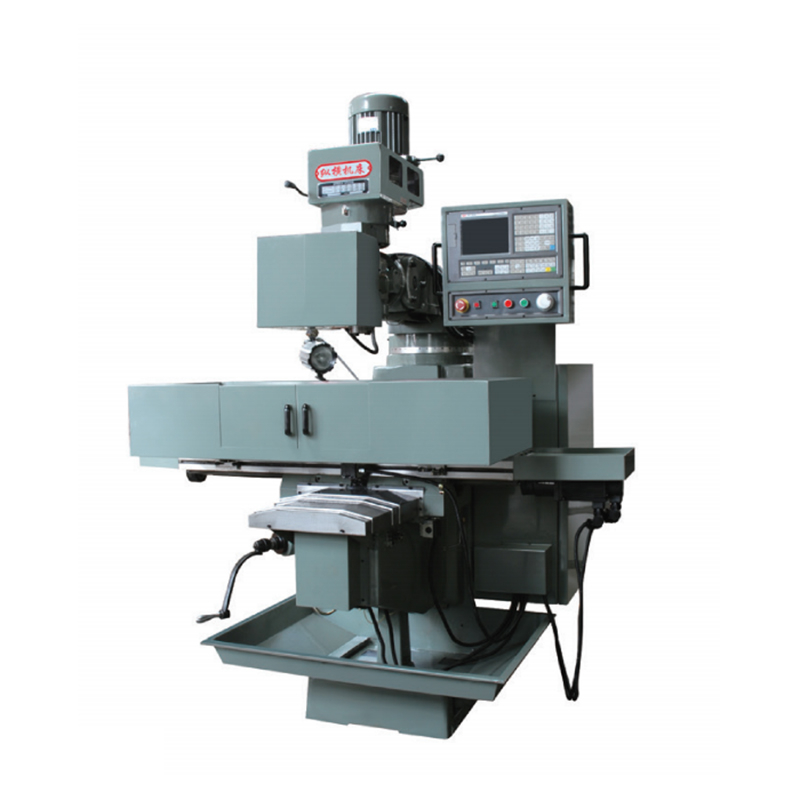

Our CNC milling machine series represents a highly capable industrial solution designed for rigorous and demanding machining operations. Delivering exceptional stability, this equipment caters to modern production lines prioritizing consistent output and absolute reliability. Built with a strict focus on structural integrity, our milling solutions support continuous operation across varied commercial and industrial applications. This specialized machinery ensures superior output quality, perfectly addressing the strict tolerances required in heavy-duty manufacturing environments without compromising on processing speed.
| Project | Unit | CNC4M | CNC5M |
| Main Motor Power | KW | 1.8 | 2.2 |
| Spindle Taper | R8 | R8 | |
| Spindle Pipe Diameter | mm | 85.725 | 85.725 |
| Spindle Speeds | rpm | 50Hz 65–4500 | 50Hz 65–4500 |
| 60Hz 80–5440 | 60Hz 80–5440 | ||
| T-slots（Width × Number of grooves × Groove spacing） | 60×3×65 | 60×3×70 | |
| Working Table Size | mm | 1270×254 | 1370×305 |
| X-stroke | mm | 700 | 750 |
| Y-stroke | mm | 360 | 380 |
| Spindle quill travel | mm | 95 | 95 |
| Spindle End To Table Surface | mm | 400 | 420 |
| Spindle End To Table Surface | mm | 0–400 | 0–450 |
| X/Y/Z Rapid Moving | m/min | 2005/5/3 | 2005/5/3 |
| Servo Motor Parameters | 6N.m / 6N.m / 6N.m | ||
| Accuracy | Positioning accuracy0.02,Repeat positioning accuracy0.01 | ||
| （XYZ）Guide rail Shape | ▲■▲ | ▲■■ | |
| Mechanical load | kg | 300 | 400 |
| Machine Dimensions（L×W×H） | mm | 1730×1700×2150 | 2030×1800×2300 |
| Net Weight | kg | 1400 | 1600 |
| CNC system（Optional features） | KND/GSK CNC | ||
Using the Taiwan advanced CNC milling head, strong cutting force, high rigidity, high efficiency, precision and durability are consistently maintained throughout operations. This specialized component empowers our equipment to tackle complex materials effortlessly while keeping thermal expansion minimal. Operators directly benefit from enhanced spindle performance and sustained stability during intensive, long-duration cutting cycles. Such integration seamlessly translates to optimized cycle times and superior surface finishes on the final machined components.
The machine adopts high quality Meehanite casting to form its fundamental base and structural components. This premium material selection guarantees excellent vibration damping characteristics, which are essential for high-precision operations in busy workshops. By utilizing this advanced casting technology, we ensure the equipment maintains structural stability even under extreme machining stresses. The resulting rigidity significantly minimizes thermal deformation, preserving critical geometric accuracy throughout extended daily production shifts.
Three axis adopts the grinding ball screw to facilitate smooth and highly accurate positional movements across all operations. This precision-engineered transmission system drastically reduces mechanical friction and eliminates backlash during multi-directional travel paths. Consequently, our equipment delivers precise contouring and exacting tolerances across the X, Y, and Z axes without hesitation. This mechanical setup significantly enhances overall machine responsiveness, supporting intricate part profiles with outstanding repeatable accuracy.
Guide rail of machine tool and the work table surface through heat treatment hardening high abrasion resistance, ensure the machining accuracy. This rigorous treatment process dramatically extends the lifespan of the critical load-bearing surfaces on the equipment. The hardened structure successfully resists wear from constant friction, maintaining exact geometric precision over many years of heavy service. Your operational efficiency is comprehensively safeguarded by this durable foundation, practically reducing unexpected maintenance downtime.
This highly precise equipment is widely used in mold manufacturing, delivering the exact internal geometries required for complex tooling. Our machinery effortlessly handles the tough alloys typical in mold production, ensuring flawless surface finishes that meet strict industry benchmarks.
For automotive parts, the robust cutting capabilities allow for the rapid and precise fabrication of crucial engine components and structural fittings. It provides the exact consistency demanded by strict vehicular safety regulations and large-scale assembly line standards.
In military aerospace applications, the unwavering structural stability of our machines guarantees strict adherence to extremely tight tolerances. This reliability is absolutely crucial when crafting lightweight yet highly resilient aviation parts from advanced specialty materials.
Adhering to the corporate spirit of manufacturing excellence and pursuing excellence, our enterprise operates with a steadfast commitment to technological innovation. Located in Nantong, Jiangsu, we have established a large-scale manufacturing infrastructure equipped with advanced three-coordinate measuring instruments and rigorous testing systems. This foundation enables us to maintain strict cost control while delivering high-quality, reliable machinery to a diverse clientele.
We have established a comprehensive global service network, actively exporting our reliable solutions to Southeast Asia, the Middle East, Europe, and the Americas. Our strong order-taking ability is strategically paired with fast delivery protocols to consistently enhance customer satisfaction. We provide expertly customized machine tool solutions and swift technical support to resolve operational challenges promptly and efficiently.
The machine adopts high quality Meehanite casting to ensure maximum rigidity and excellent vibration damping during operation.
The guide rail of the machine tool and the work table surface undergo heat treatment hardening to provide high abrasion resistance.
The three axes adopt the grinding ball screw system to guarantee highly precise and smooth positional movements.
We are able to provide customized machine tool solutions according to the special needs of specific industries such as aerospace, molds, and automobiles.
